Engine Control Module (ECM) & Powertrain Control Module (PCM) Connectors (2.4L C-49 & C-50) & (3.0L C-51 & C-52) Connector End Views

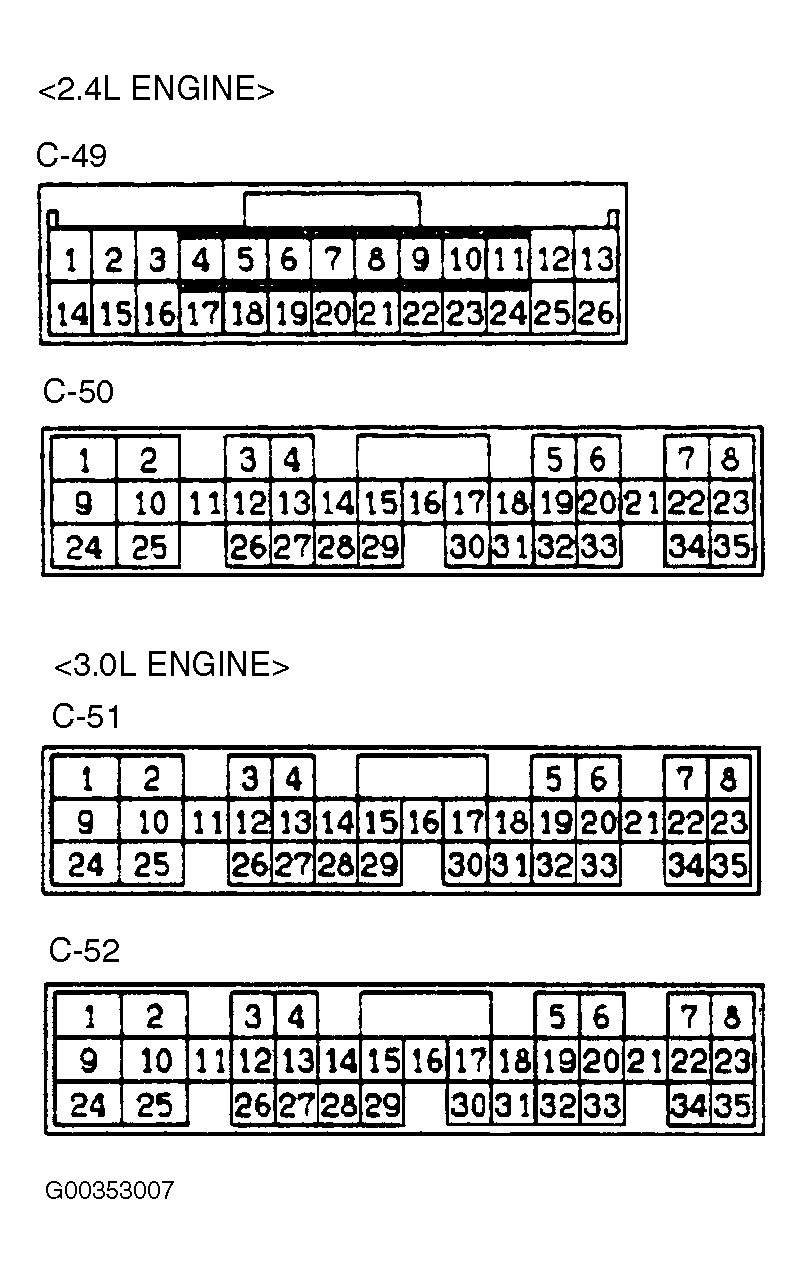

Fig 1: Engine Control Module (ECM) & Powertrain Control Module (PCM) Connectors (2.4L C-49 & C-50) & (3.0L C-51 & C-52) Connector End Views

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
