>> F << CIRCLIP Installation

CAUTION: Insert the circlip to the rack stopper hole while turning the rack stopper clockwise.

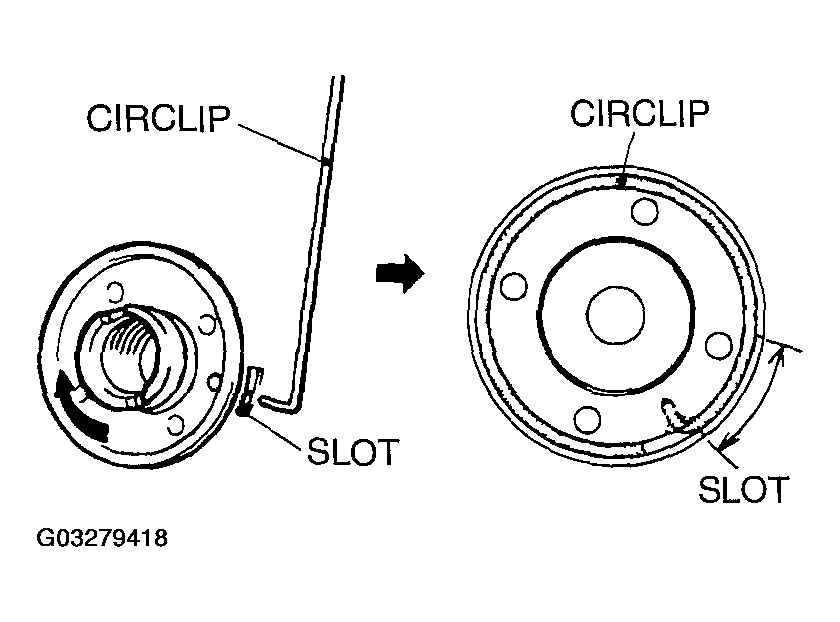

Fig 1: Installing Circlip
G03279418Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Insert the circlip to the rack stopper hole through cylinder hole. Turn the rack stopper clockwise and insert the circlip firmly.
