>>E<< Spring Pin Installation

Drive in the spring pin so that the slit is in the direction shown in the figure.

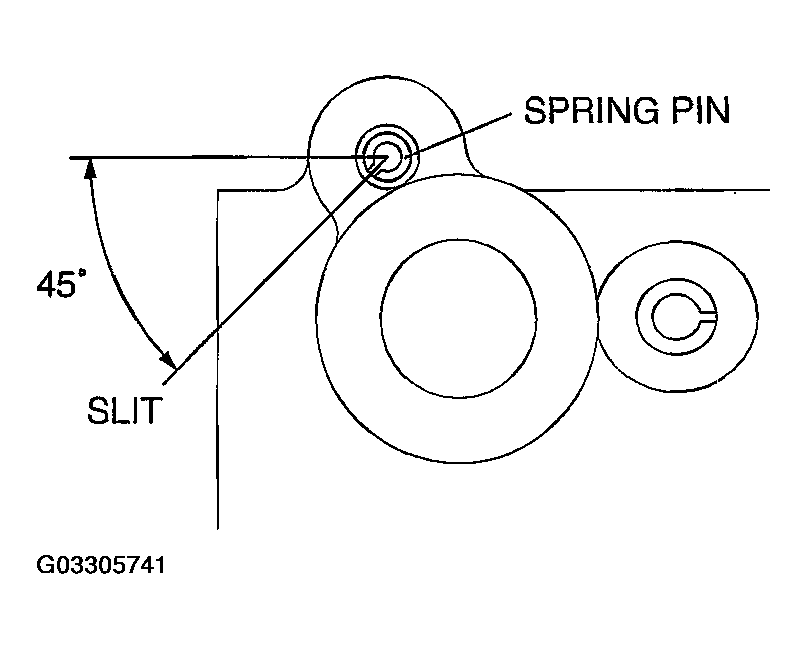

Fig 1: Installing Spring Pin
G03305741Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
