>>D<< Synchronizer Spring Installation

Install the synchronizer spring to the illustrated position of the synchronizer ring and outer synchronizer ring < F5M51>.

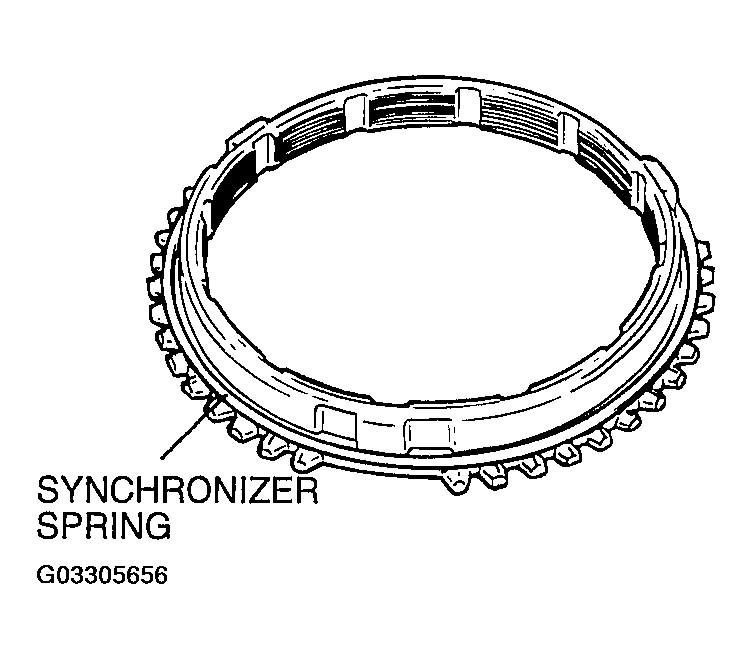

Fig 1: Identifying Synchronizer Spring
G03305656Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

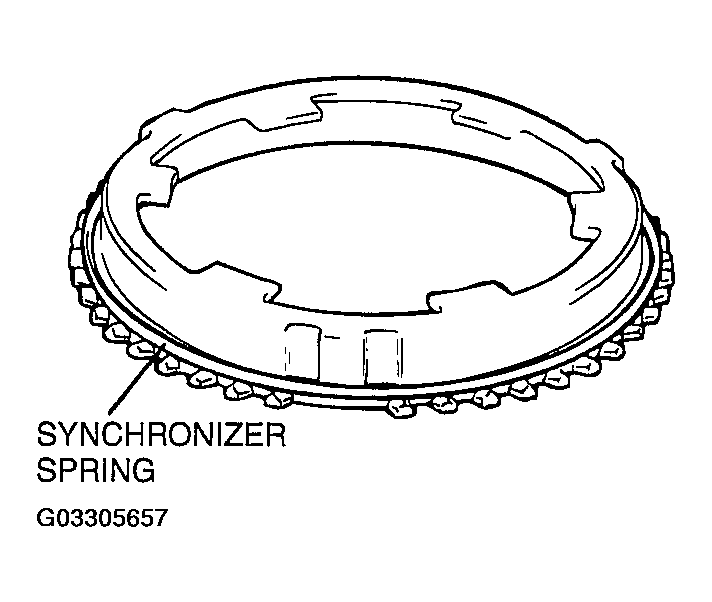

Fig 2: Locating Synchronizer Spring
G03305657Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
