>>M<< Snap Ring Installation

  1. Install the thickest snap ring that can be fitted in the groove of input shaft.
  2. Make sure that the ball bearing end play meet the standard value.

    Standard value: 0-0.12 mm (0 - 0.0047 inch)

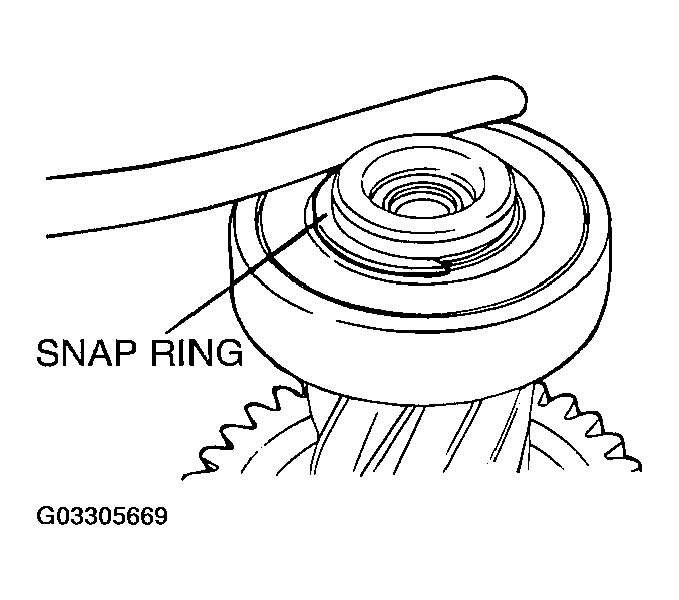

    Fig 1: Checking Ball Bearing End Play
    G03305669Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
