>>G<< 1ST-2ND Speed Synchronizer Hub Installation

1. Set the output shaft on the press support stand.
2. Check that the 1st-2nd speed synchronizer hub is in the correct installation direction, and put it on the output shaft.
3. Using special tools MD998812, MD998814, MD998825 < F5M42>, MD998824 < F5M51> and MD998364 < F5M51>, press install the 1st-2nd speed synchronizer hub with the press.
4. Make sure that the outer synchronizer ring on the 1st speed gear side can rotate freely.

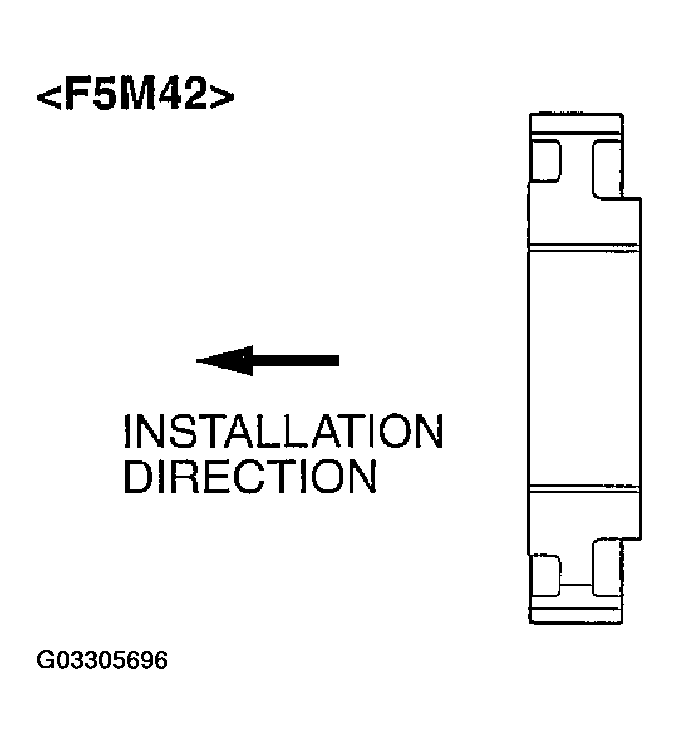

   Fig 1: Checking 1St-2Nd Speed Synchronizer Hub Installation Direction (F5M42)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

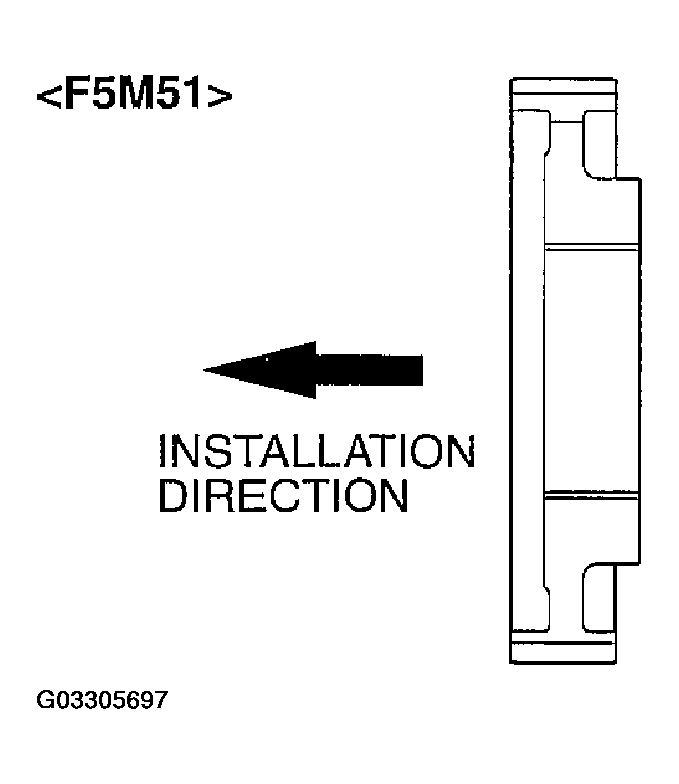

Fig 2: Checking 1St-2Nd Speed Synchronizer Hub Installation Direction (F5M51)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

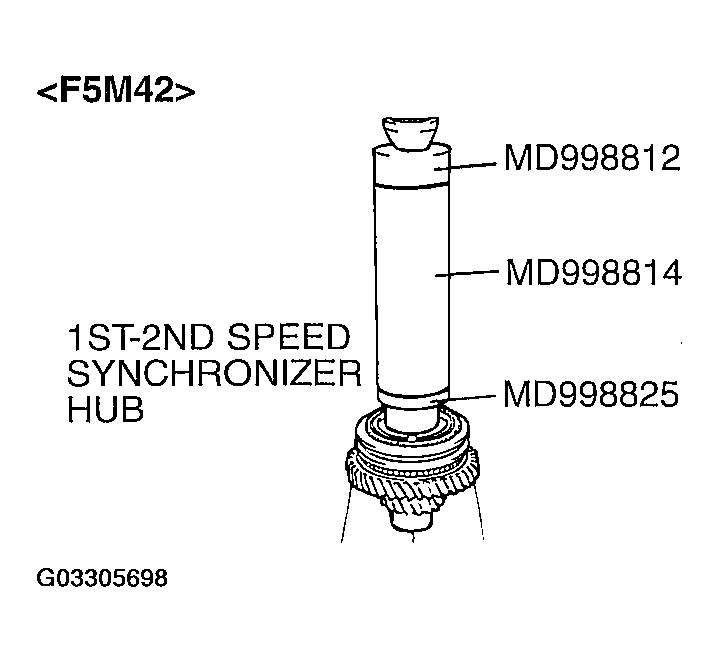

Fig 3: Installing 1St-2Nd Speed Synchronizer Hub (F5M42)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Installing 1St-2Nd Speed Synchronizer Hub (F5M51)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
