Disassembly And Assembly: Notes

< F5M42>

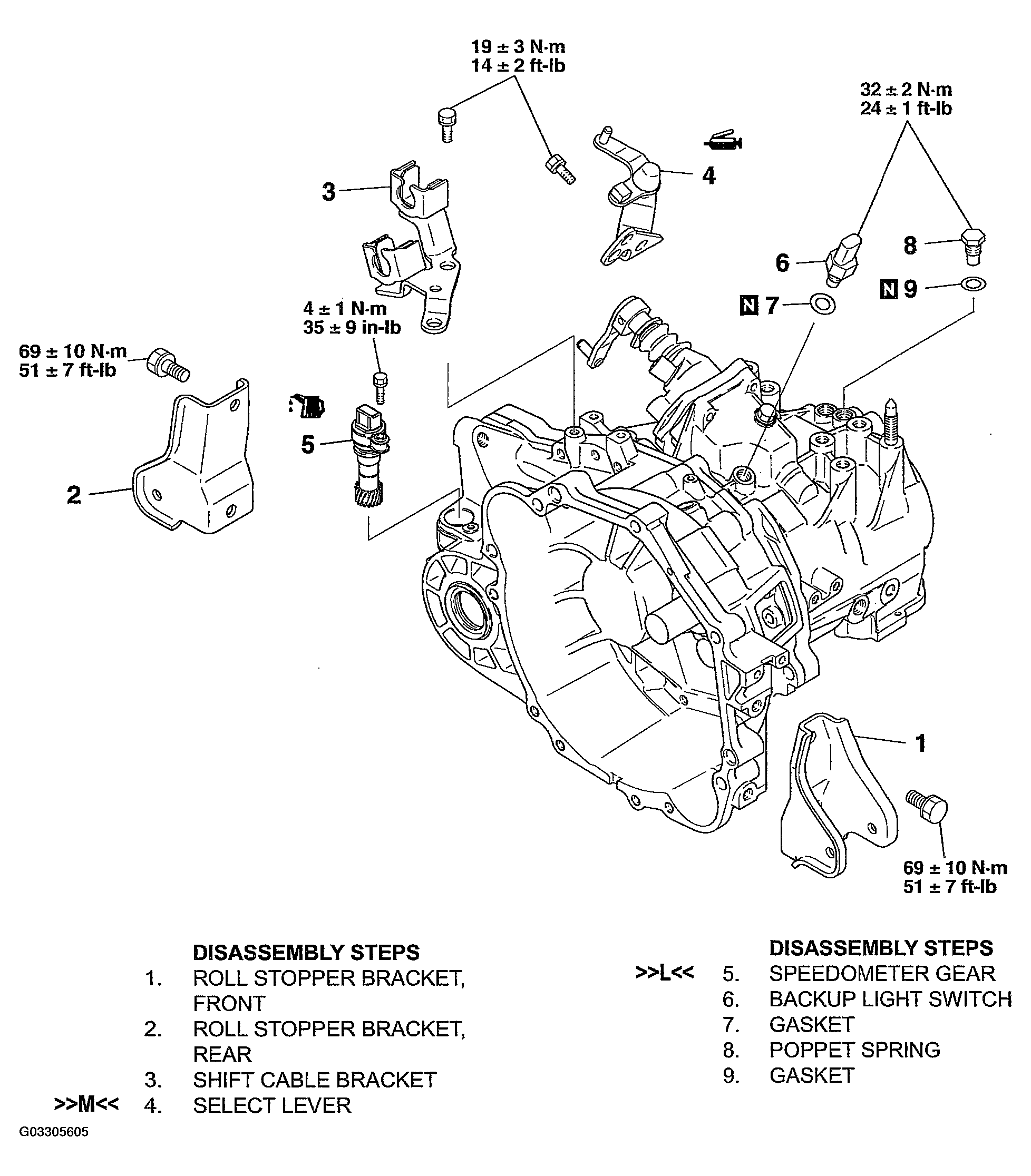

Fig 1: Identifying Disassembly Steps Of Transaxle - F5M42 (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

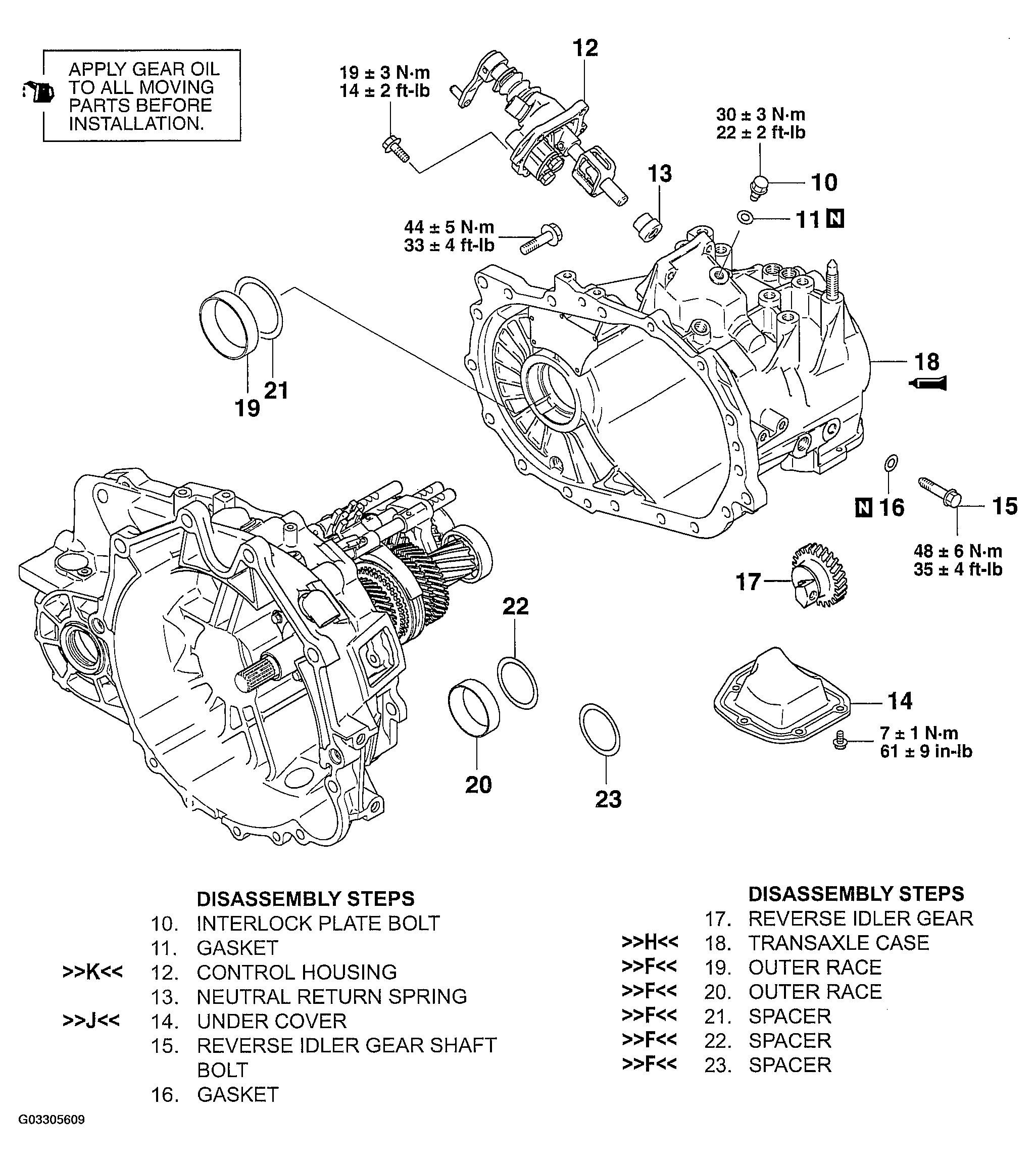

Fig 2: Identifying Disassembly Steps Of Transaxle - F5M42 (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

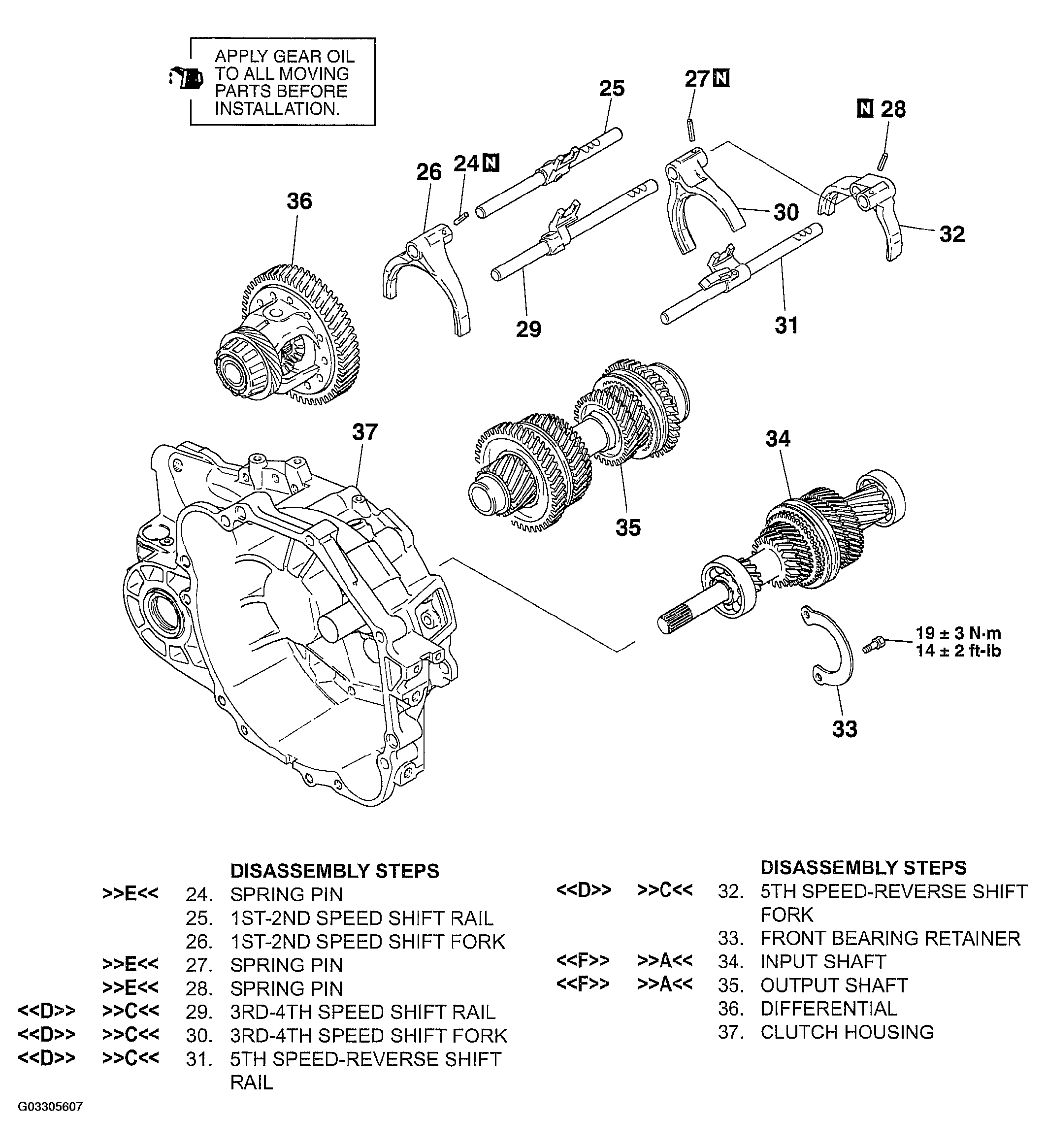

Fig 3: Identifying Disassembly Steps Of Transaxle - F5M42 (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

< F5M51>

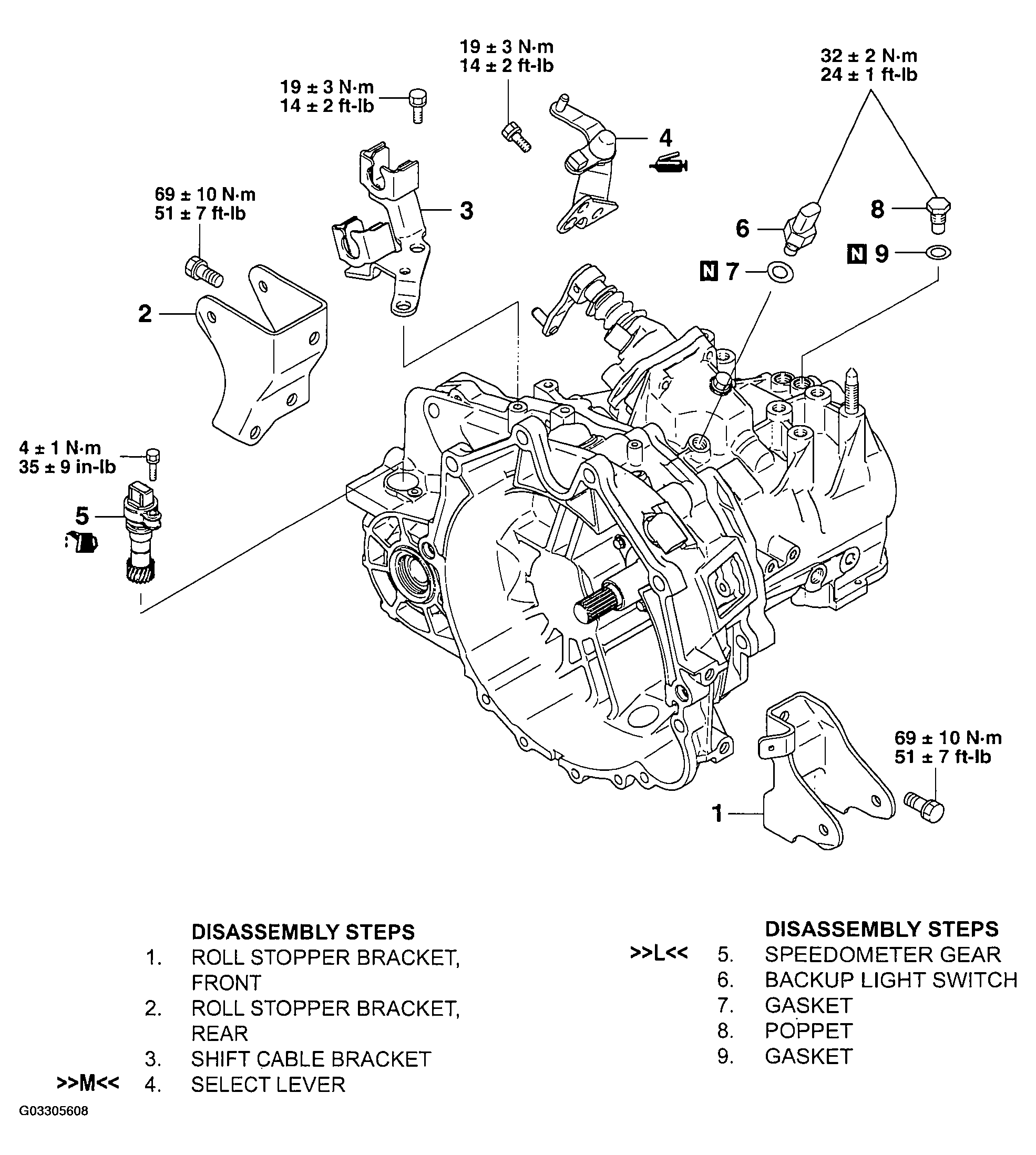

Fig 4: Identifying Disassembly Steps Of Transaxle - F5M51 (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

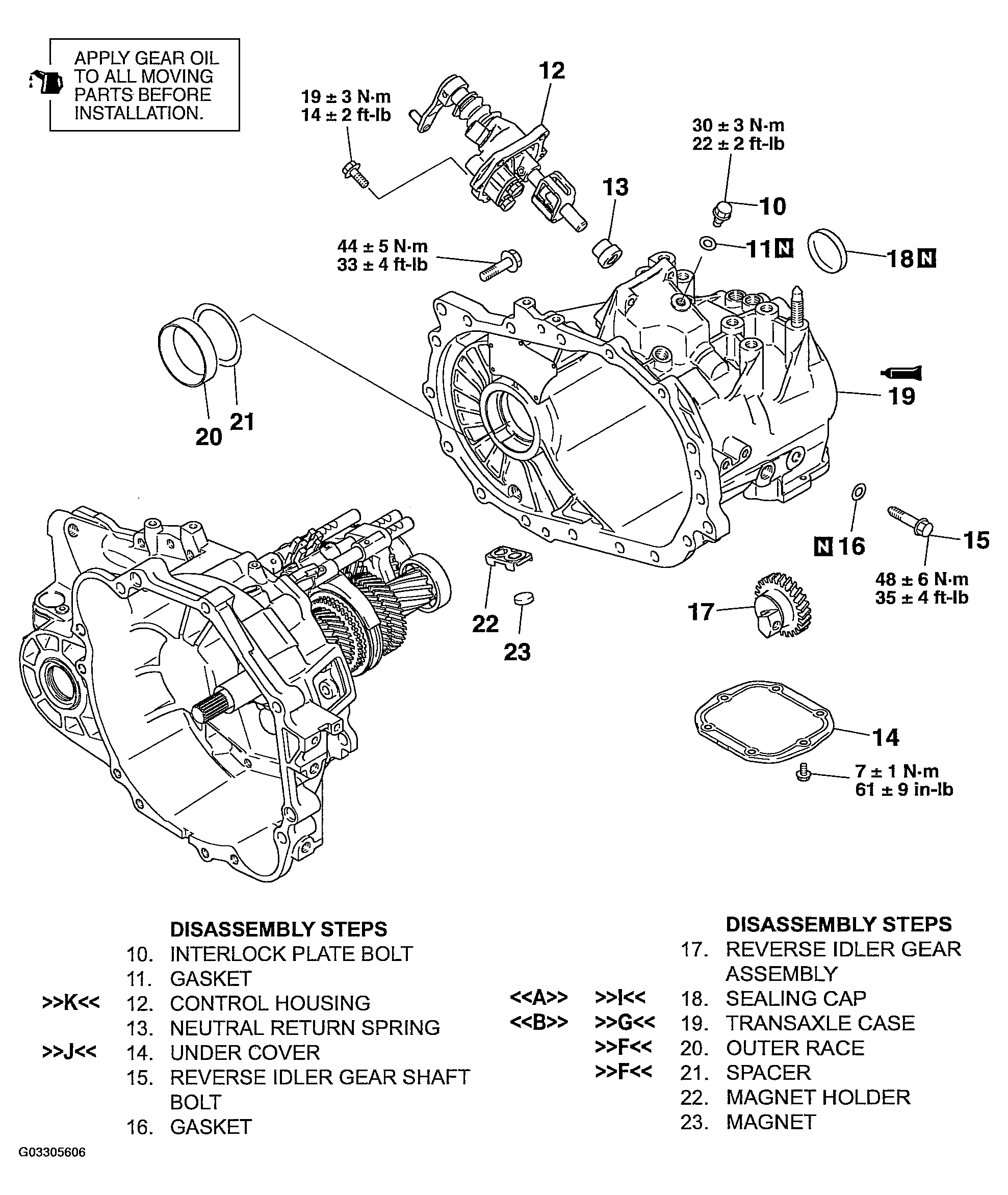

Fig 5: Identifying Disassembly Steps Of Transaxle - F5M51 (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

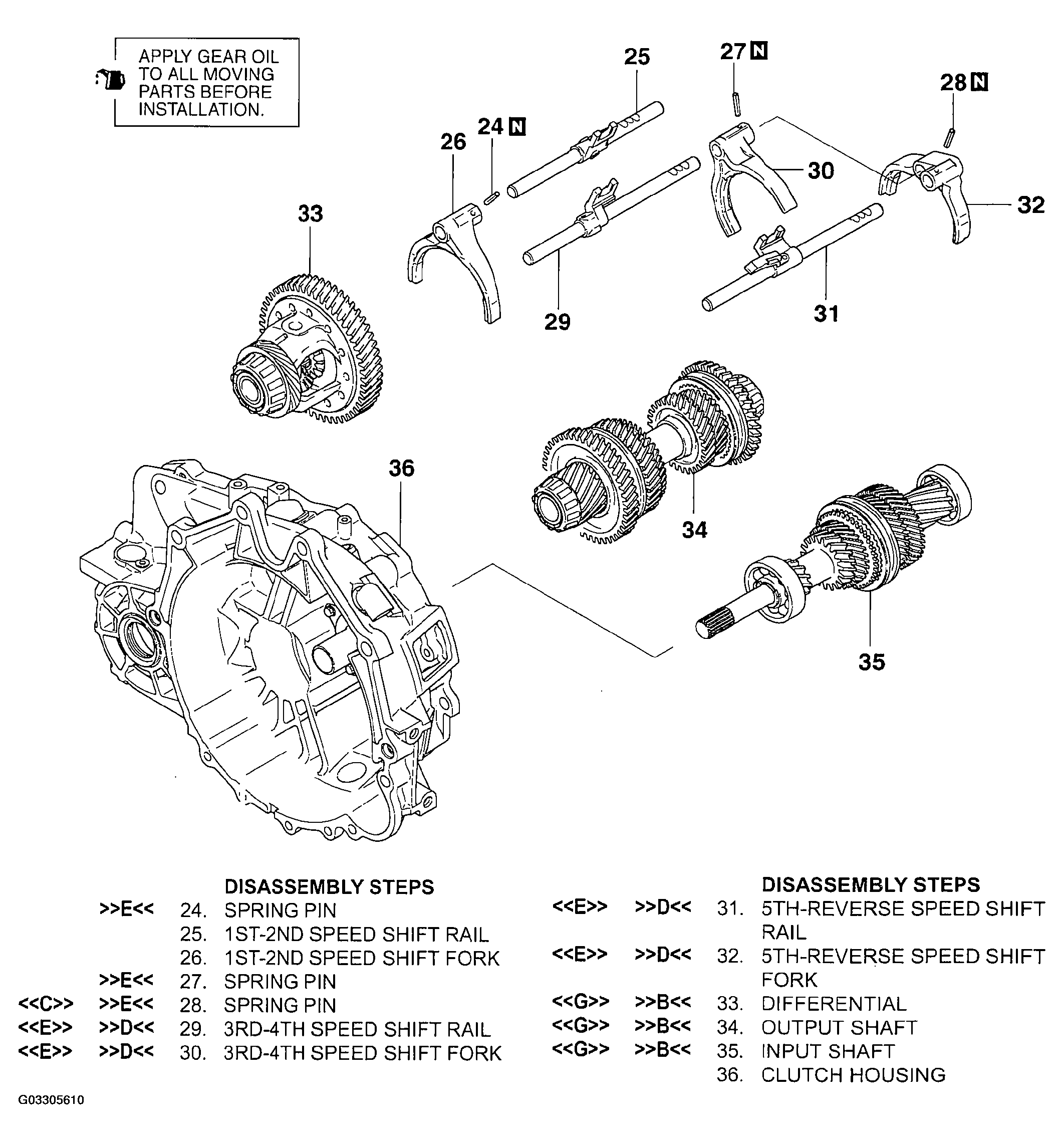

Fig 6: Identifying Disassembly Steps Of Transaxle - F5M51 (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
