>>J<< End Plug Installation

  1. Apply 3MTM AAD Part number 8672, 8679, 8678, 8661, 8663 or equivalent to the threaded part of the end plug.
  2. Secure the threaded portion of the end plug at two places by using a punch.

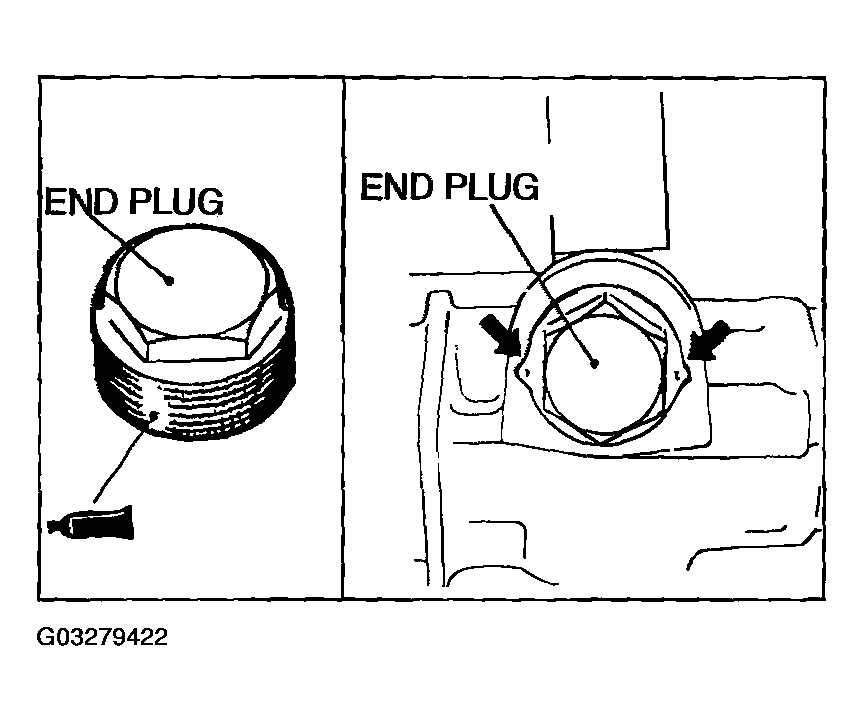

    Fig 1: Installing End Plug
    G03279422Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
