Windshield Wiper And Windshield Washer Switch Input Circuit

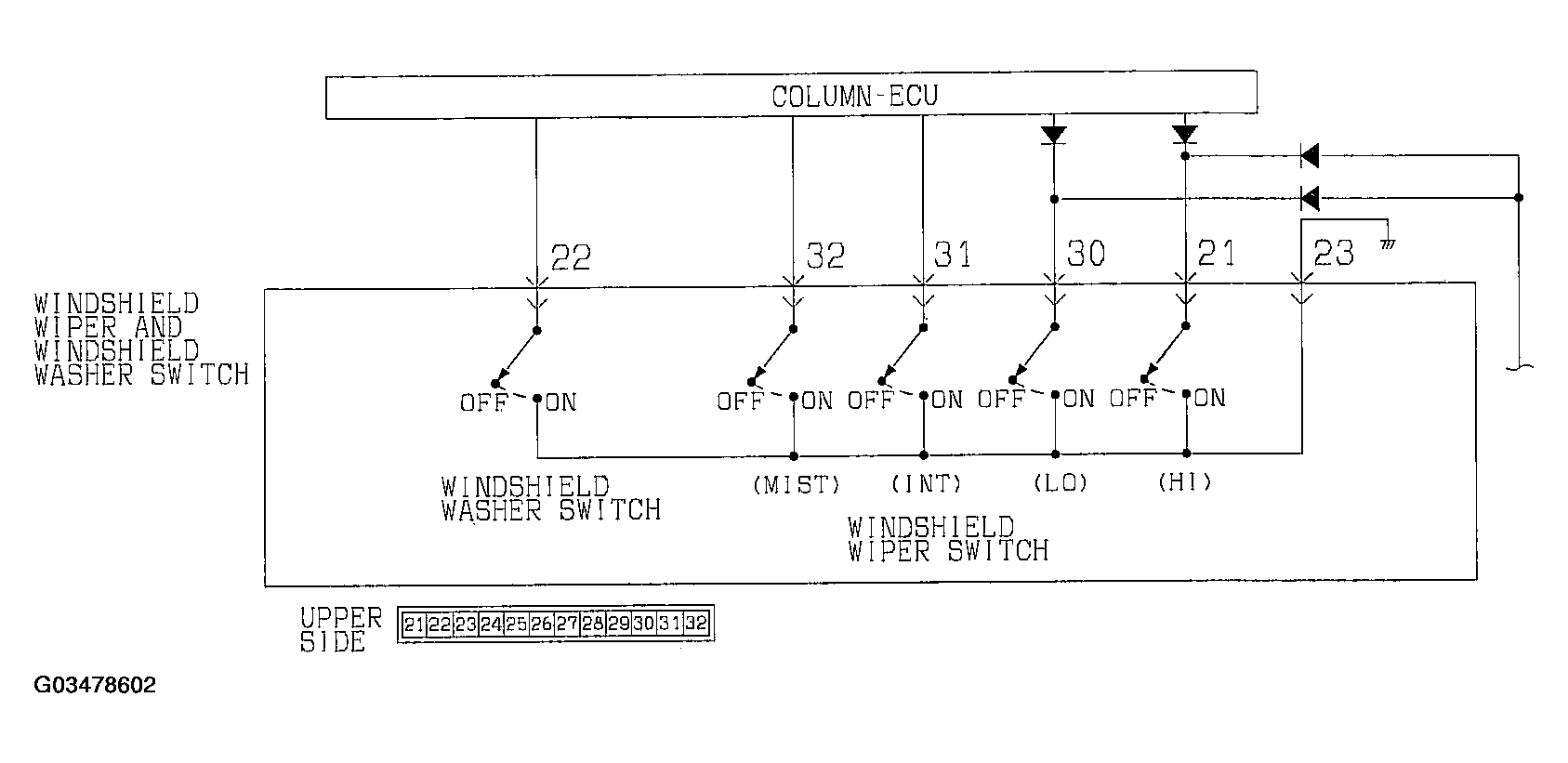

Fig 1: Windshield Wiper And Windshield Washer Switch Input Circuit Diagram
G03478602Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
