Power Window Timer Function

Even after the ignition is switched off, the ETACS-ECU keeps the power window relay activated for approximately 30 seconds, enabling raising and lowering of the power windows by using the power window switches. After approximately 30 seconds, the power window relay is deactivated.

During this timed operation, if the driver or passenger doors are opened, the power window relay is deactivated from that moment.

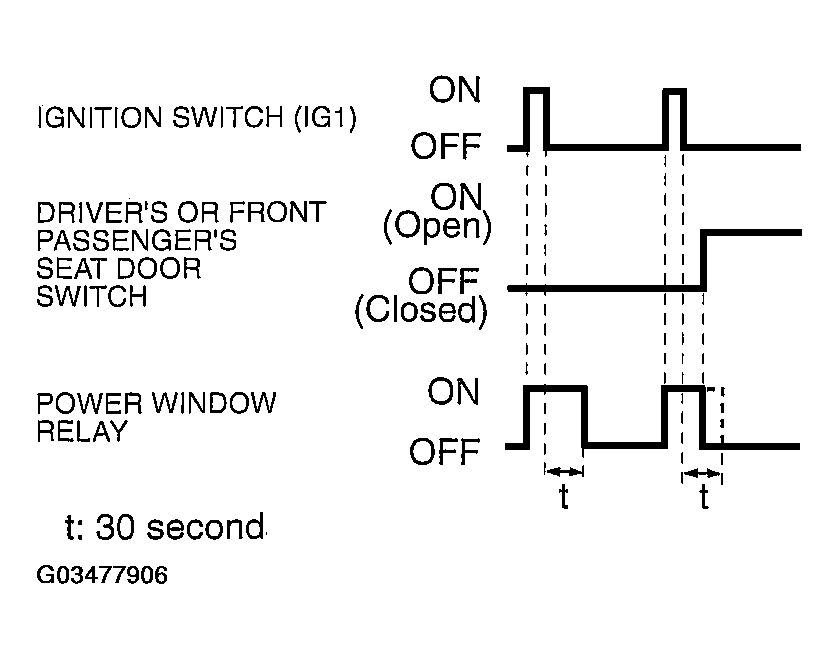

Fig 1: Identifying Power Window Sub Switch Function - Power Window Timer Function

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
