DTC 22: Stoplight Switch System: Notes

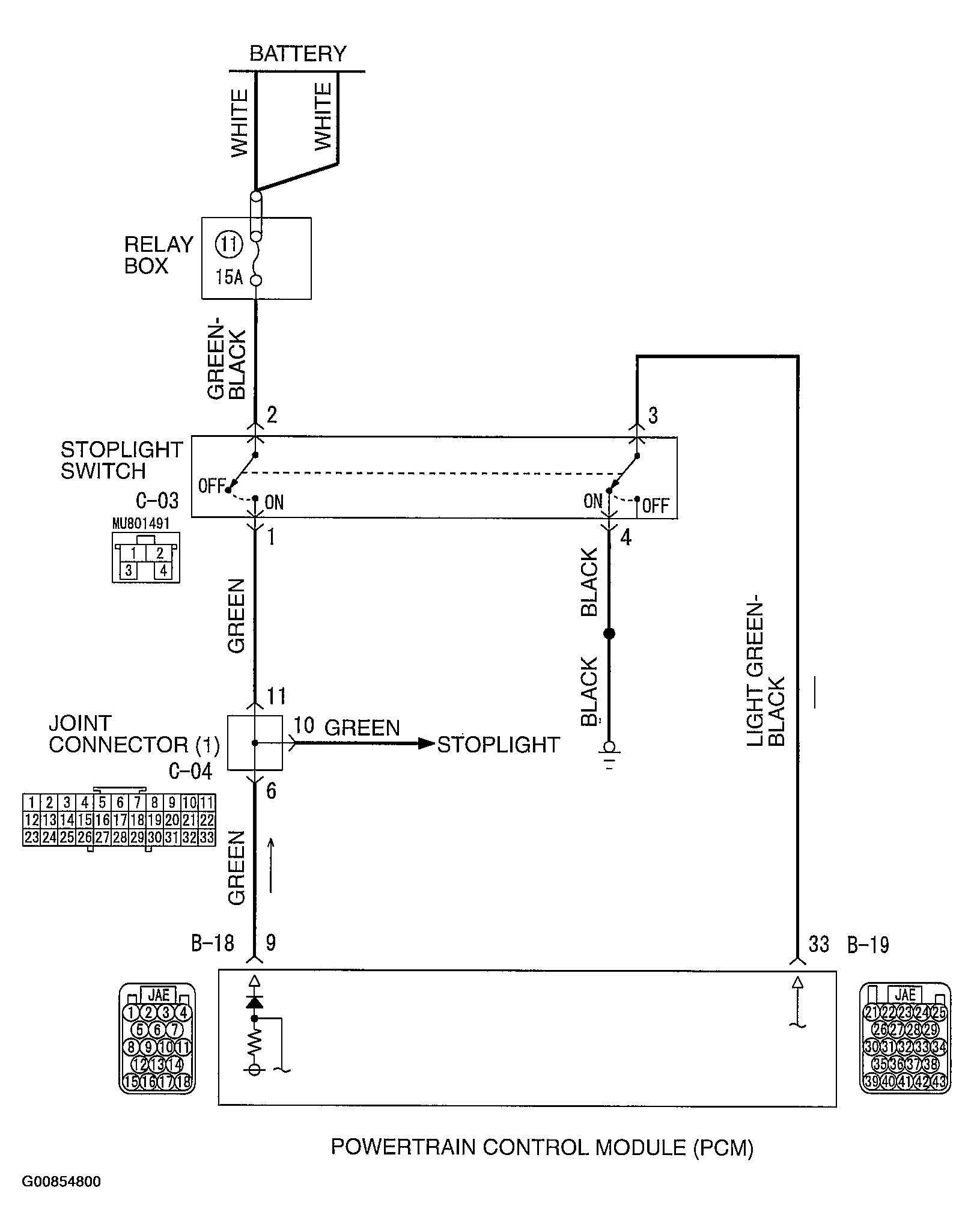

Fig 1: Stoplight Switch System Circuit Diagram
G00854800Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

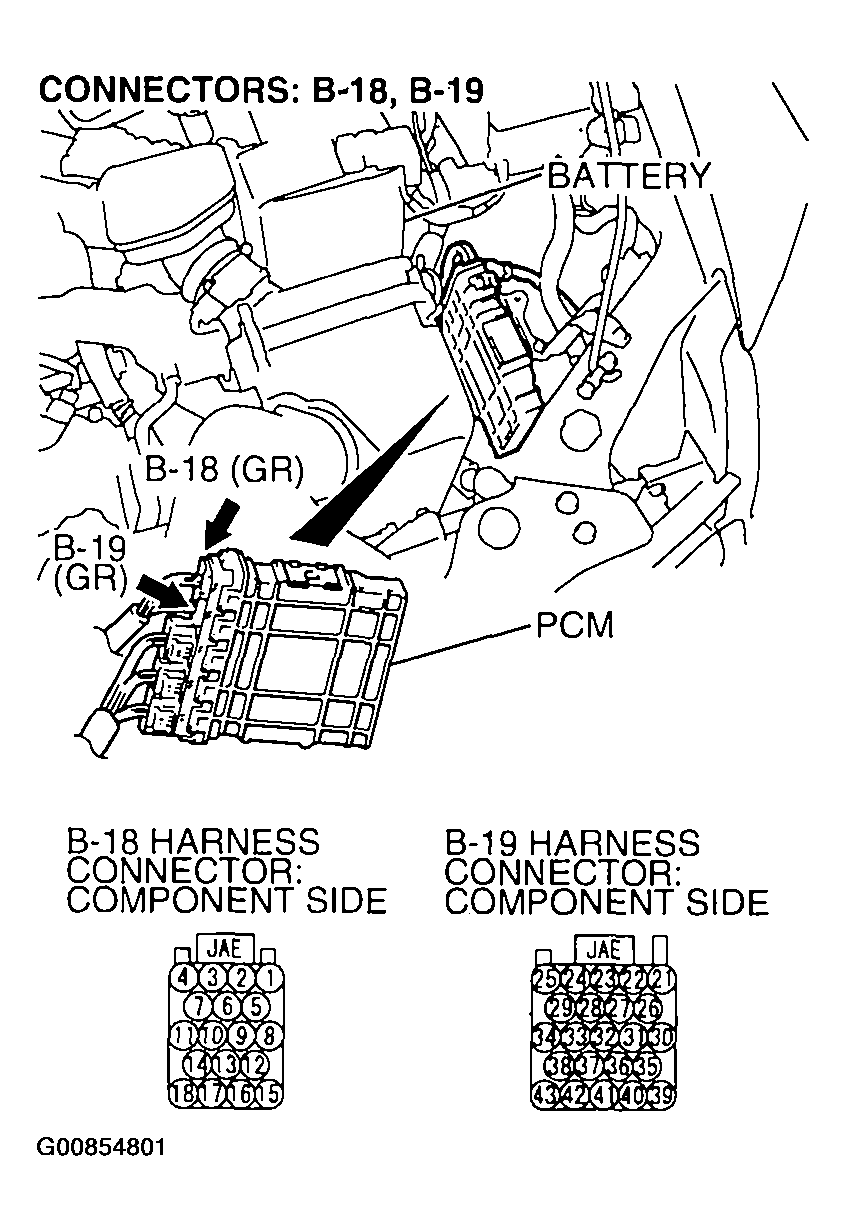

Fig 2: Identifying Connectors B-18 B-19
G00854801Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

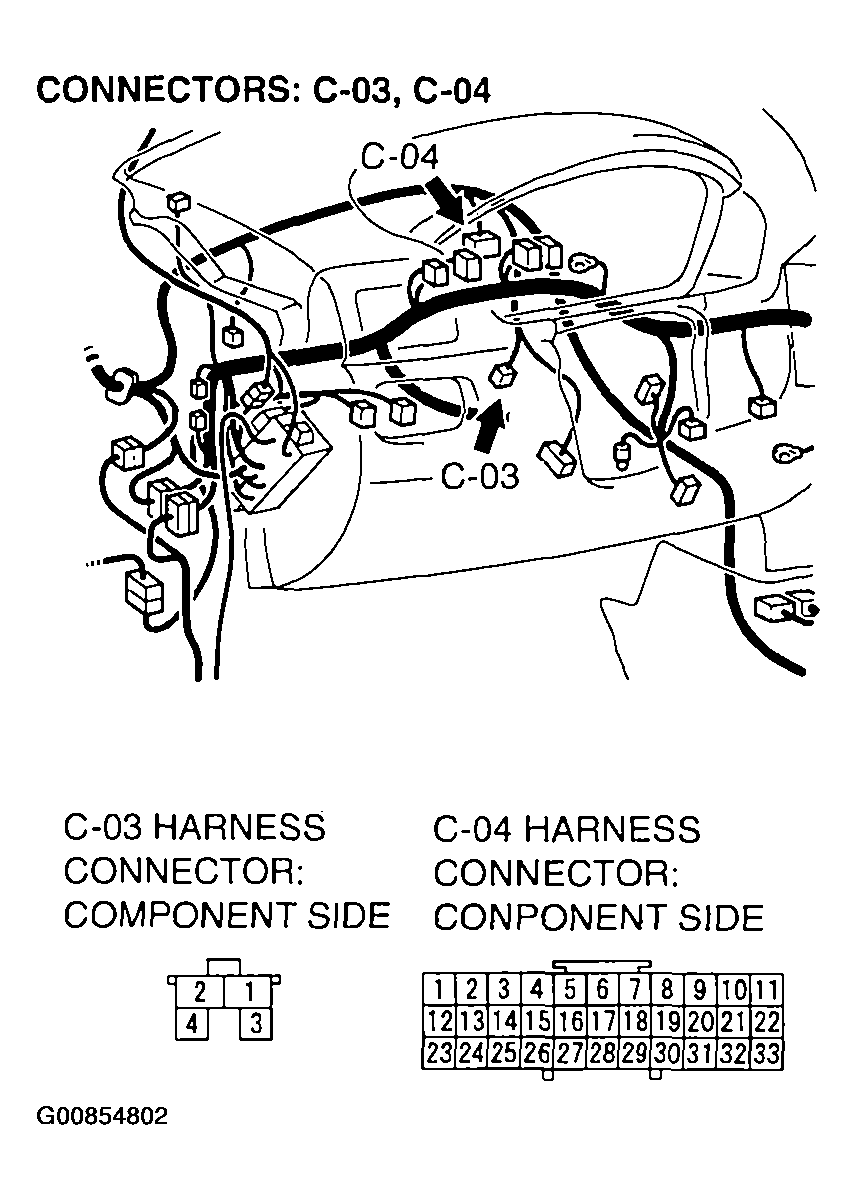

Fig 3: Identifying Connectors C-03 C-04
G00854802Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
