Traction Control Off Switch Position And Their Respective Control

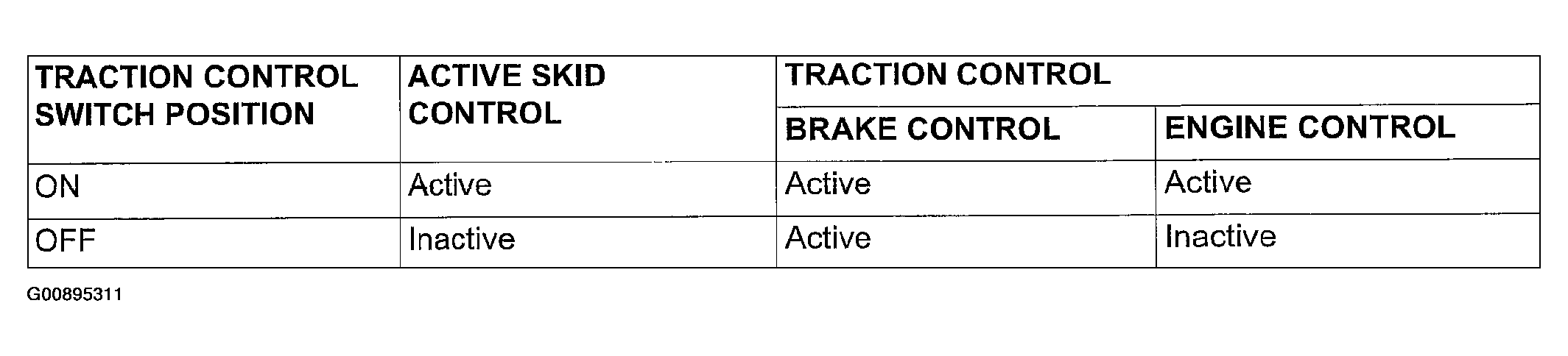

Fig 1: Traction Control Off Switch Position And Respective Control Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE:

• The Traction control will activate when the system has not been disabled by the traction control OFF switch, and the vehicle speed has reached 4 - 9 mph (6 - 14 km/h).
• The traction control will deactivate when the front wheel speed (both wheels) have decreased to 1 - 4 mph (2 - 6 km/h) for one second or more (four seconds or more if the system is controlling the engine output).
• The Active skid control will be activated when the vehicle speed exceeds 12 mph (20 km/h).
• The Active skid control will deactivate when the vehicle speed has decreased to 9 mph (15 km/h) or lower.
