Actuator Test Reference Table: Notes

The scan tool activates the following actuators for testing.

NOTE: If the TCL/ASC-ECU runs down, actuator testing cannot be carried out.

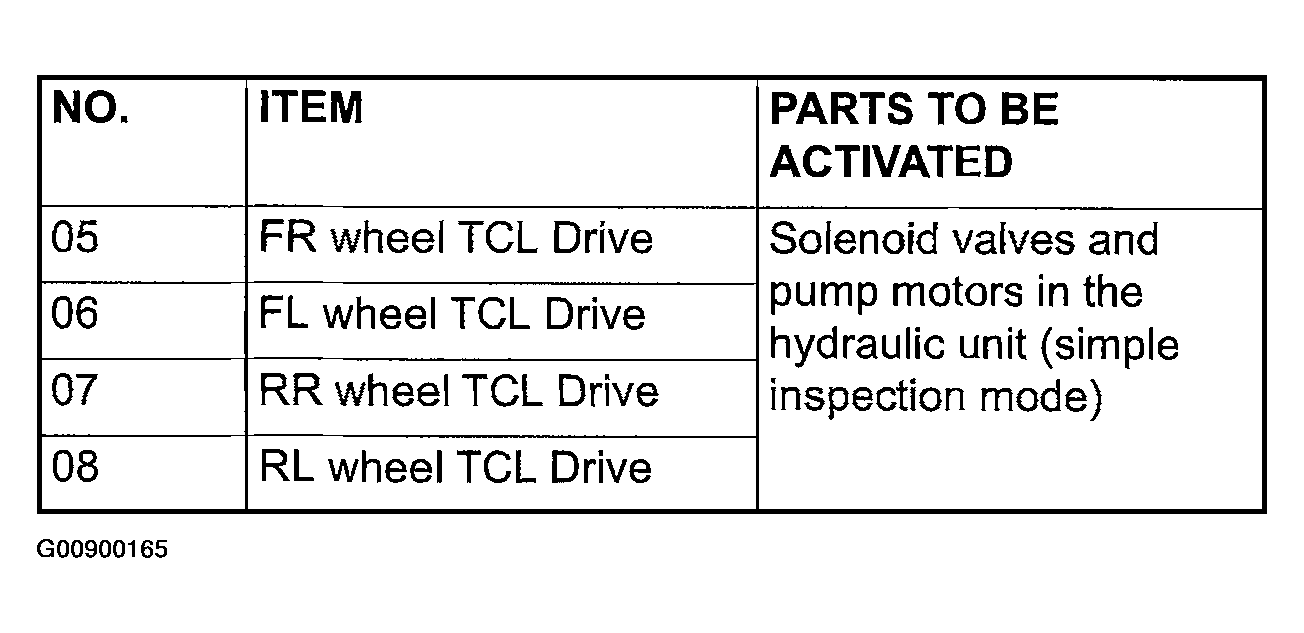

Fig 1: Actuator Test Reference Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Actuator testing is only possible when the vehicle is stationary.
