INSPECTION PROCEDURE 5: Communication Between The Scan Tool And The TPMS Is Not Possible.: Diagnosis
Required Special Tools:
- MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: MUT-III USB Cable
- MB991910: MUT-III Main Harness A
- STEP 1. Check the TPMS warning light.
Check whether the TPMS warning light illuminates for three seconds after the ignition switch is turned to the "ON" position.
Q: Does the TPMS warning light illuminate for three seconds?
- YES: Check that the TPMS warning light illuminates for three seconds and then goes out. Then go to Step 2.
- NO: Go to (Refer to INSPECTION PROCEDURE 3: THE TPMS WARNING LIGHT DOES NOT ILLUMINATE AS A BULB CHECK FOR THREE SECONDS WHEN THE IGNITION SWITCH IS TURNED TO THE "ON" POSITION. ).
- STEP 2. Check the following connectors.

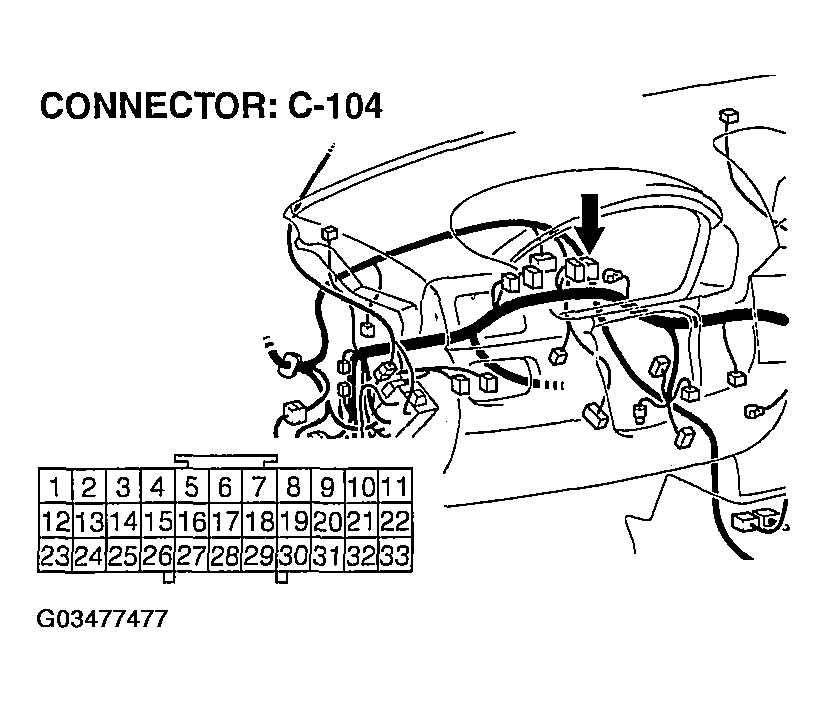

- Joint connector C-104

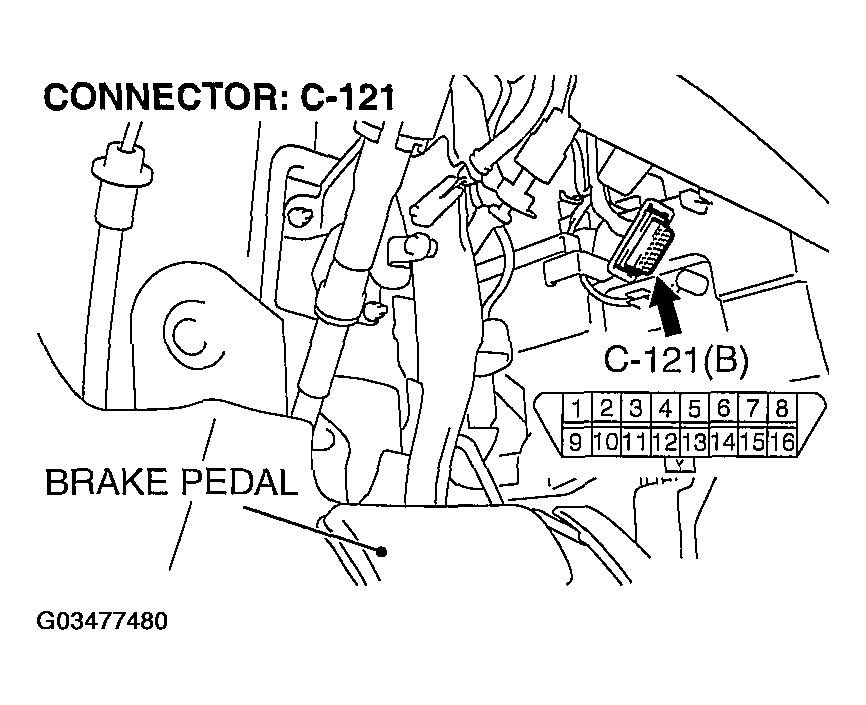

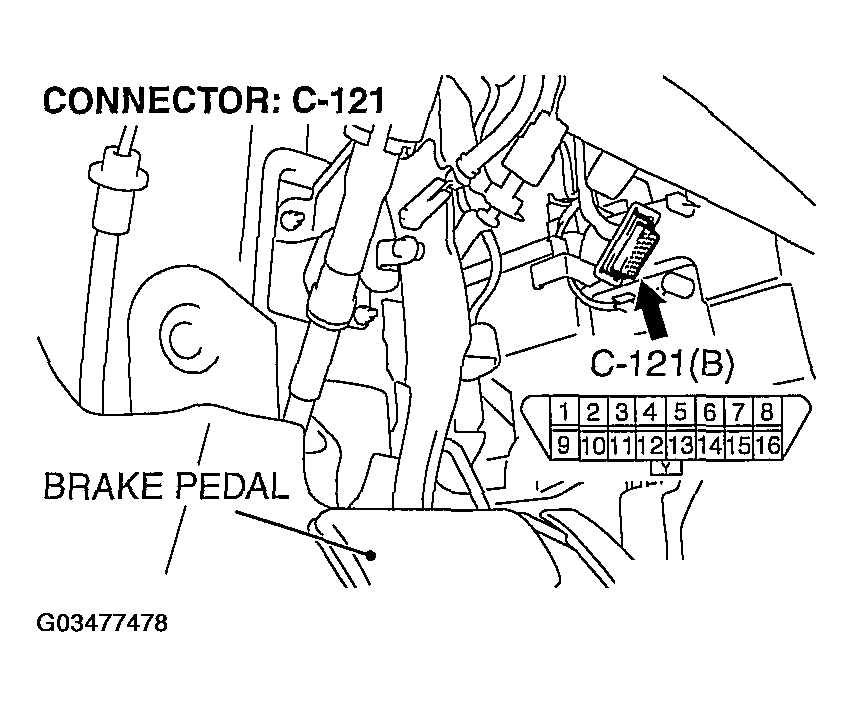

- Data link connector C-121

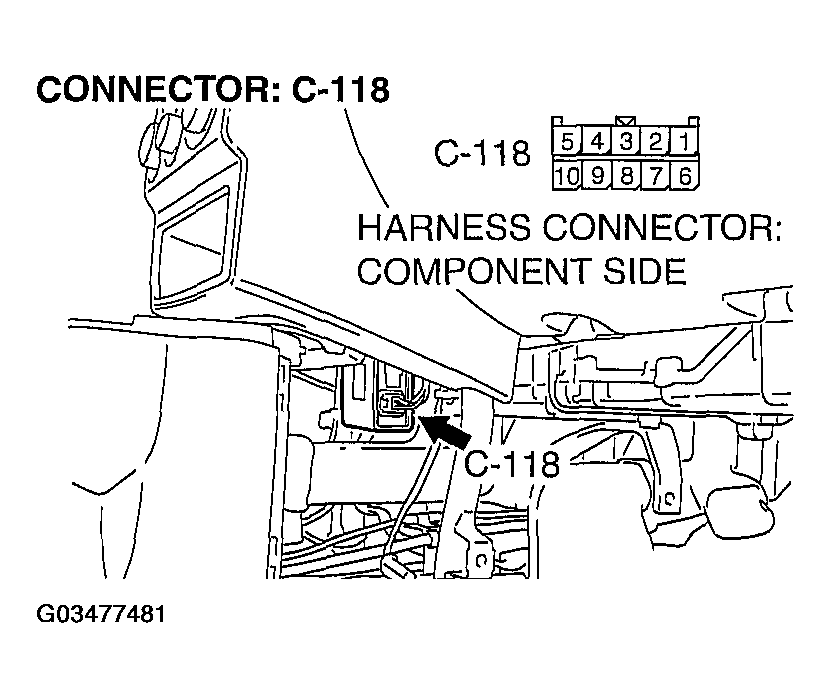

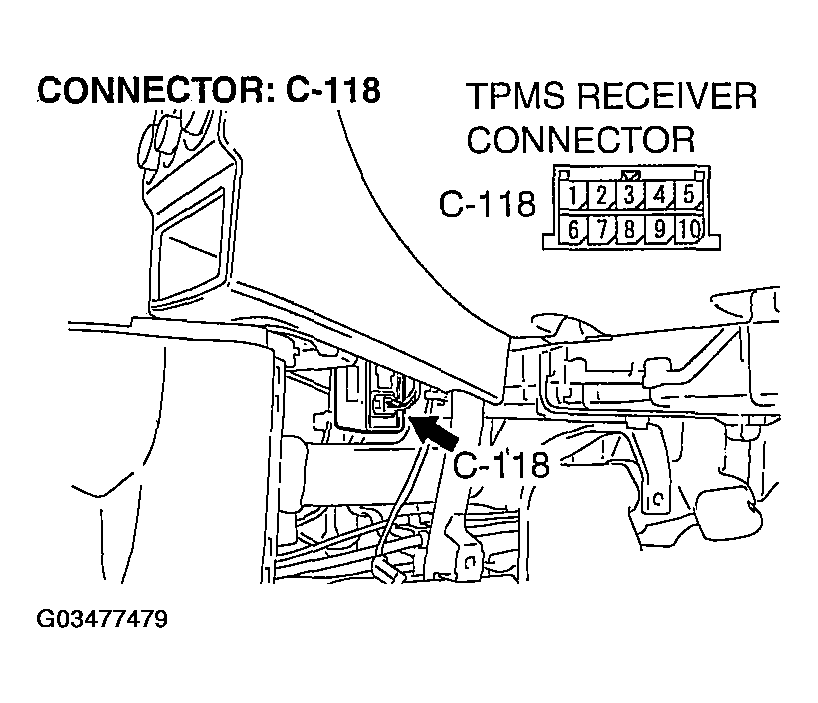

- TPMS receiver connector C-118
Check the connectors for loose, corroded or damaged terminals, or terminals pushed back in the connector.
Q: Are the connectors and terminals in good condition?
- YES: Go to Step 3.
- NO: Repair it. Then go to Step 4.
- STEP 3. Check the following harness wire.
- The wire between data link connector (terminal 7) and TPMS receiver connector C-118 (terminal 1)
Q: Is the harness wire damaged?
- YES: Repair or replace it. Then go to Step 4.
- NO: Replace the TPMS RECEIVER and execute "TIRE PRESSURE SENSOR ID REGISTRATION " on scan tool MB991958 "Special Function" (Refer to WHEEL RUNOUT CHECK ). Then go to Step 4.
- STEP 4. Retest the system. CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

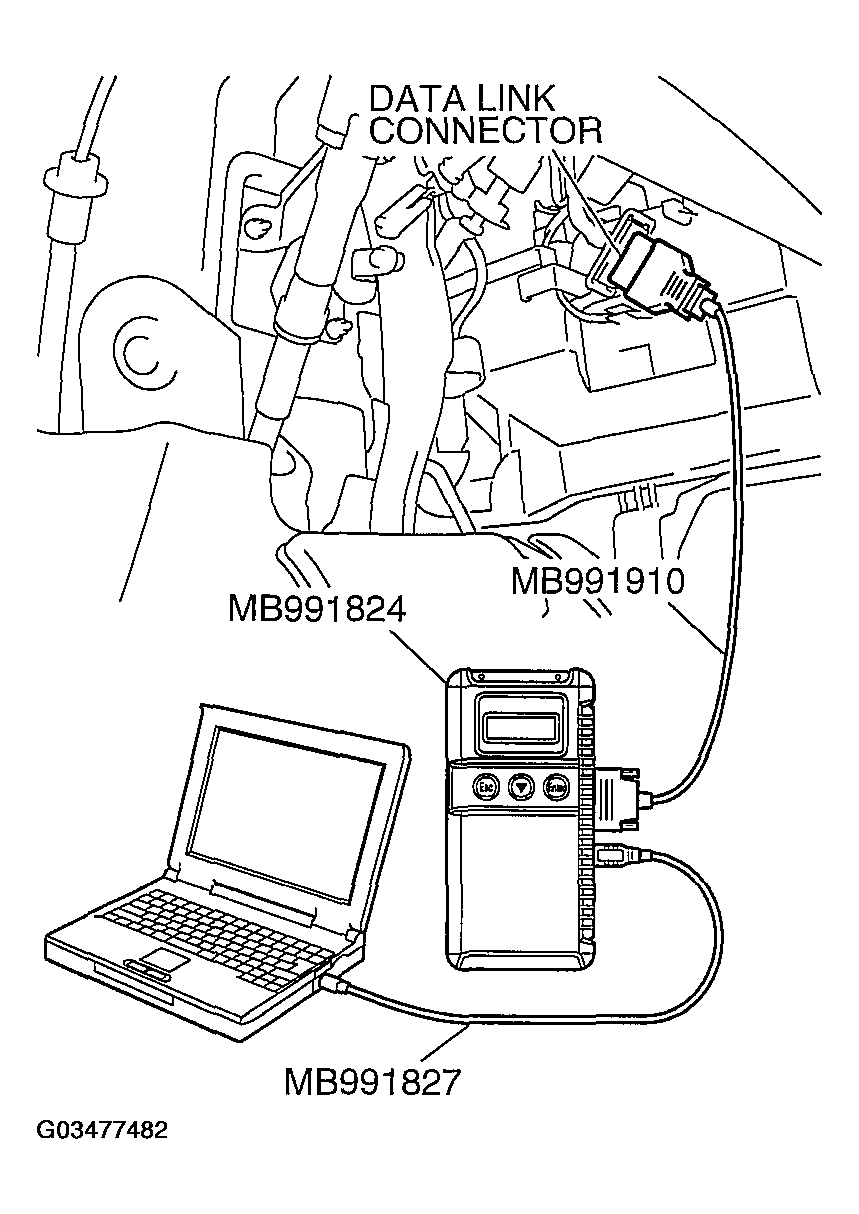

- Connect scan tool MB991958 to the data link connector.
- Turn the ignition switch to the "ON" position.
- Retest the system.
Q: Does the scan tool communicate with the TPMS system?
- YES: The procedure is complete.
- NO: Repeat this procedure from Step 1.
