Logic Flow Charts (Monitor Sequence)

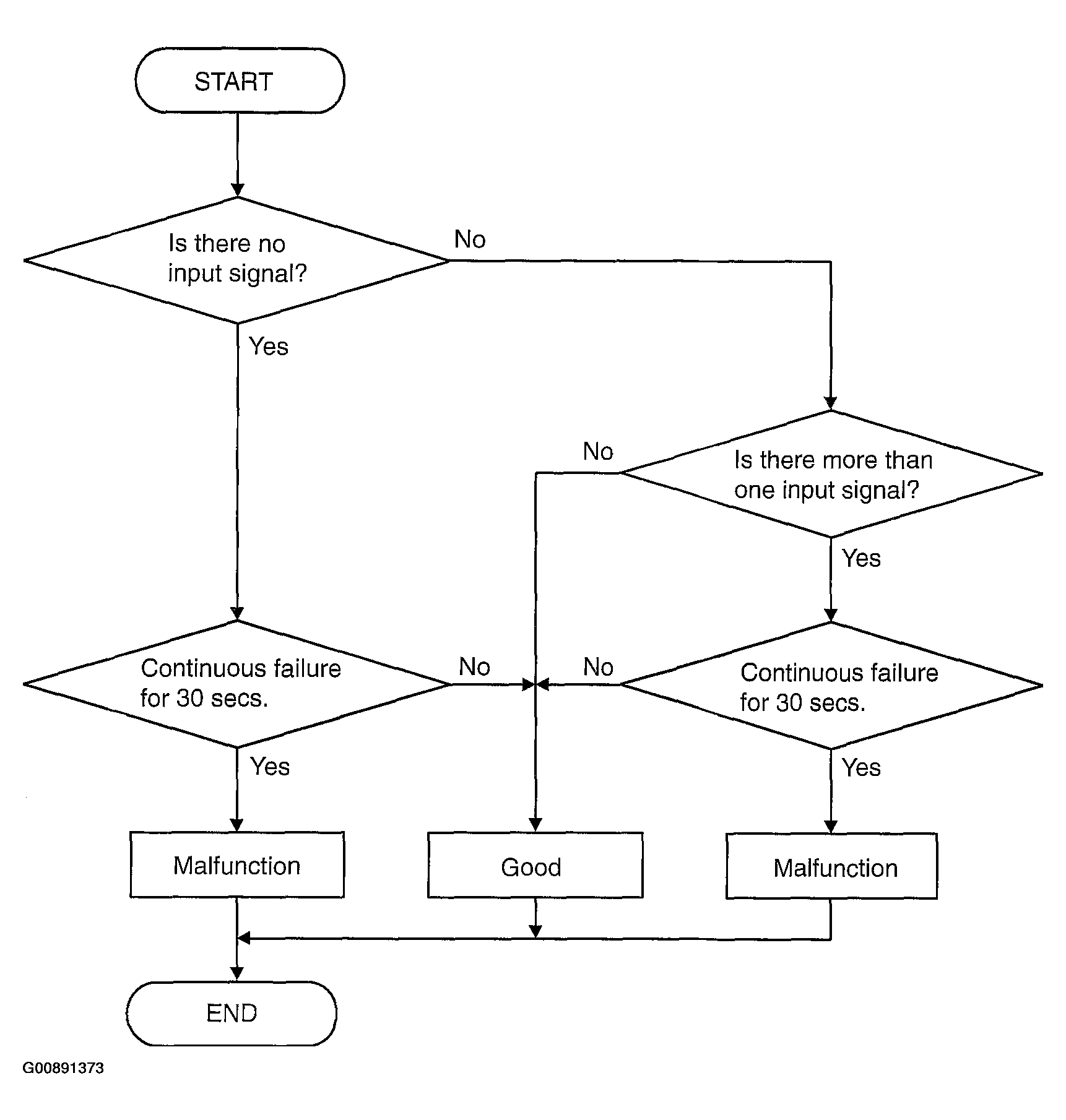

Fig 1: Logic Flow Charts (Monitor Sequence) - DTC 27 (P0705)
G00891373Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

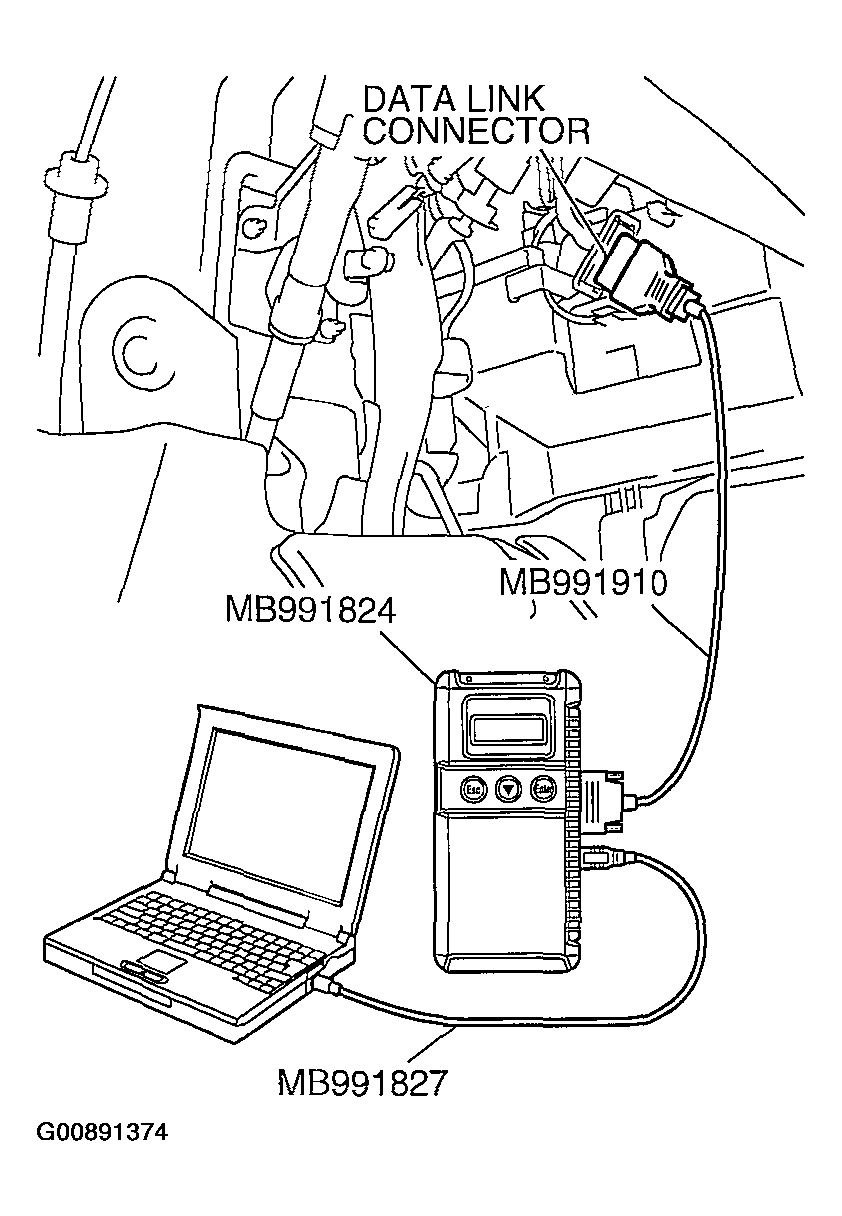

Fig 1: Checking Data List Item 61: Transmission Range Switch Using Scan Tool MB991958
G00891374Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
