A/T Control Relay Circuit

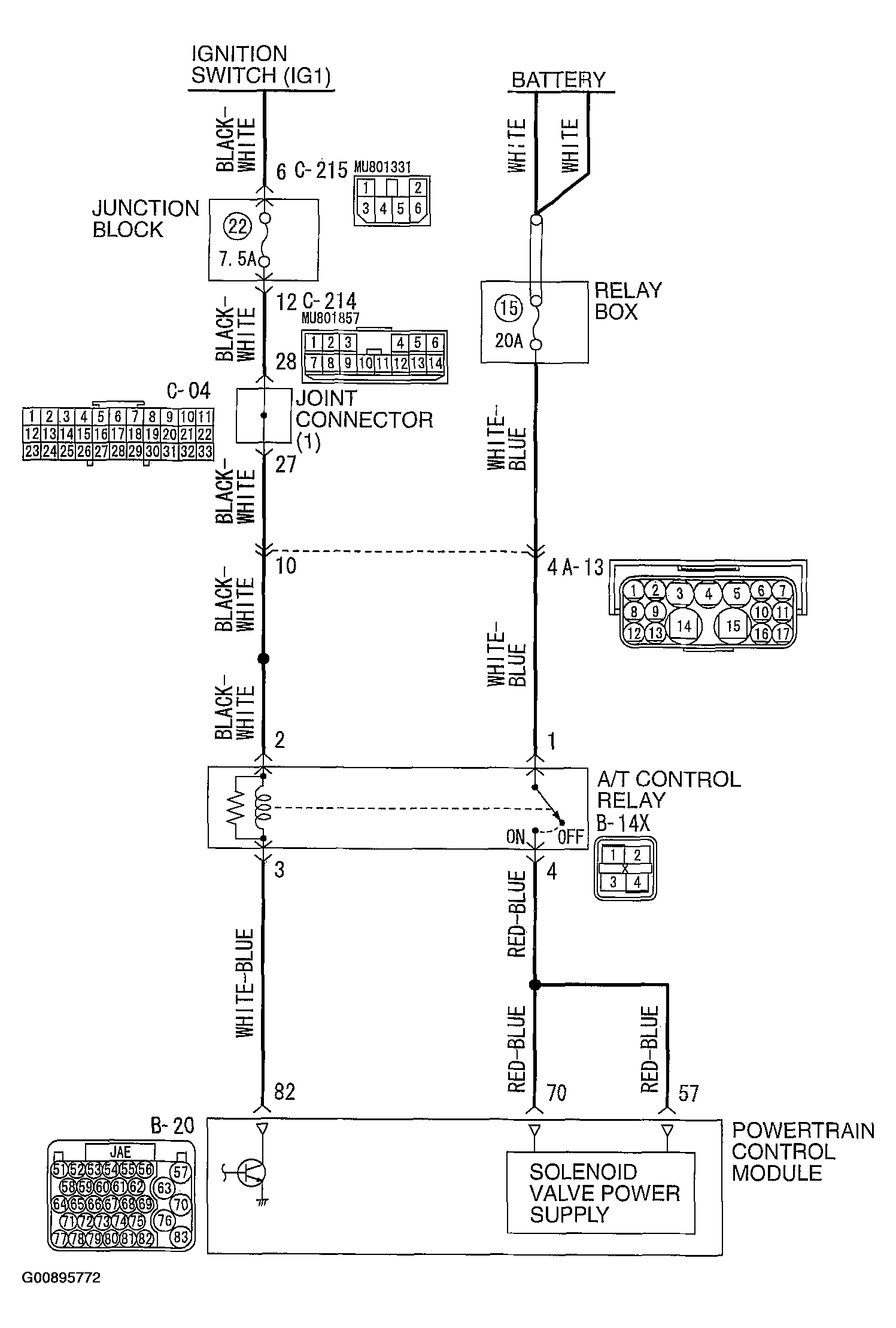

Fig 1: A/T Control Relay System Circuit - DTC 54 (P1751) (1 Of 3)
G00895772Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

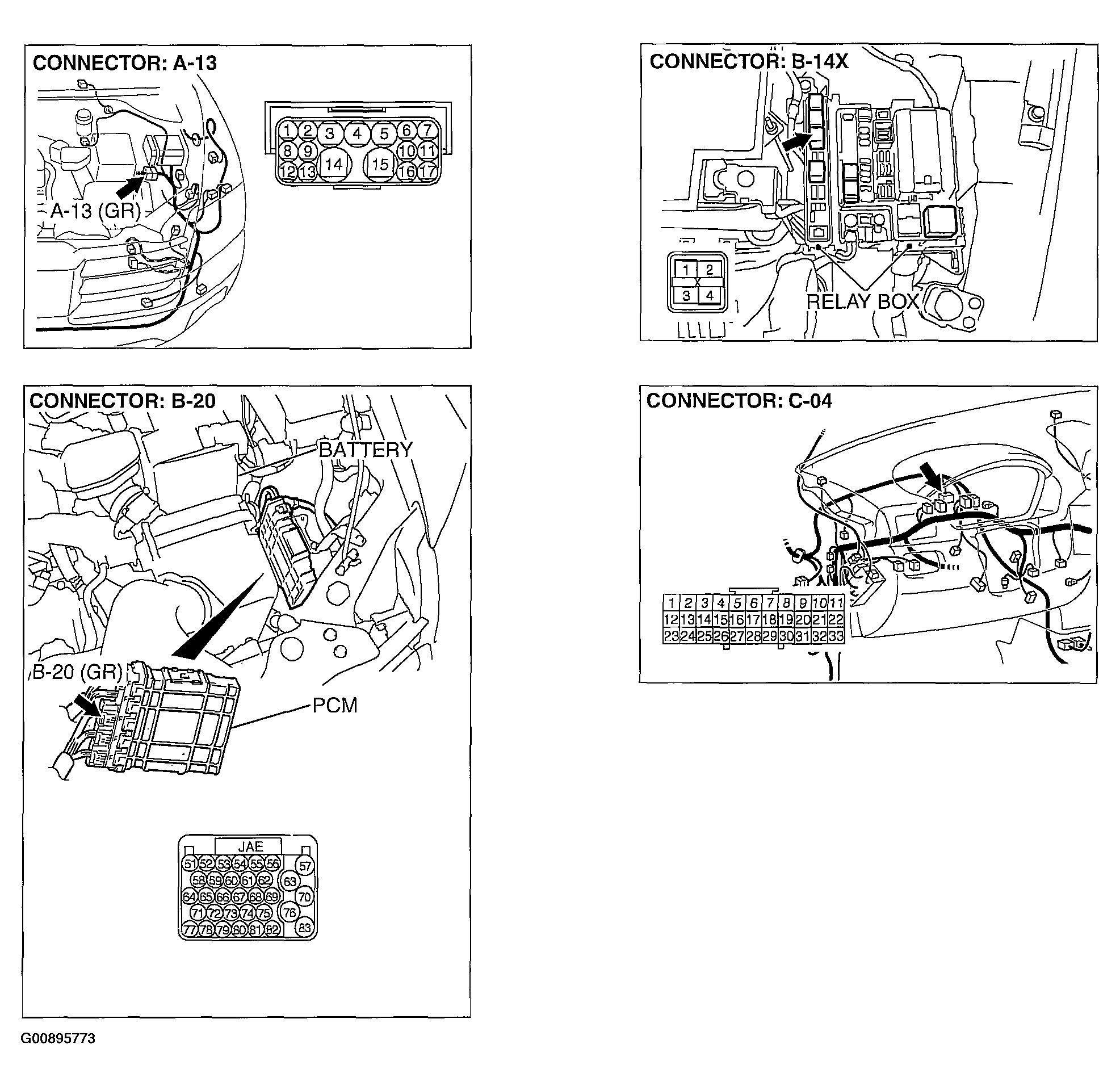

Fig 2: A/T Control Relay System Circuit - DTC 54 (P1751) (2 Of 3)
G00895773Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

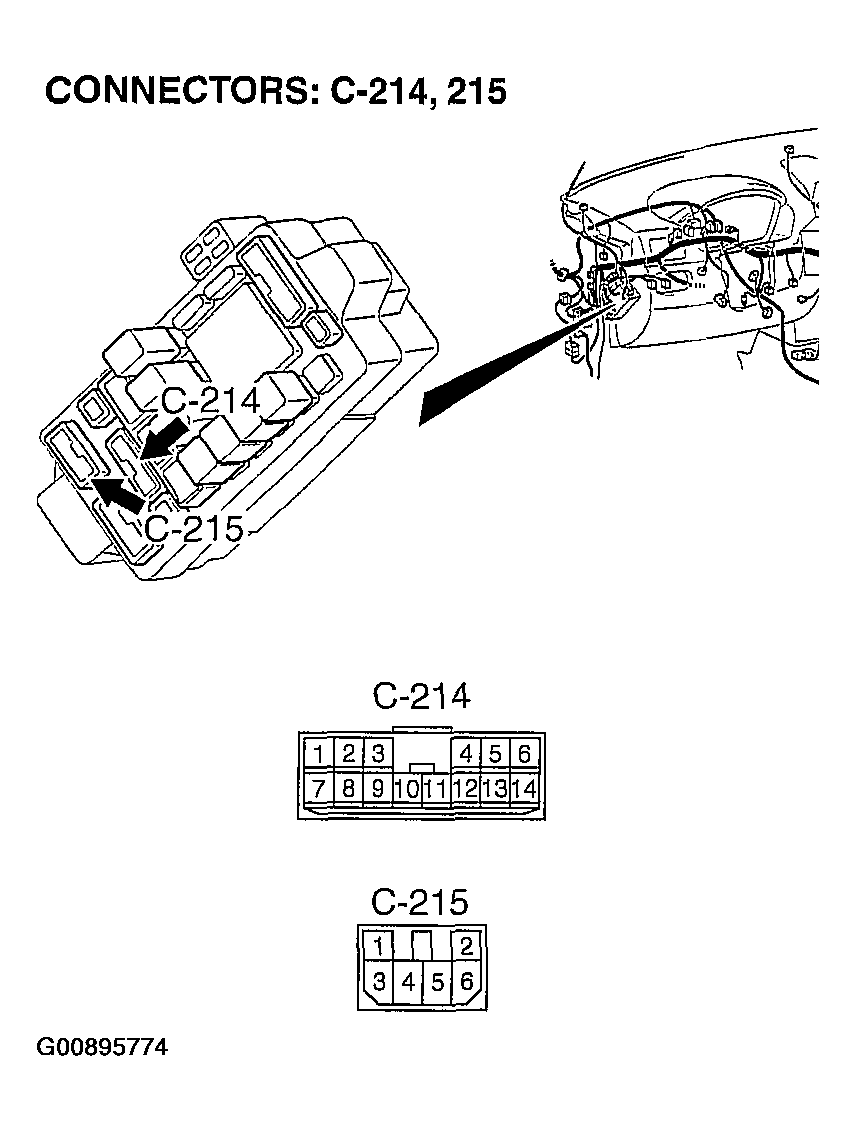

Fig 3: A/T Control Relay System Circuit - DTC 54 (P1751) (3 Of 3)
G00895774Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
