Components And Functions

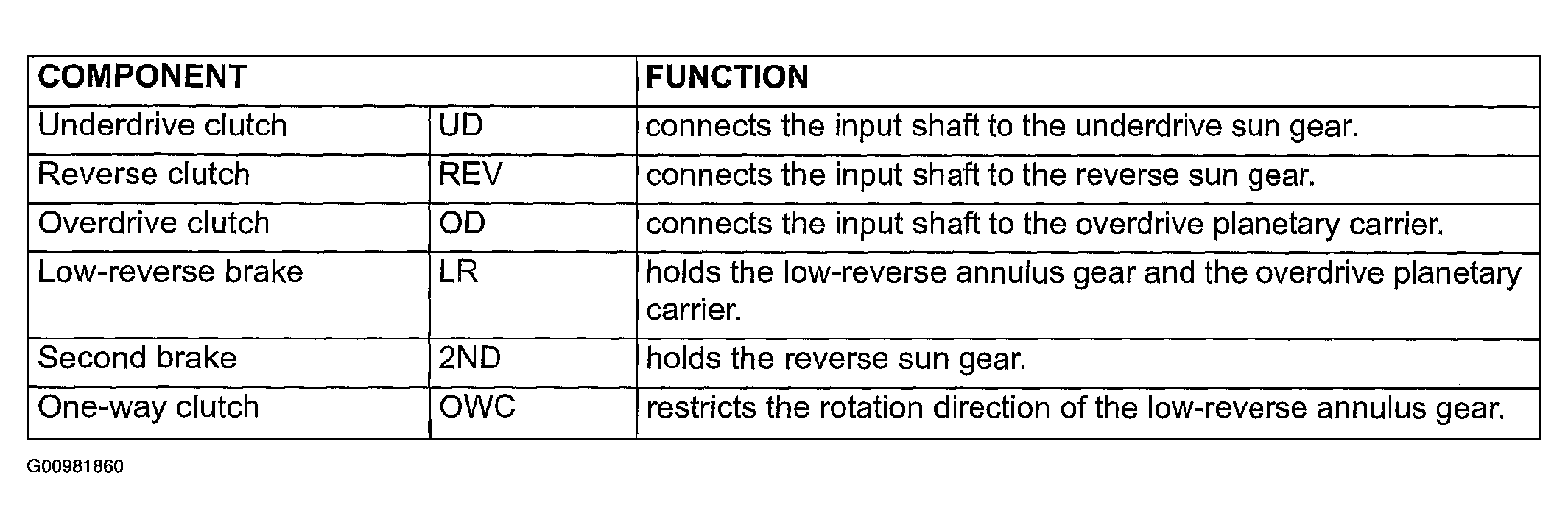

Fig 1: Identifying Automatic Transaxle Components And Functions (2 Of 2)
G00981860Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
