Function Element Table

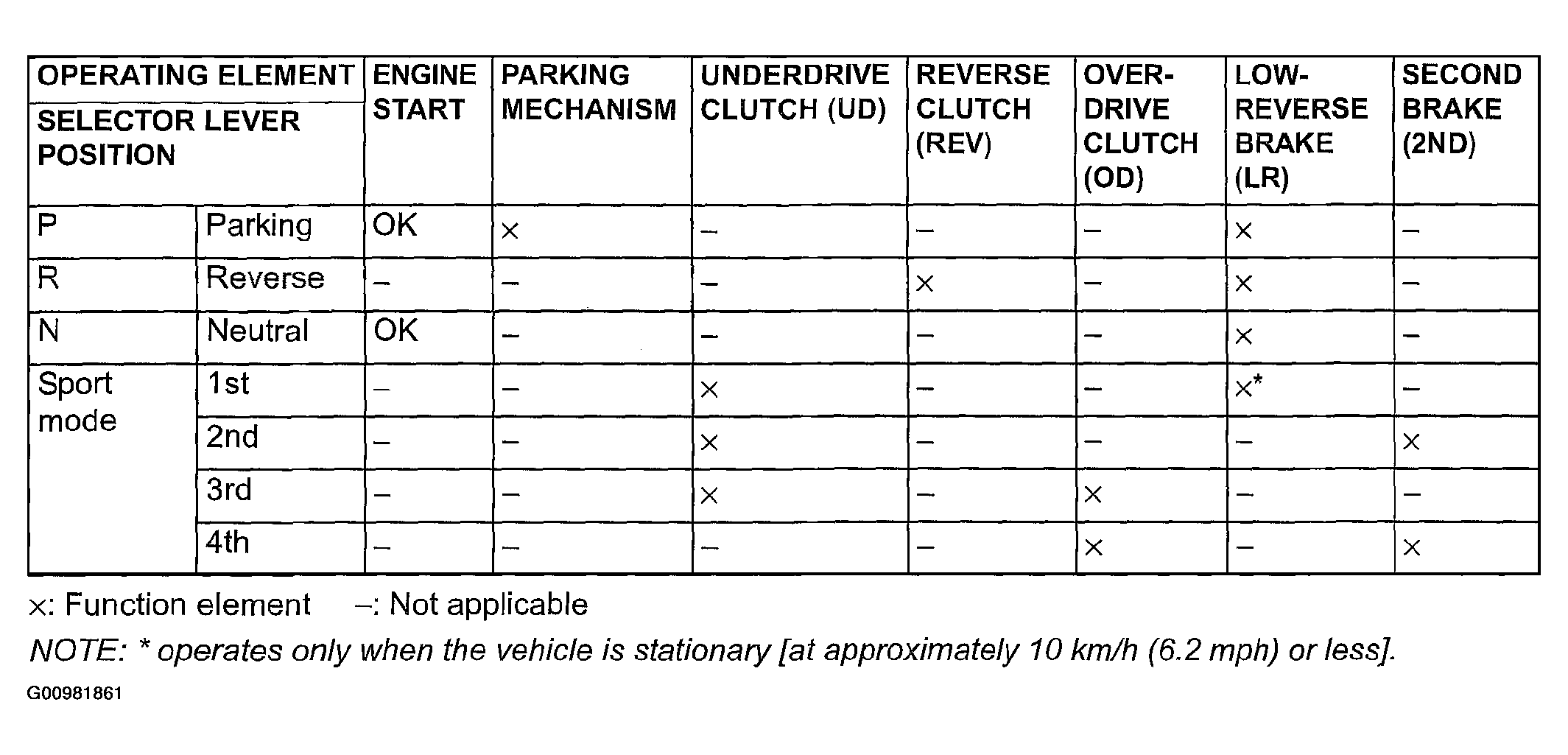

Fig 1: Automatic Transaxle Function Element Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
