Component Location

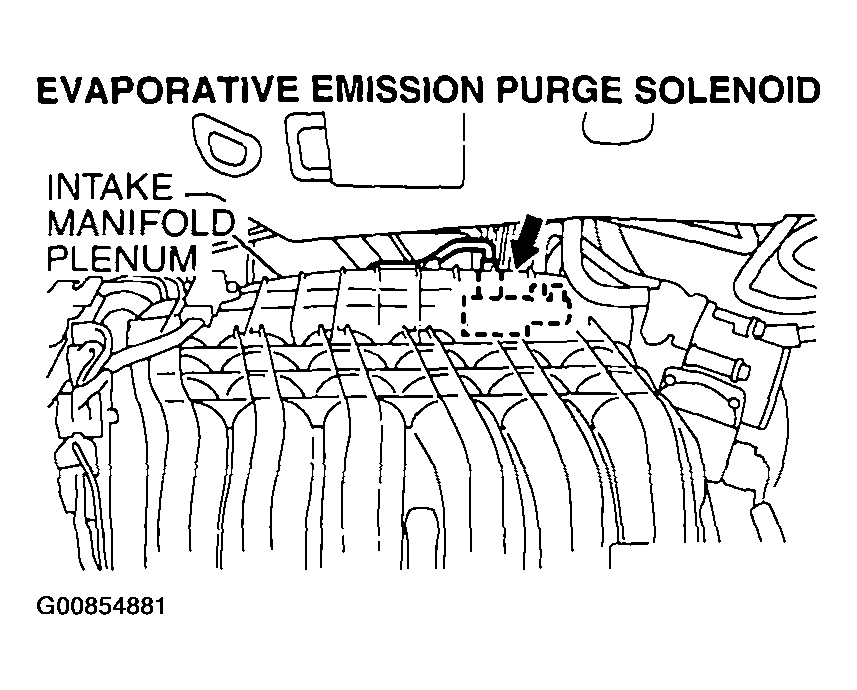

Fig 1: Identifying Evaporative Emission Purge Solenoid
G00854881Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

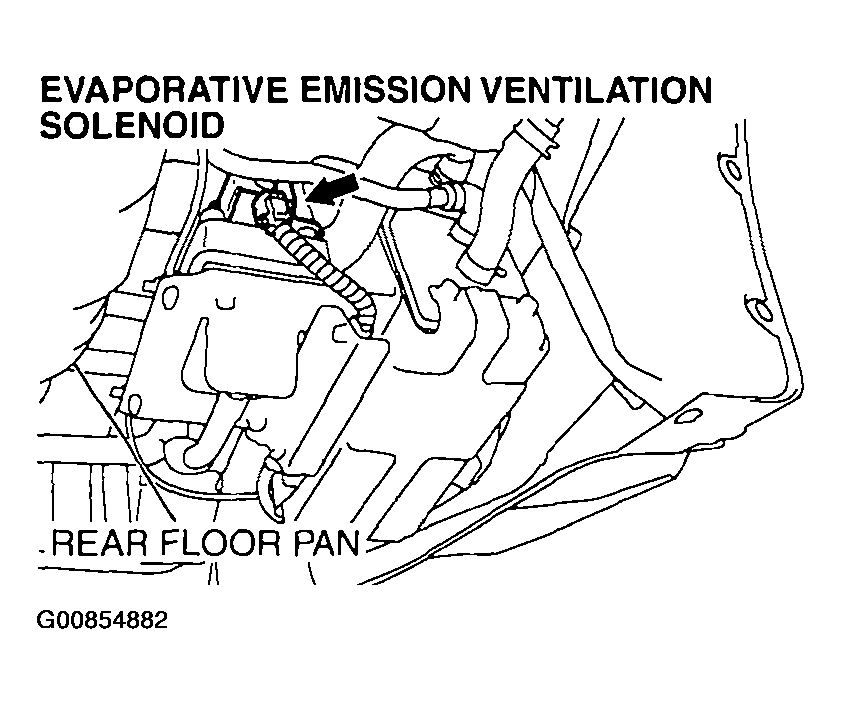

Fig 2: Identifying Evaporative Emission Ventilation Solenoid
G00854882Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
