Fuel Level Sensor Replacement

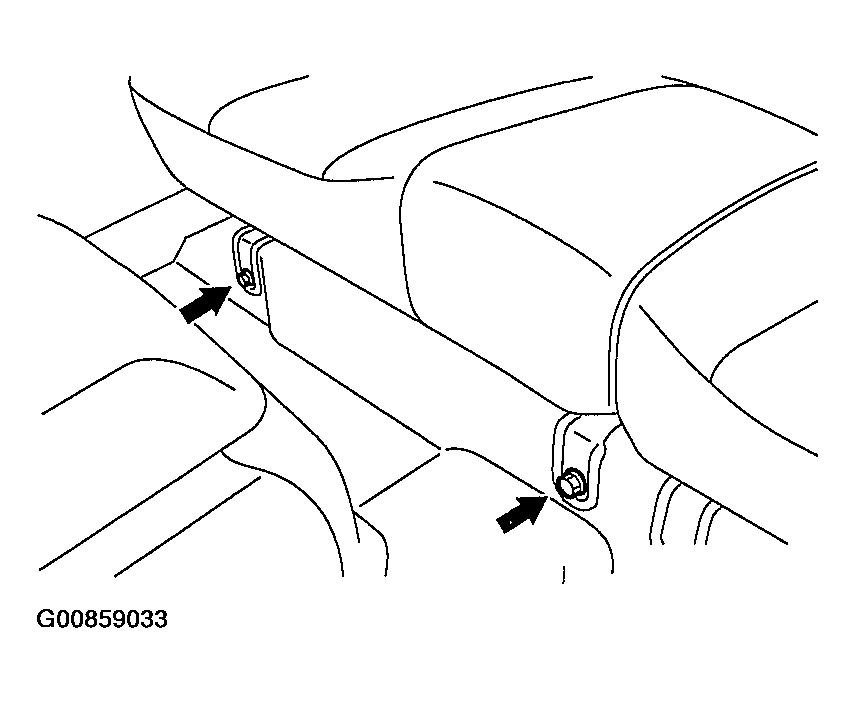

Remove the right rear seat cushion mounting bolts, and lift the right rear seat cushion and tie it to the head restraint.

Fig 1: Identifying Right Rear Seat Cushion Mounting Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

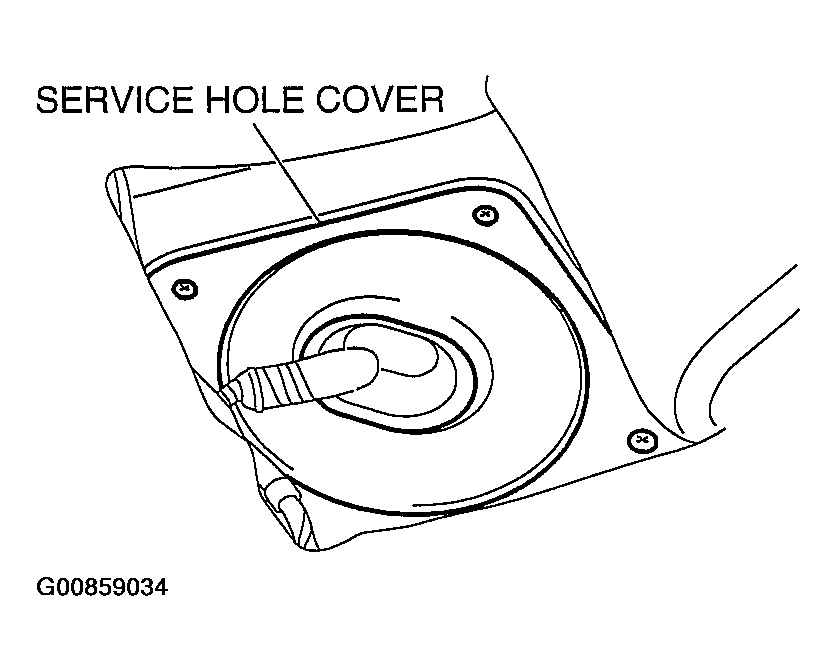

Cut the floor mat and then remove the service hole cover to gain access to the service hole.
NOTE: Push the floor mat to find the notches and cut the floor mat along them.

Fig 2: Identifying Service Hole Cover
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

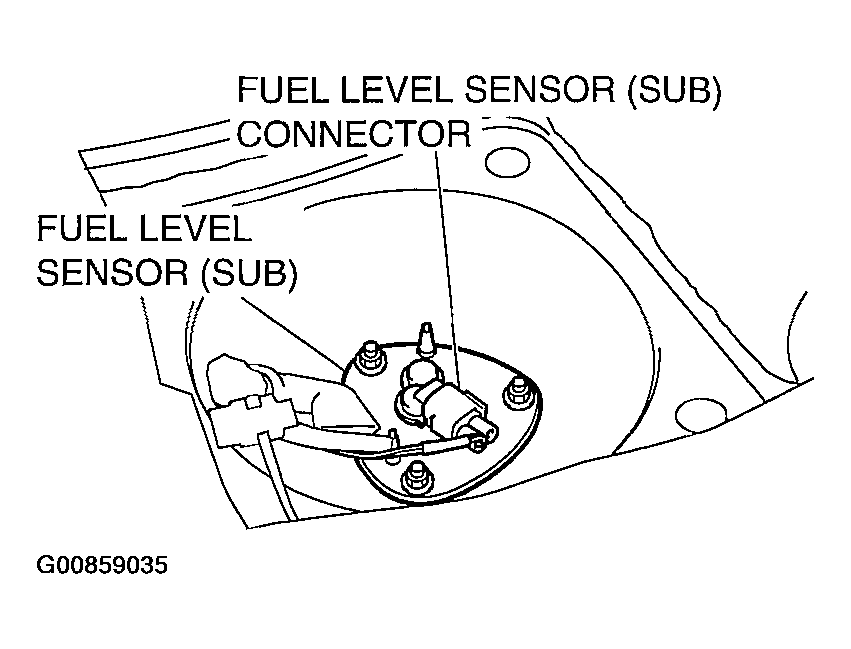

Disconnect the fuel level sensor (sub) connector.

Fig 3: Disconnecting Fuel Level Sensor (Sub) Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: When withdrawing the fuel level sensor (sub) from the fuel tank, be careful not damage the sensor unit and the float.

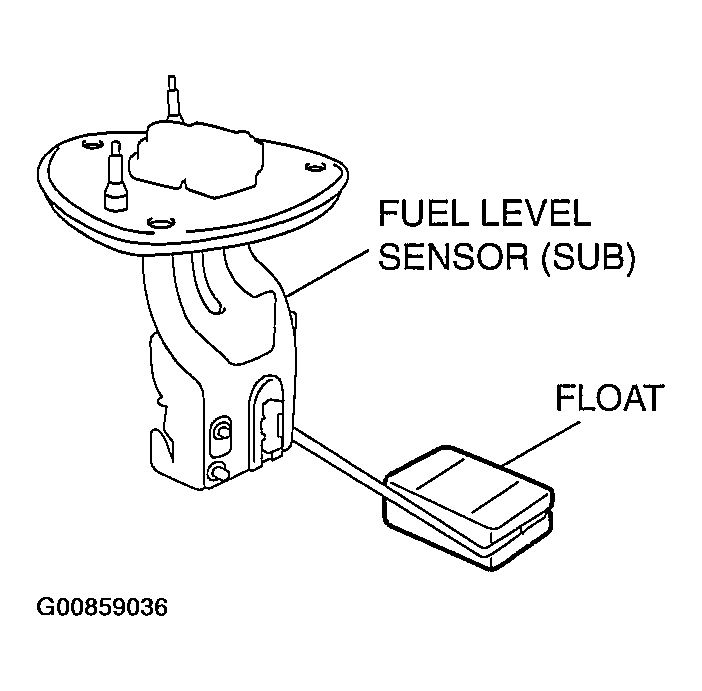

Remove the fuel level sensor (sub) mounting bolts and remove the fuel level sensor (sub) from service hole.

Fig 4: Removing Fuel Level Sensor (Sub) Mounting Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: When inserting the fuel level sensor (sub) into the fuel tank, be careful not damage the sensor unit and the float.
Install the fuel level sensor (sub) to the fuel tank through the service hole.

Fig 5: Installing Fuel Level Sensor (Sub) To Fuel Tank Through Service Hole
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

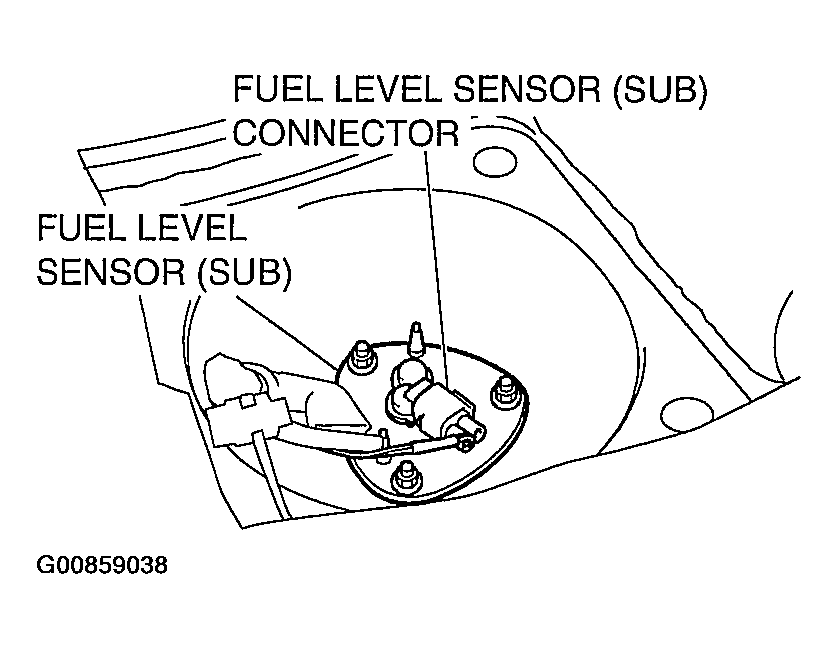

Connect the fuel level sensor (sub) connector.

Fig 6: Connecting Fuel Level Sensor (Sub) Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

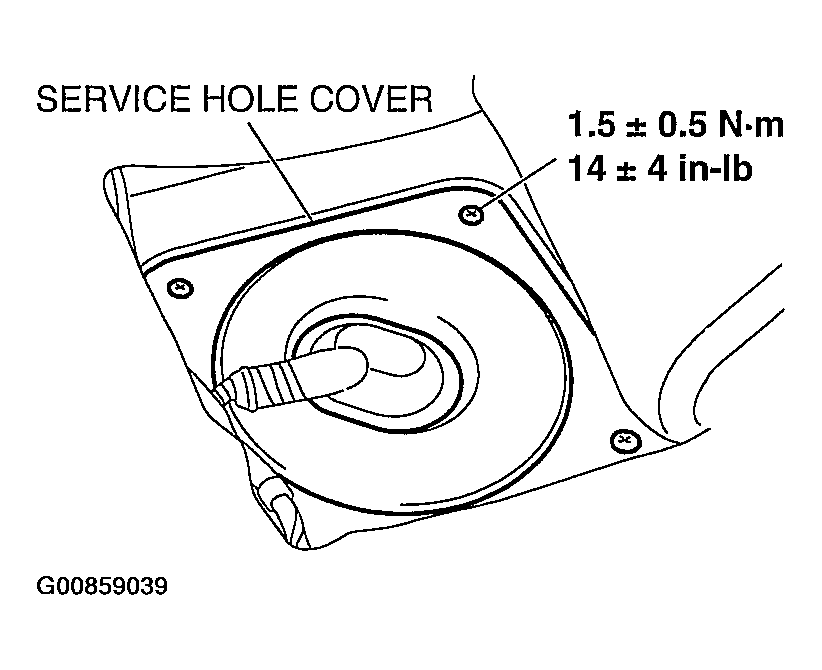

Install the service hole cover.
1. Tightening torque: 1.5 + 0.5 N.m (14 + 4 in-lb)
Fig 7: Installing Service Hole
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the floor mat into its original position.

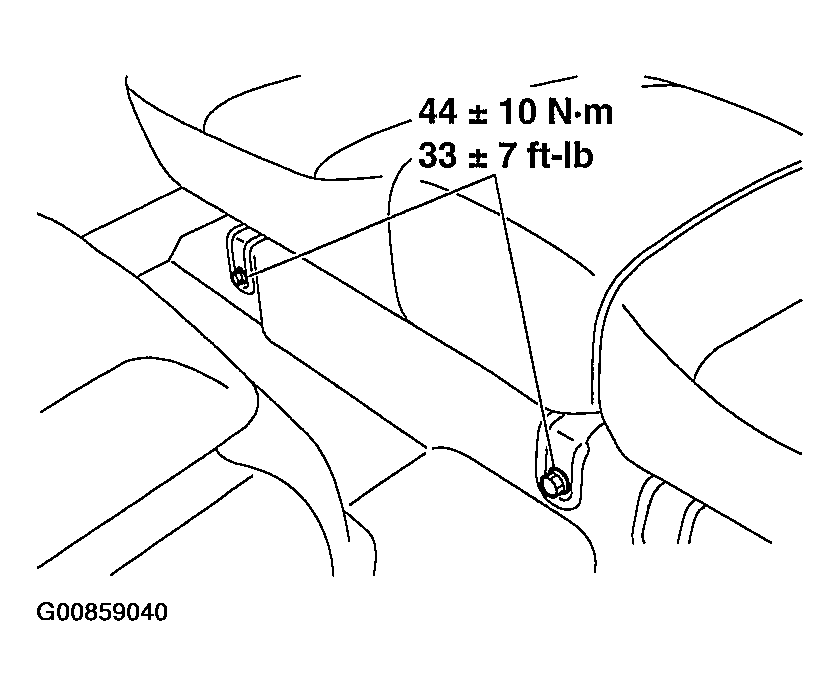

Untie the right rear seat cushion, install it into its original position and tighten the mounting bolts to the specified torque.
1. Tightening torque: 44 + 10 N.m (33 + 7 ft-lb)

Fig 8: Tightening Mounting Bolts And Installing Right Rear Seat Cushion

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
