Home >> Mitsubishi >> 2004 >> Endeavor V6-3.8L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Differential Assembly >> Disassembly and Assembly
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

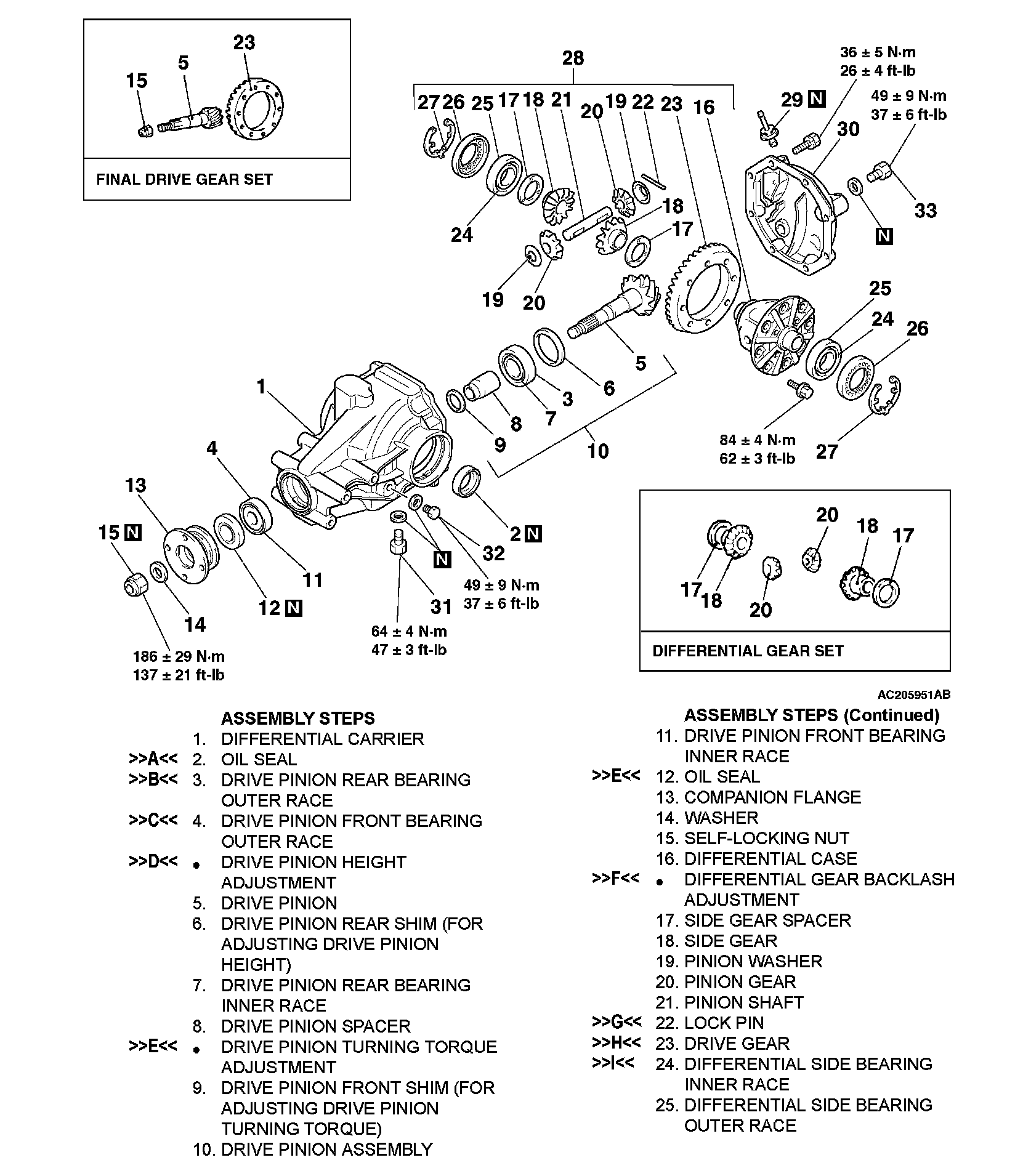

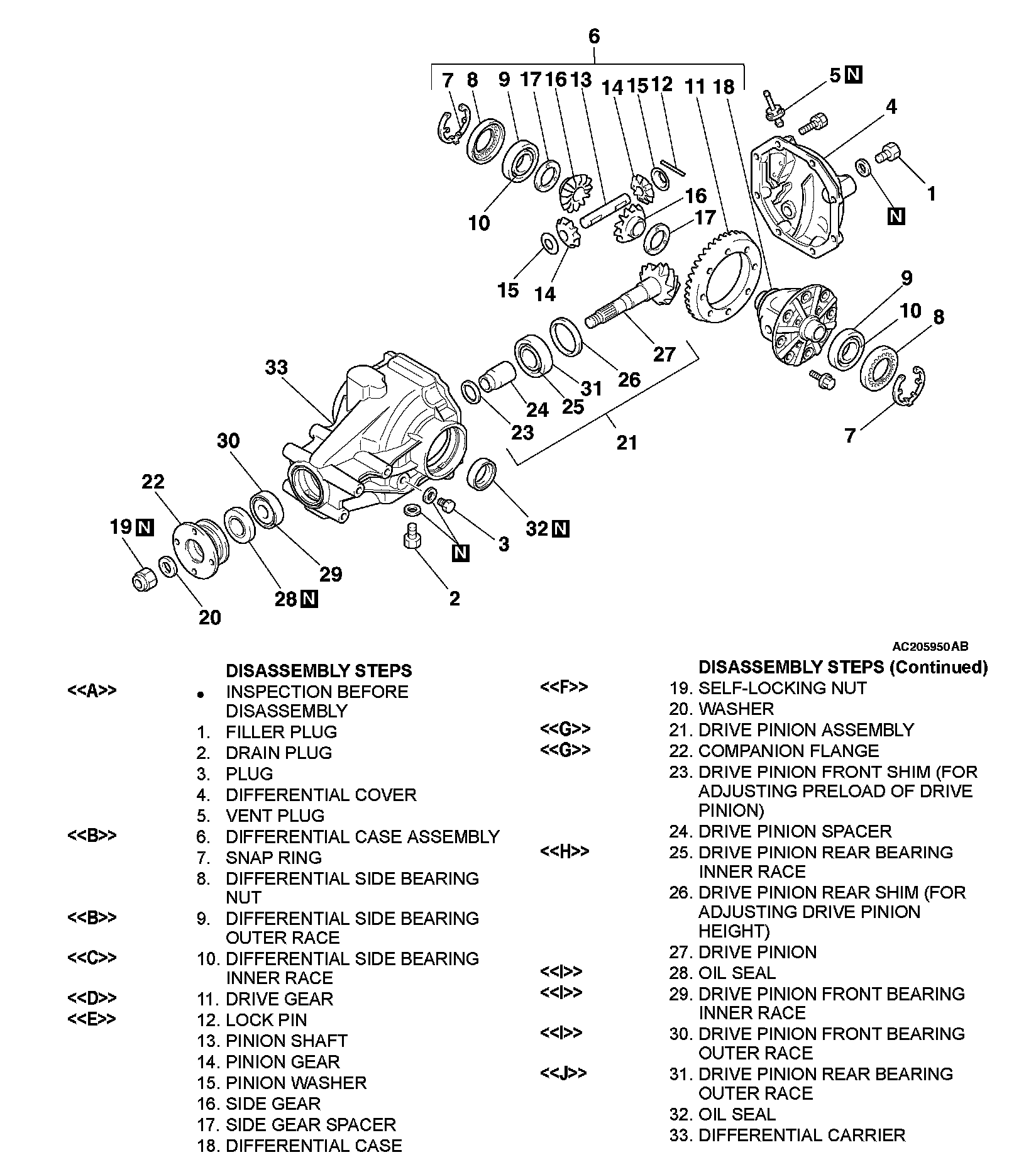

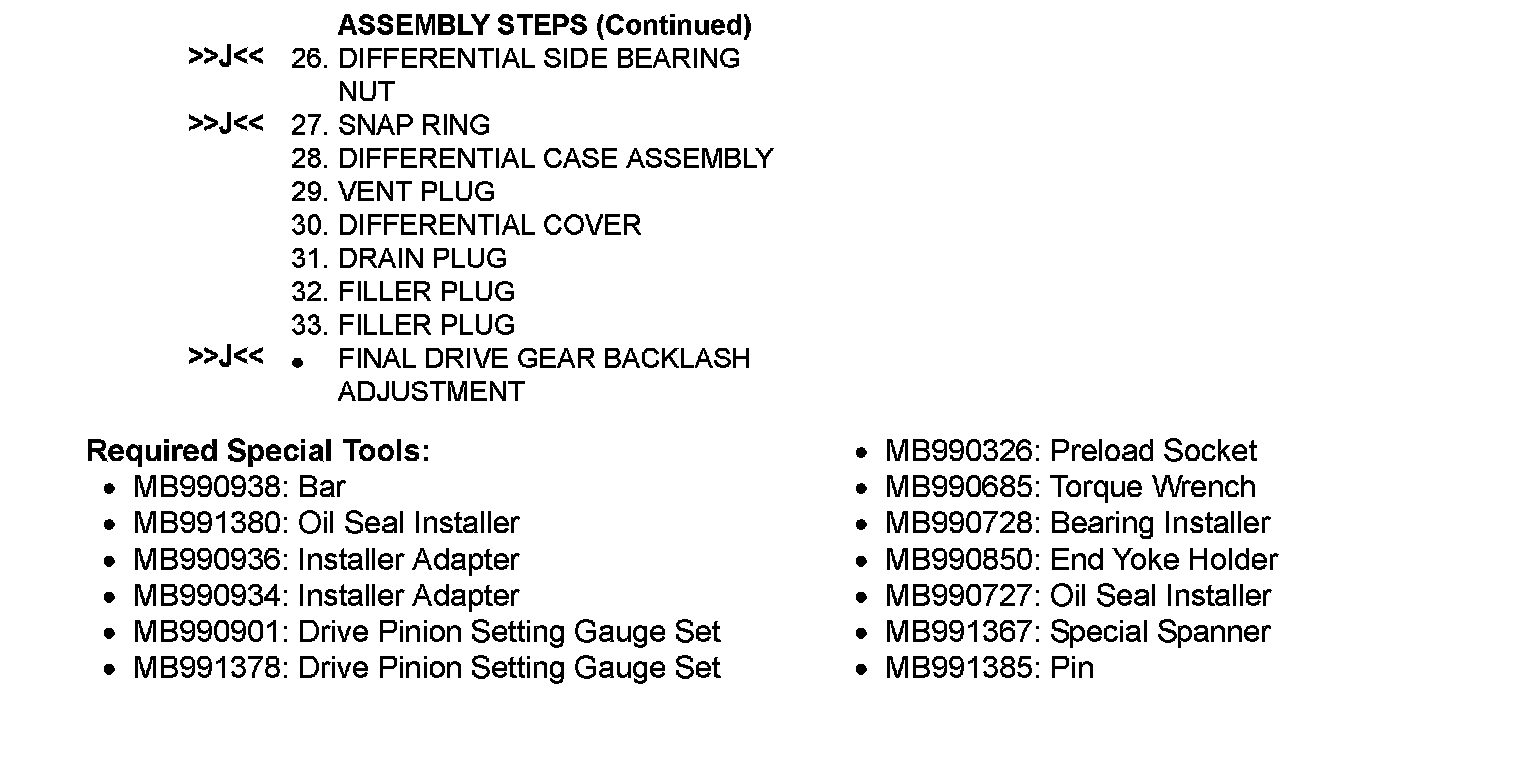

Disassembly and Assembly

Part 1 Of 2:



Part 2 Of 2:



Part 1 Of 2:



Part 2 Of 2:
