Trunk Lid Latch Assembly Input Circuit

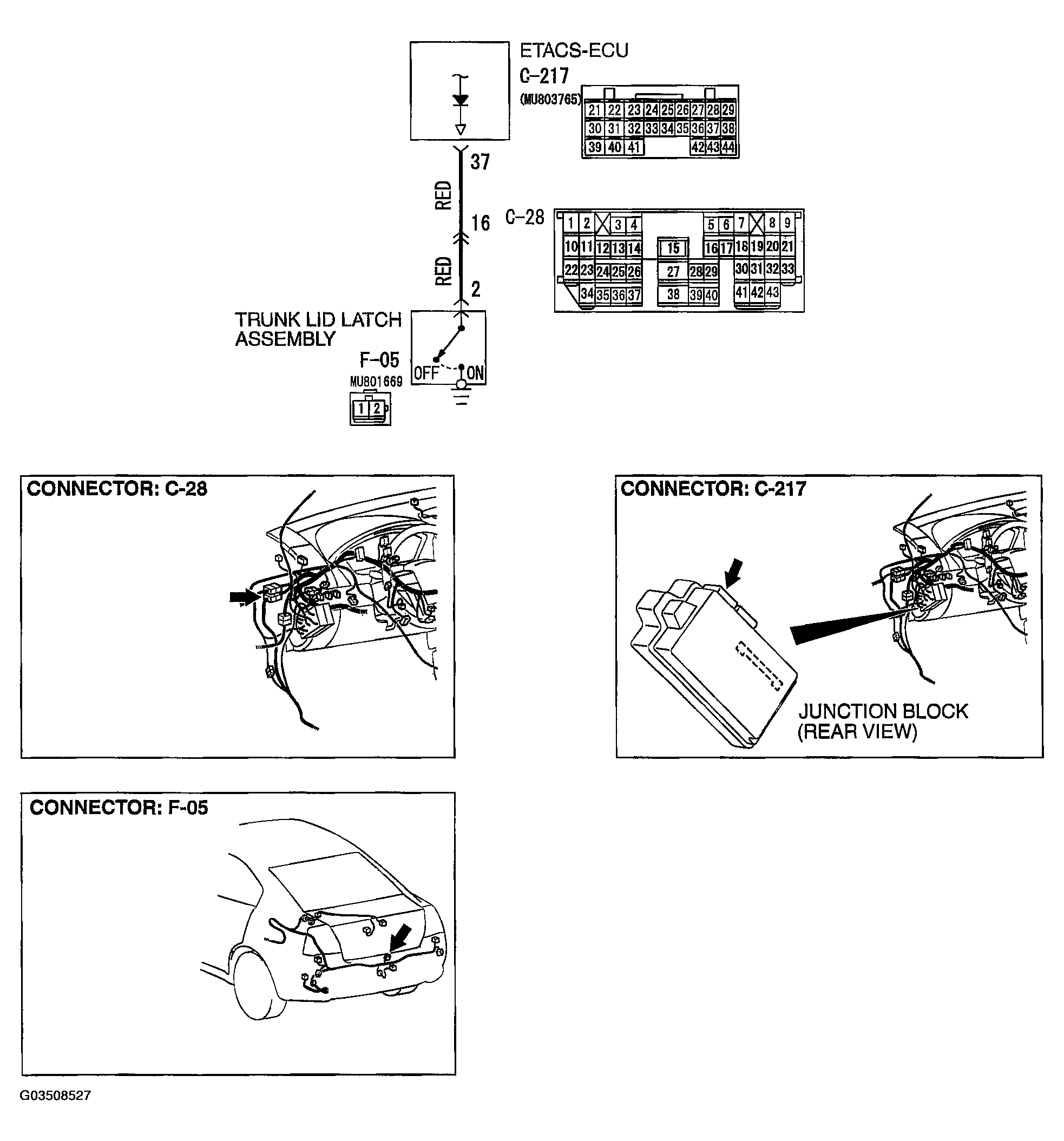

Fig 1: View Of Trunk Lid Latch Assembly Input Circuit Diagram And Connectors
G03508527Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
