Transmitter "Trunk" Input Signal

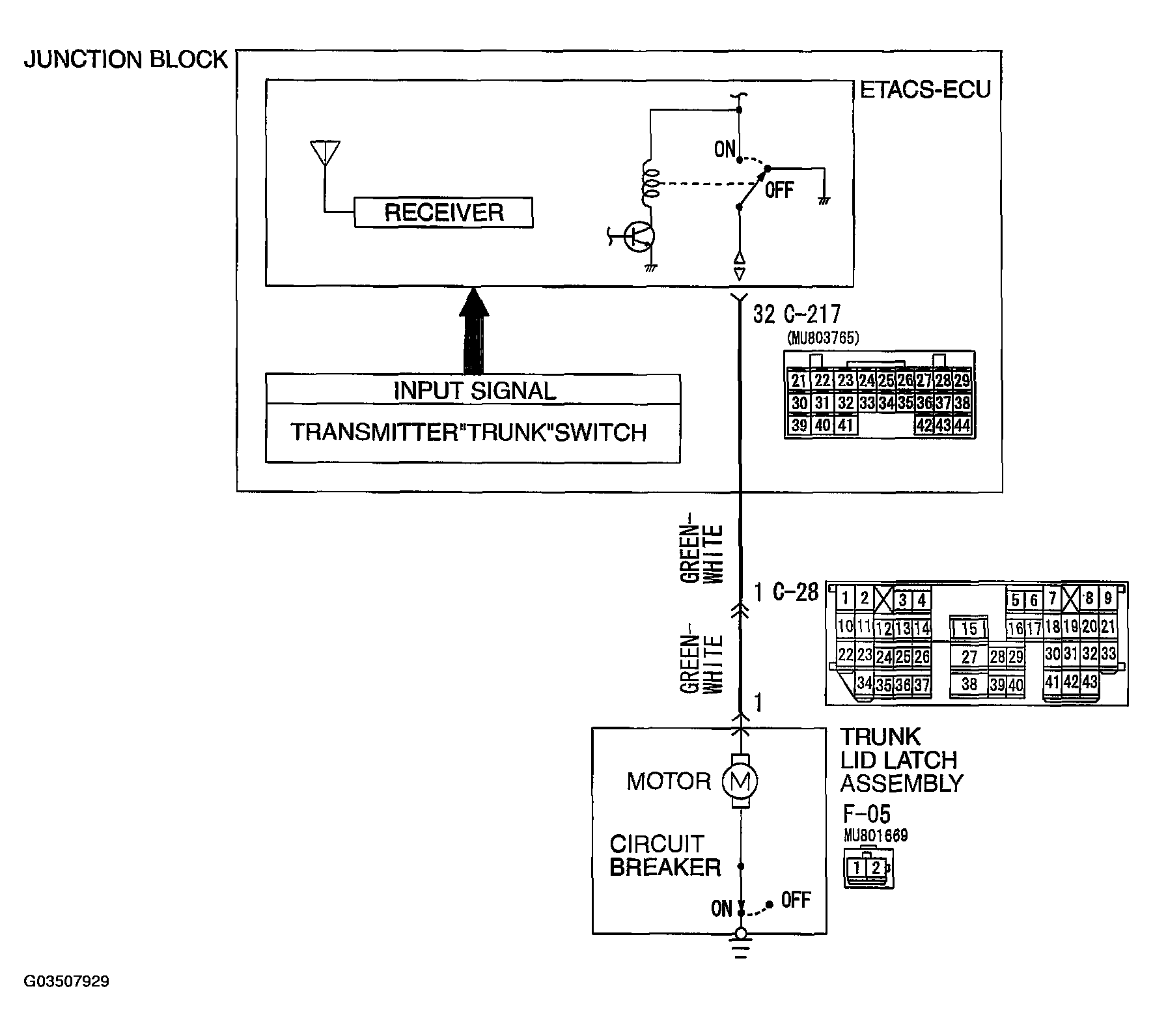

Fig 1: View Of Transmitter "Trunk" Input Signal Circuit Diagram
G03507929Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

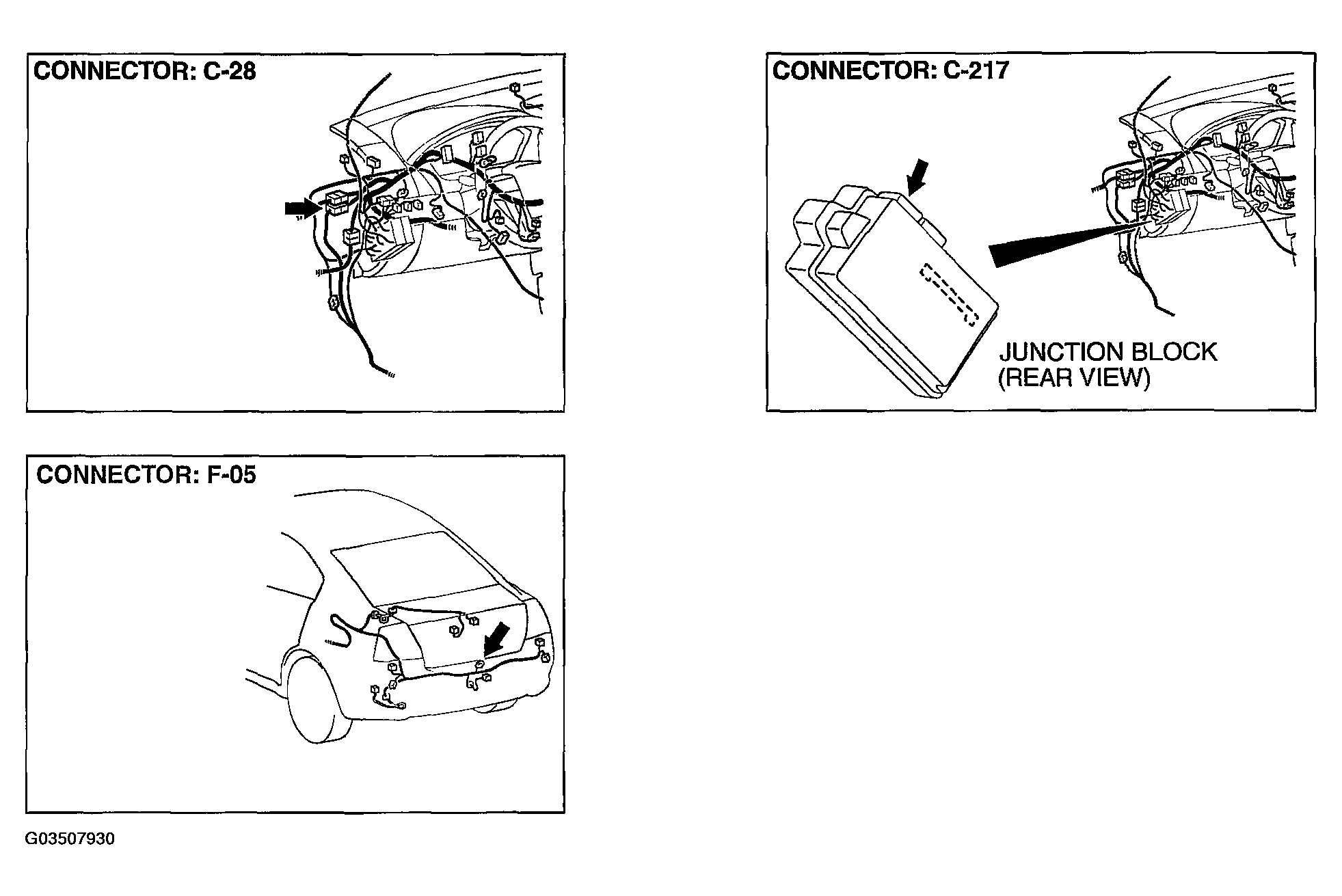

Fig 2: Identifying Connector Terminals
G03507930Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
