DTC 22: Stoplight Switch System: Notes

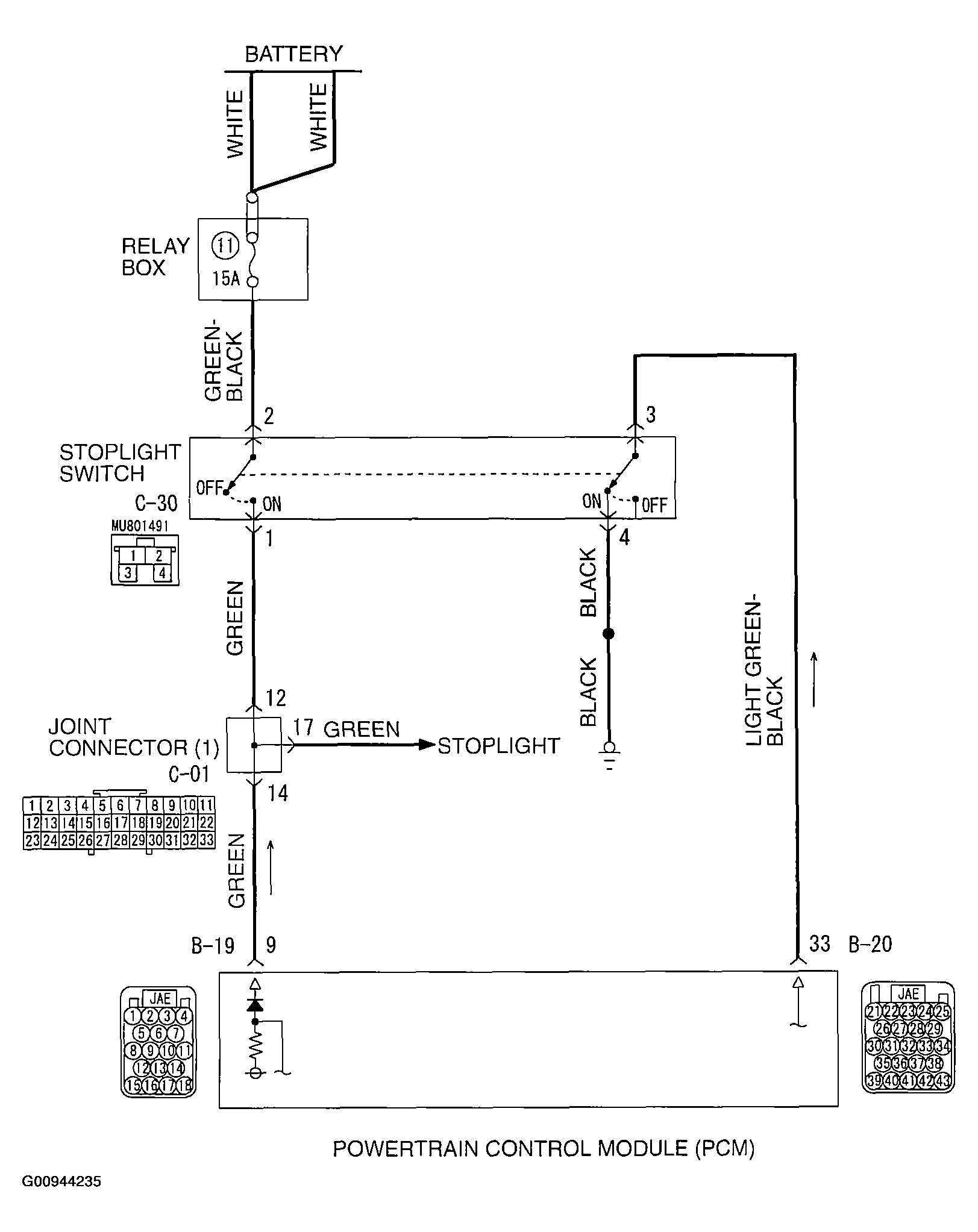

Fig 1: Identifying Stoplight Switch System Circuit Diagram
G00944235Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

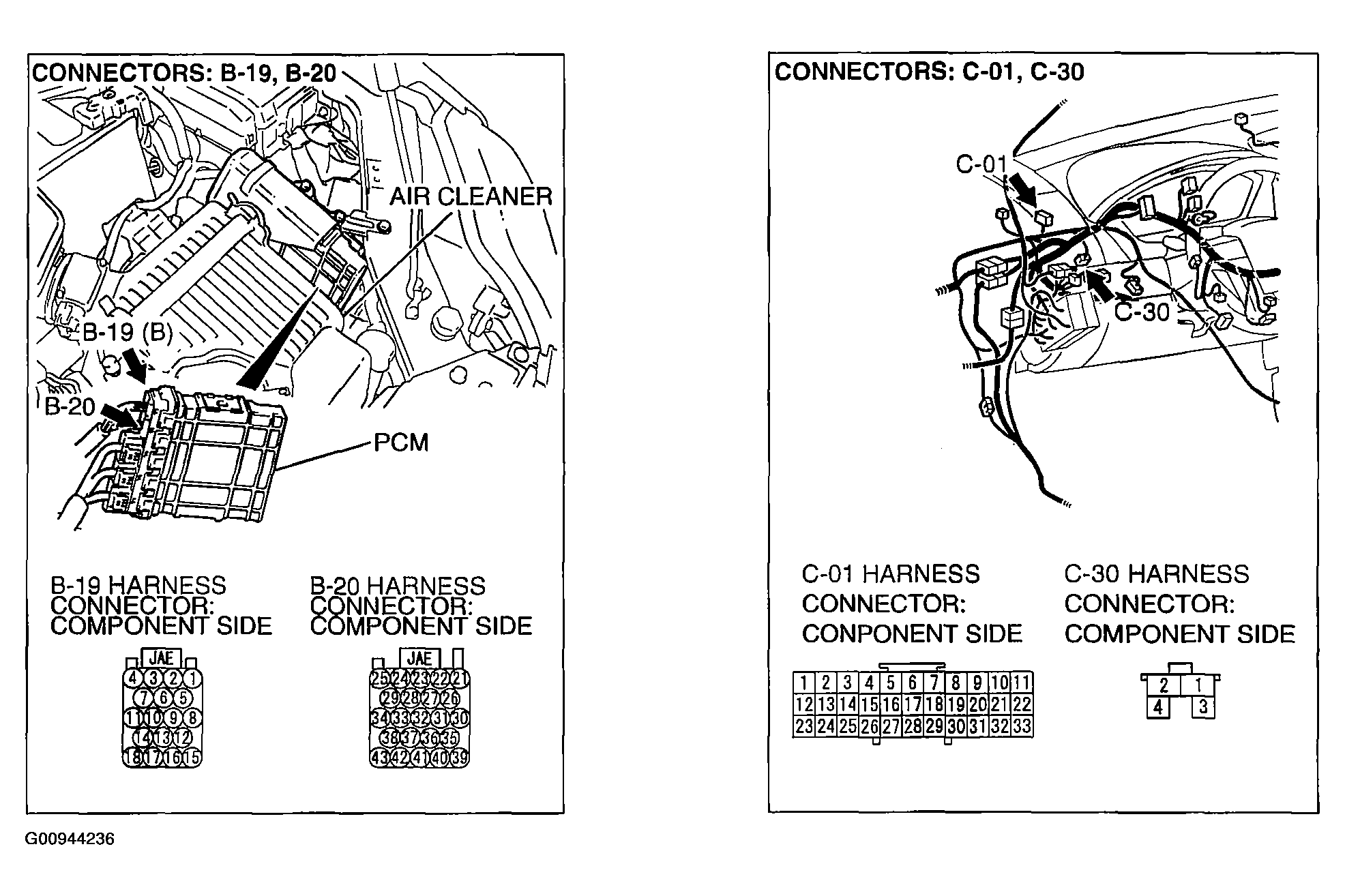

Fig 2: Identifying Connectors: B-19, B-20, C-01, C-30
G00944236Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
