DTC 27 (P0705): Transmission Range Switch System (Open Circuit)
>>
LOGIC FLOW CHARTS (Monitor Sequence)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
LOGIC FLOW CHARTS (Monitor Sequence)

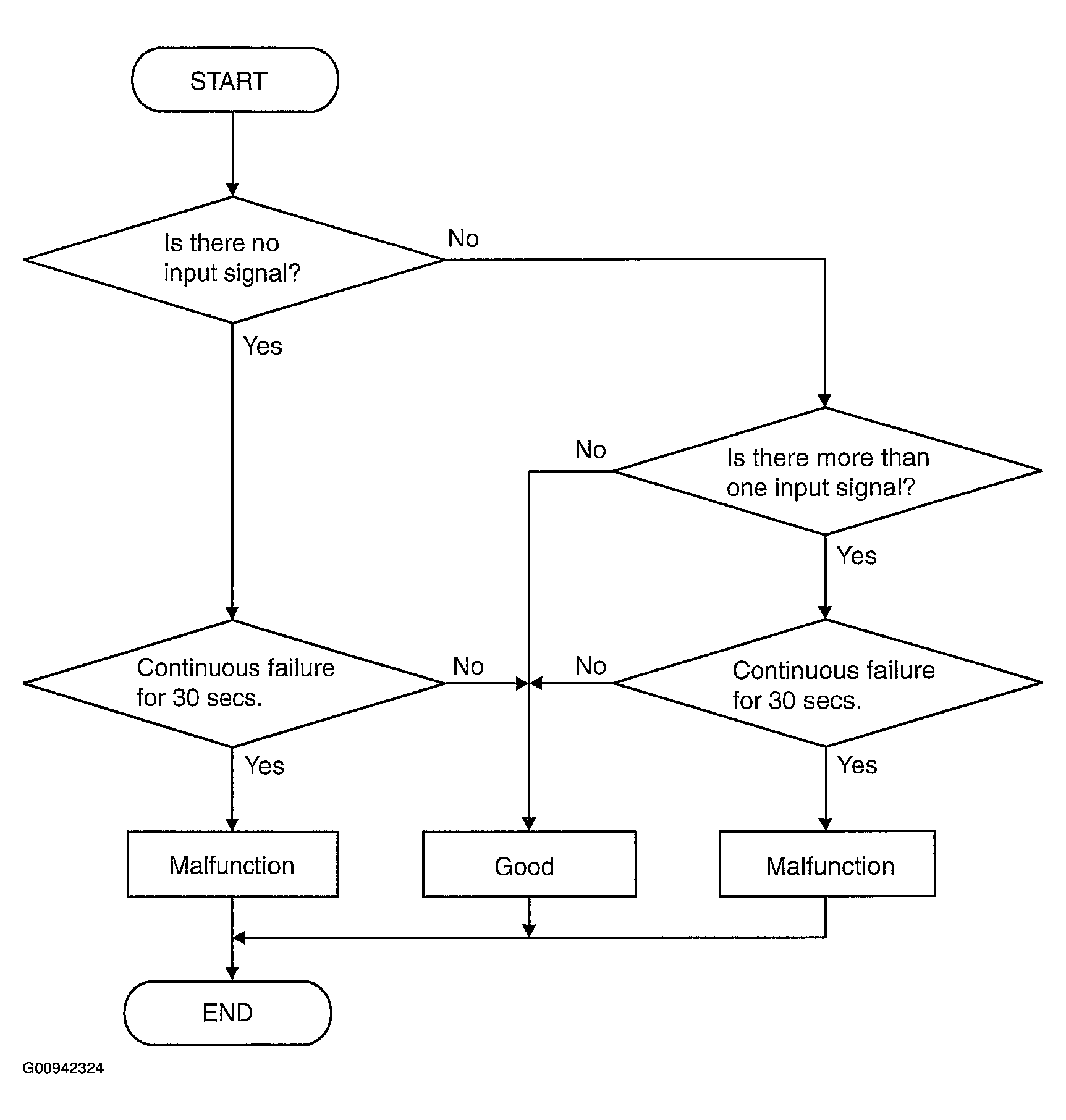

Fig 1: Logic Flow Charts (Monitor Sequence)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
