Transmission Range Switch System Circuit < Vehicles with Sport Mode>

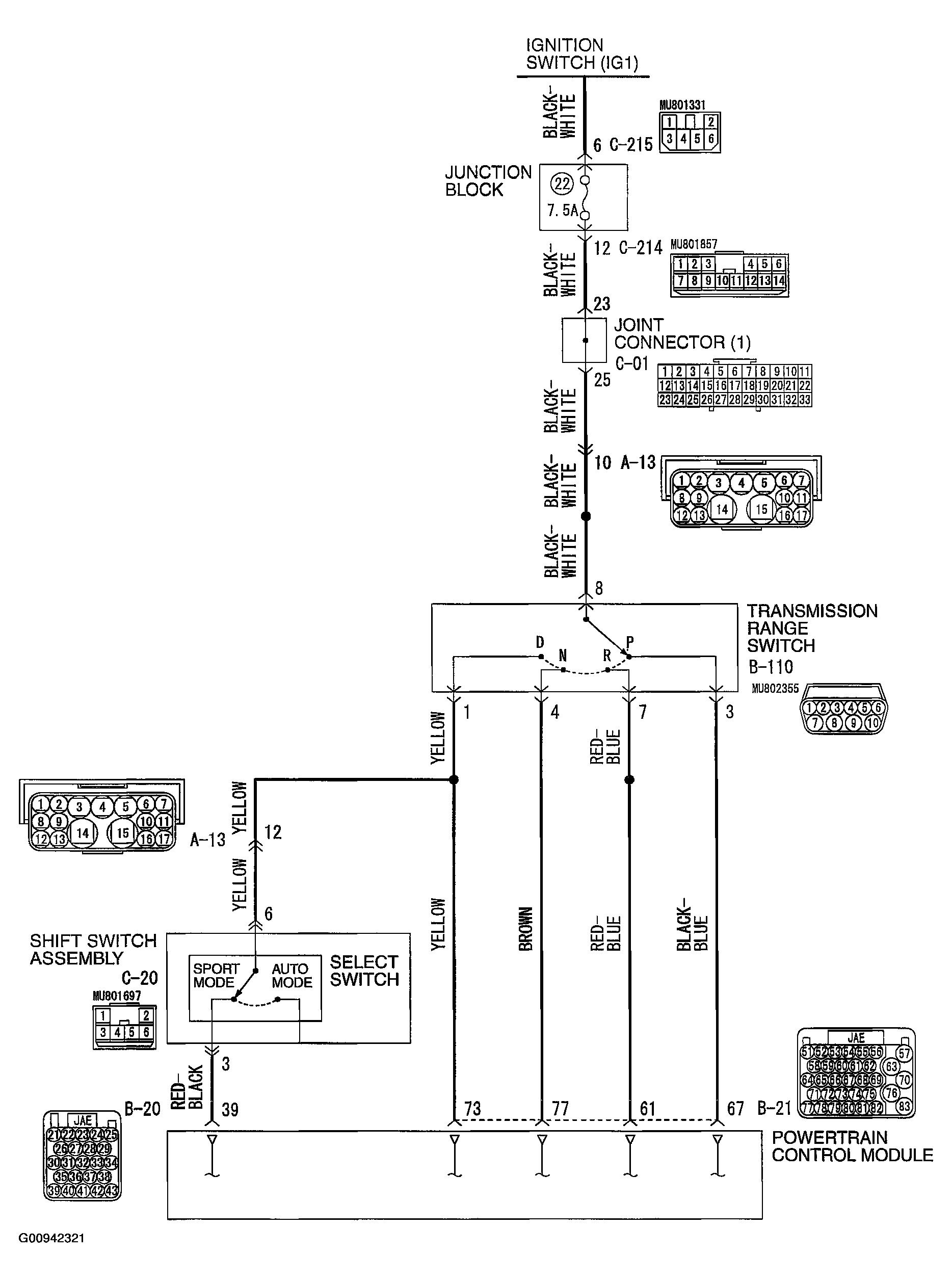

Fig 1: Transmission Range Switch System Circuit (Vehicles With Sport Mode)
G00942321Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
