Communication Circuit (Can Communication Line) Between Pcm And Combination Meter

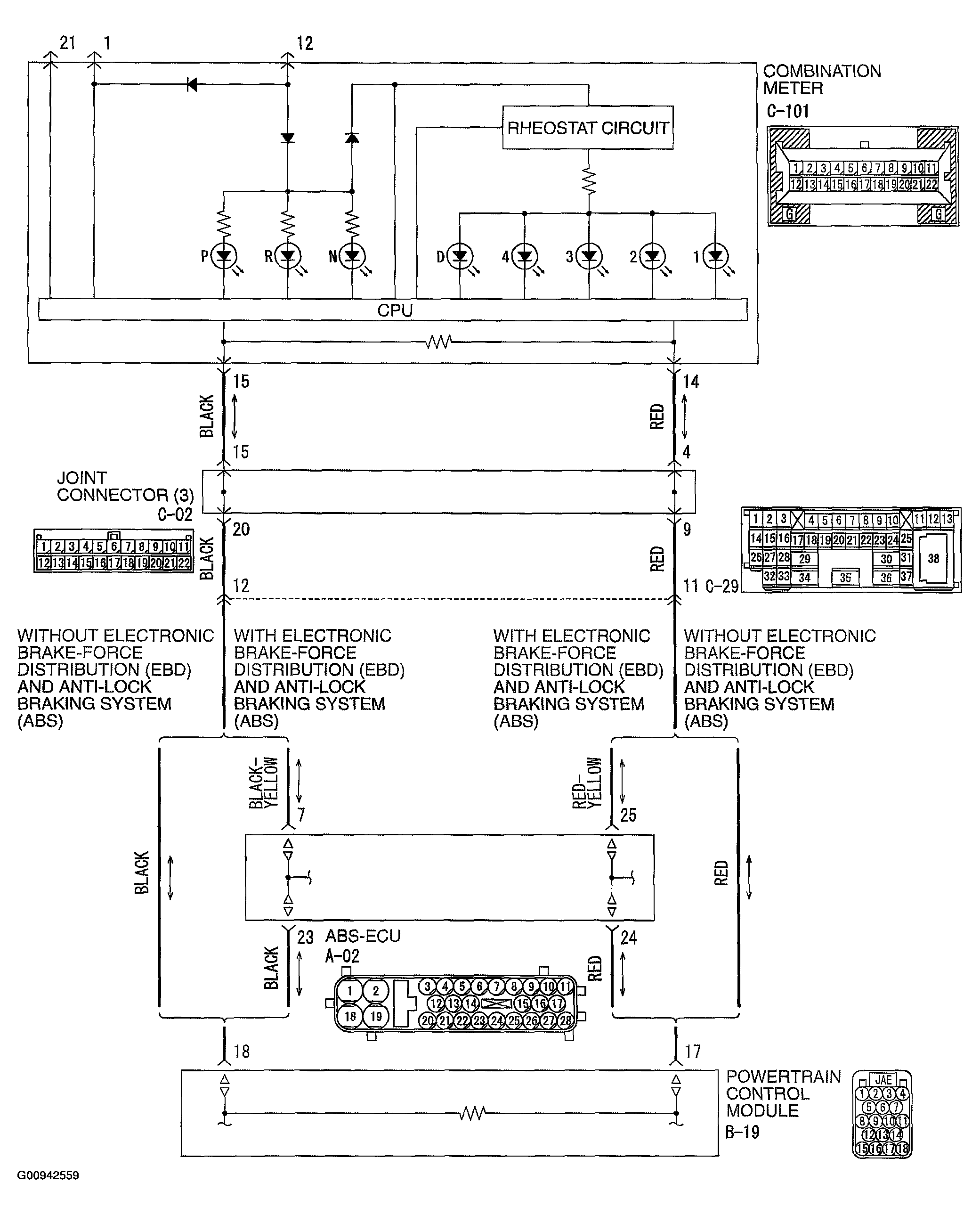

Fig 1: Communication Circuit (CAN Communication Line) Between PCM And Combination Meter
G00942559Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
