Downshift Pattern < F4A5A>

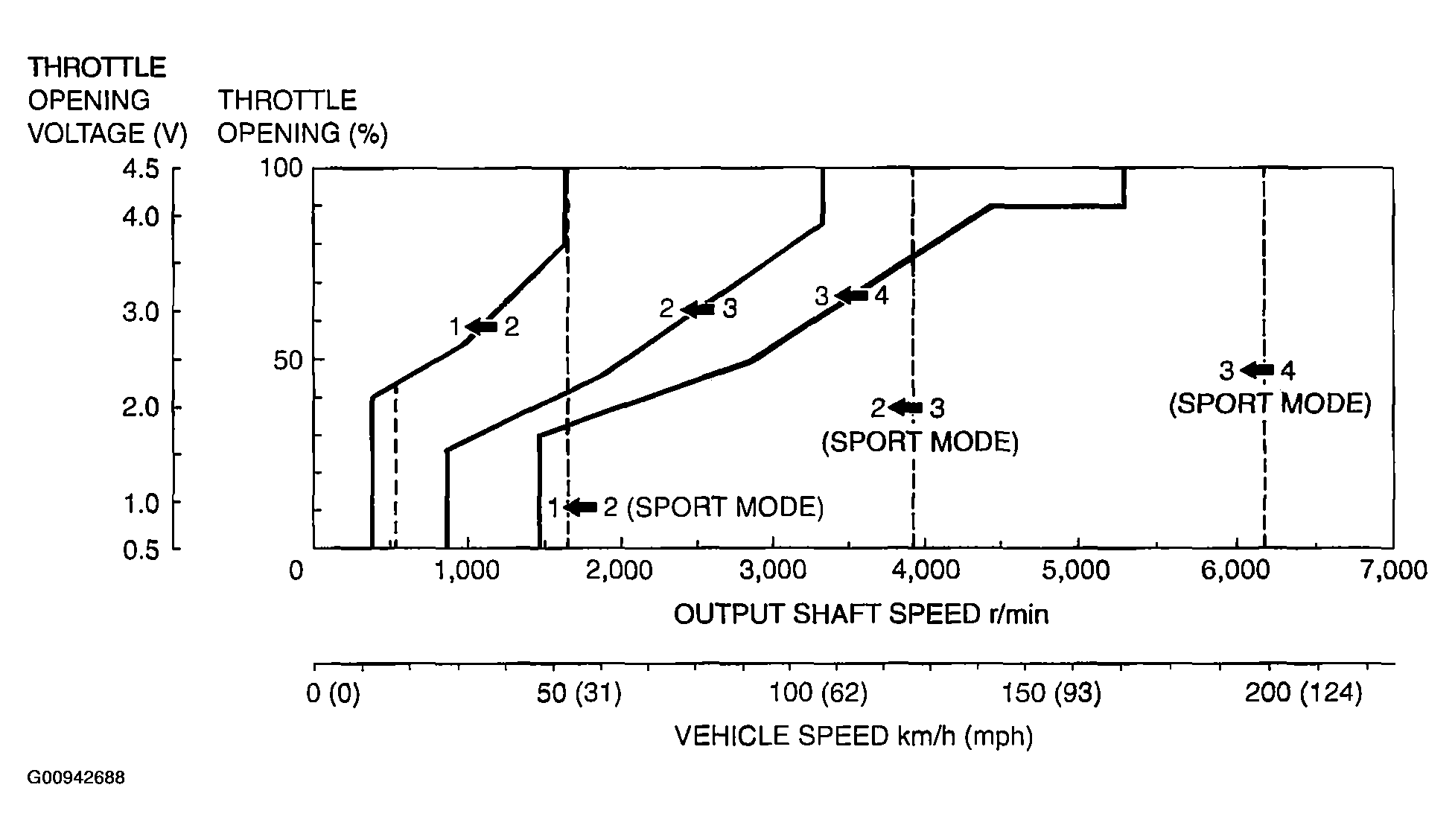

Fig 1: Shift Pattern Control Graph (Downshift Pattern < F4A5A>)
G00942688Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
