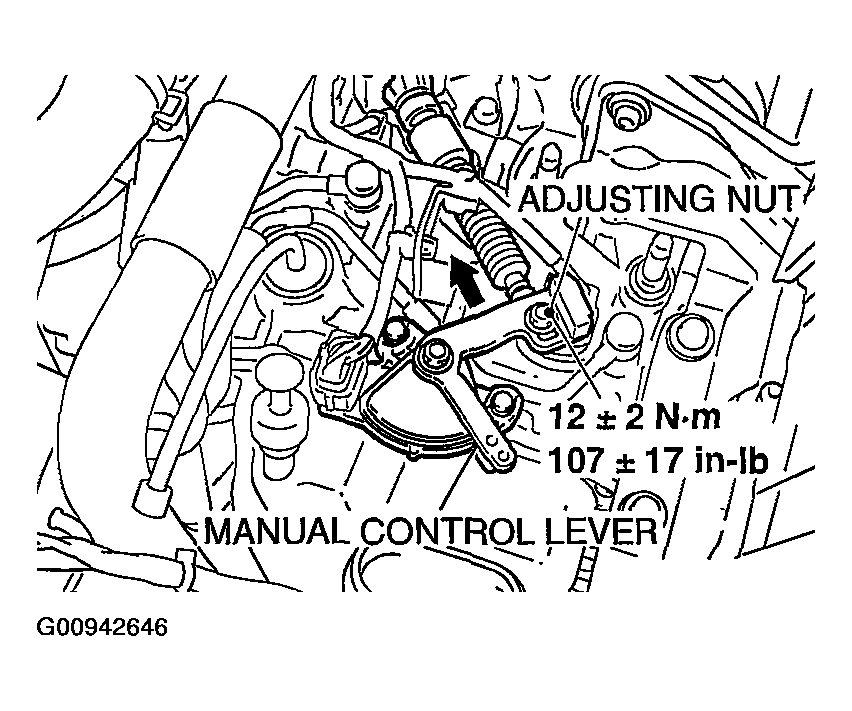

>>E< < Adjusting Nut/Transaxle Control Cable (Transaxle Side) Installation
- Place the selector lever and manual control lever in the "N" position.
- Place the cable stud into the manual control lever slot and install the nut loosely. Gently push the transaxle control cable into the manual control lever slot until the cable is taut. Tighten the nut to the specified torque.
Tightening torque: 12 +/- 2 N.m (107 +/- 17 in-lb)
