<< E>> Engine Assembly Supporting

< Engine hanger (special tool MB991895) is used>
1. Set special tool MB991895 (engine hanger) to the front fender assembling bolts (A and B) and (C and D) as shown.

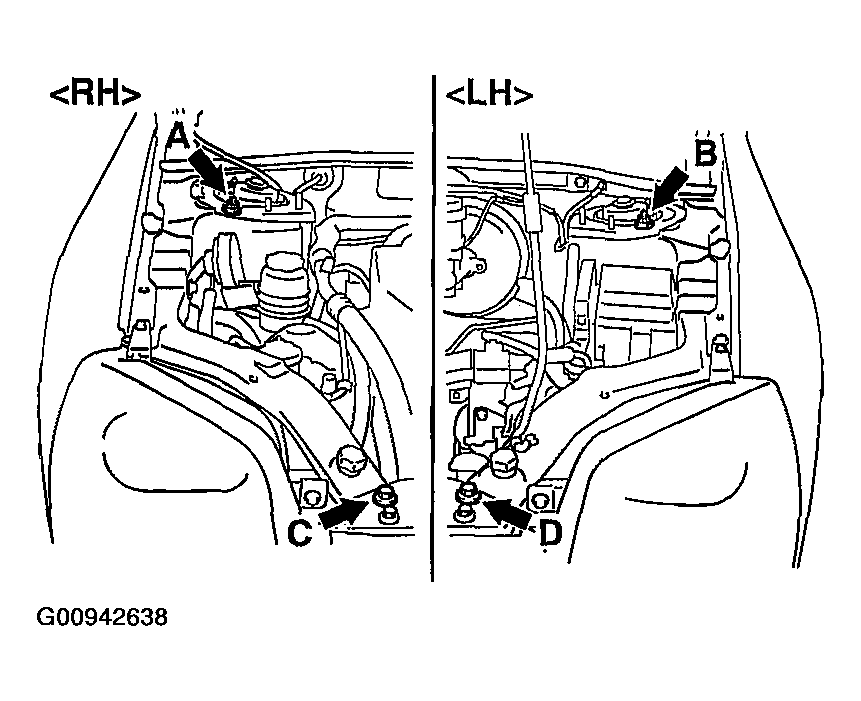

  Fig 1: Identifying Front Fender Assembling Bolts
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Set special tool MB991527 and MB991454 (chain) to hold the engine/transaxle assembly.

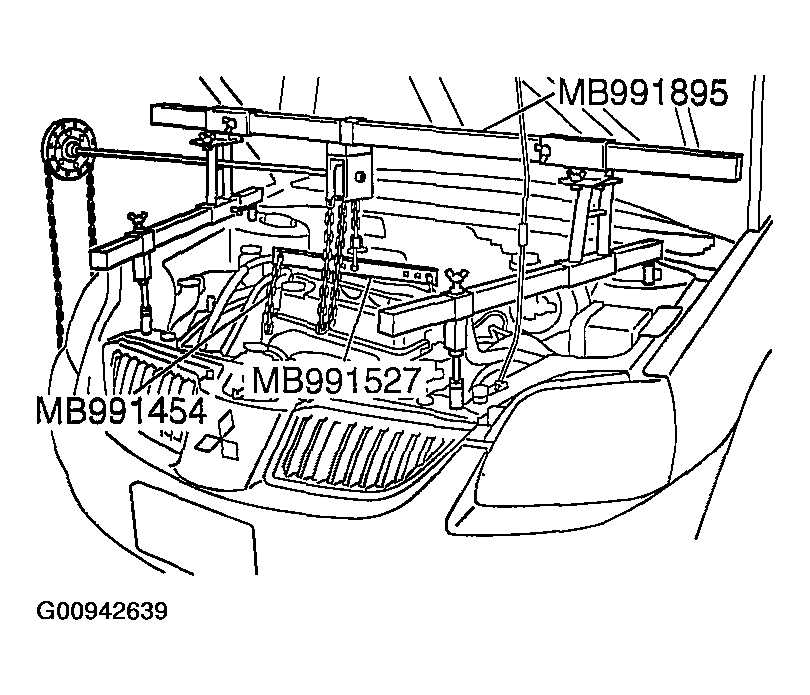

  Fig 2: Holding Engine/Transaxle Assembly Using Special Tool MB991527 And MB991454 (Chain)
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
< Engine hanger (special tool MB991928) is used>
1. Assemble the engine hanger (special tool MB991928). Attach following parts to the base hanger.)
  - SLIDE BRACKET (HI)
  - FOOT (STANDARD) (MB991932) < FRONT SIDE>
  - JOINT (90) (MB991930)
  - FOOT (SHORT) (MB991933) < REAR SIDE>

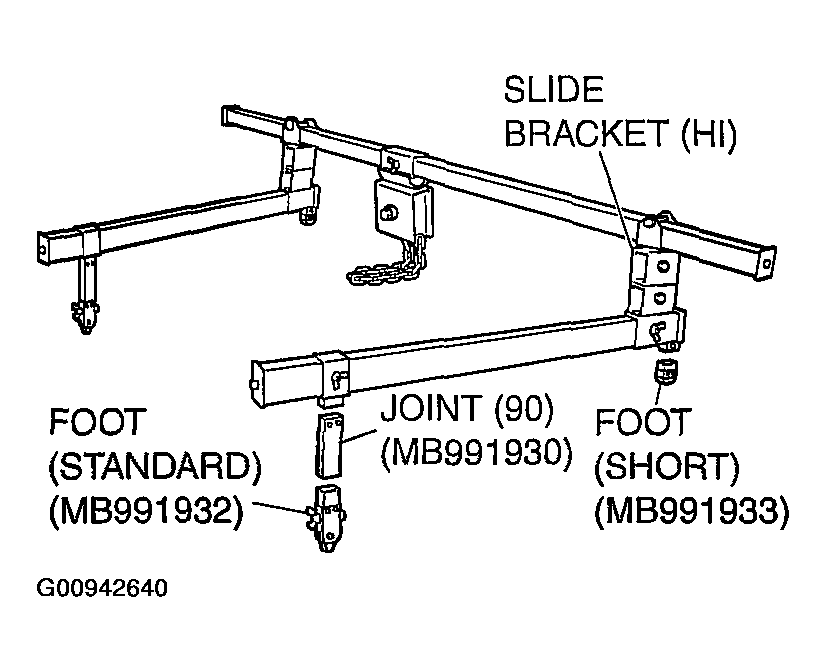

    Fig 3: Assembling Engine Hanger
    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Set special tool MB991928 (engine hanger) to the front fender assembling bolts (A and B) and (C and D) as shown.

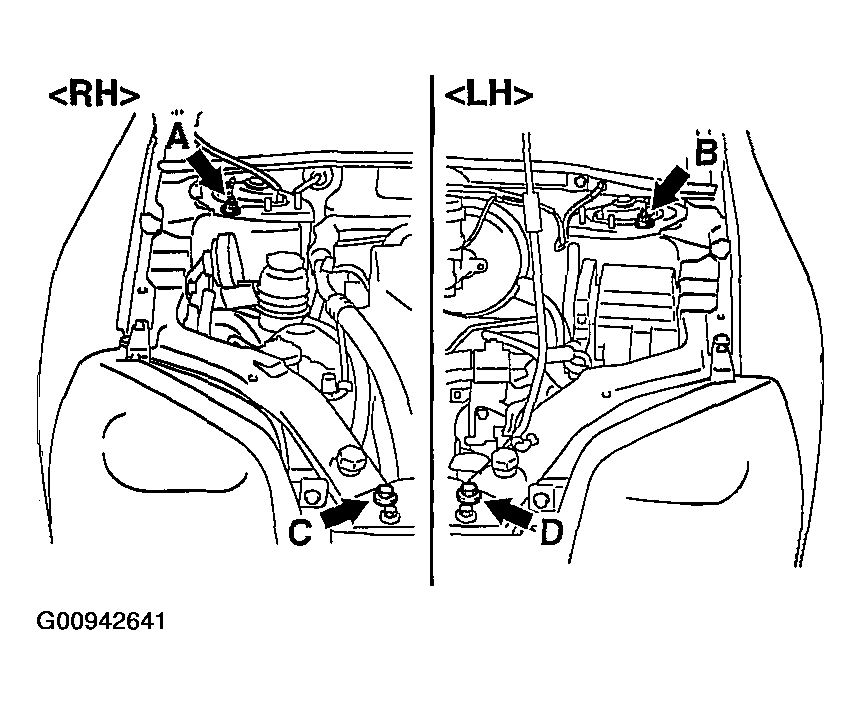

Fig 4: Identifying Front Fender Assembling Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Position special tool MB991527 and MB991454 (chain) to hold the engine/transaxle assembly.
NOTE: Adjust the engine hanger balance by sliding the slide bracket (HI).

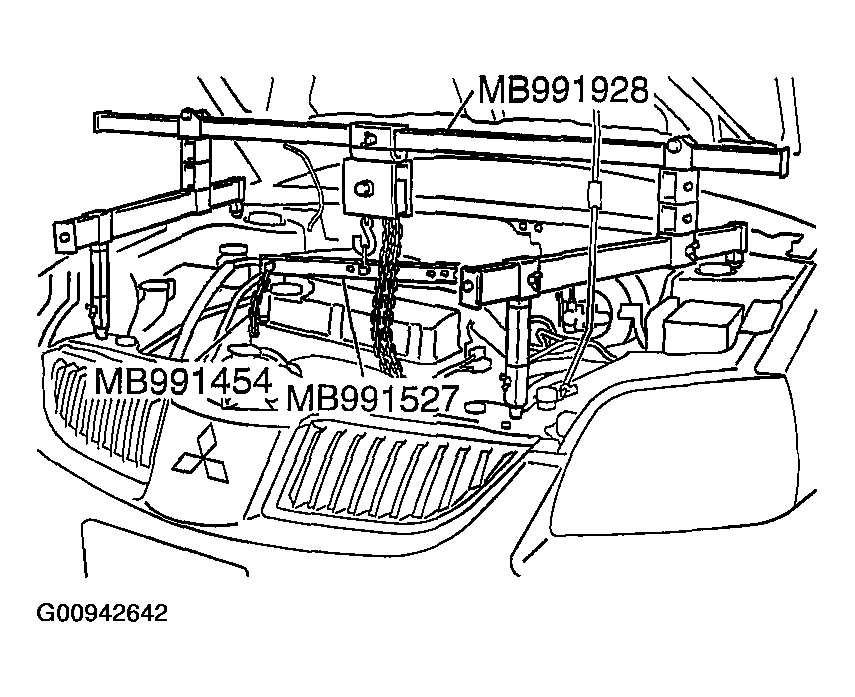

Fig 5: Positioning Special Tool MB991527 And MB991454 (Chain) For Holding Engine/Transaxle Assembly
