Communication Circuit

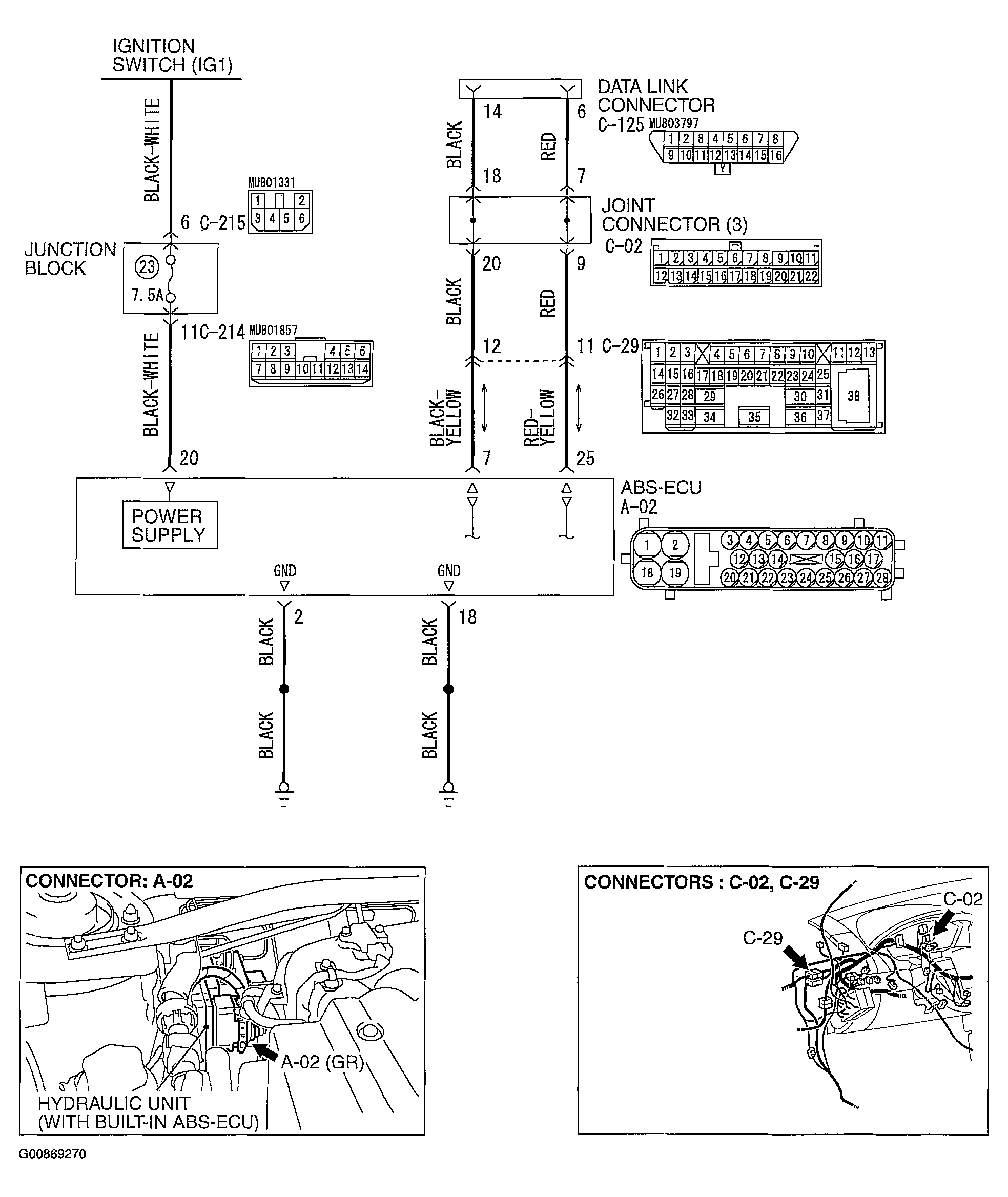

Fig 1: Communication Circuit & Connectors
G00869270Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

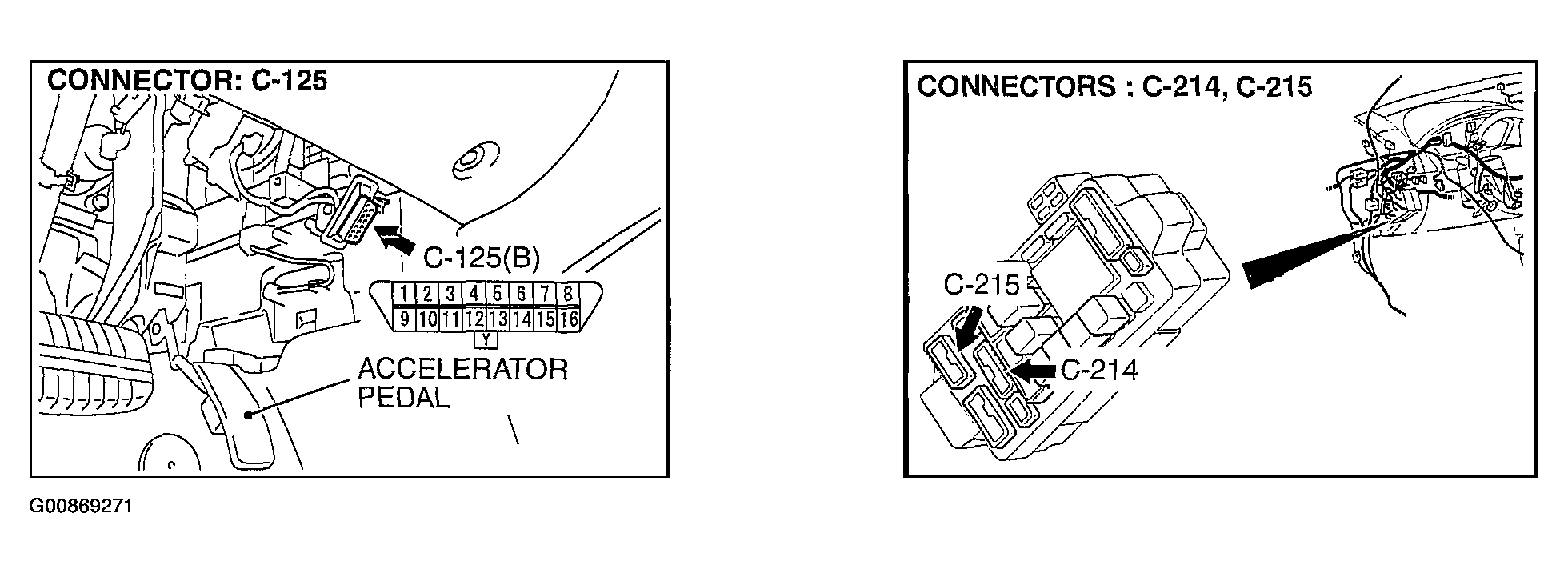

Fig 2: Identifying Connectors
G00869271Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
