Generators & Regulators: Overhaul: Generator: Notes

For 2.4L disassembly procedures, see Fig 1 . For 3.8L disassembly procedures, see Fig 2 .

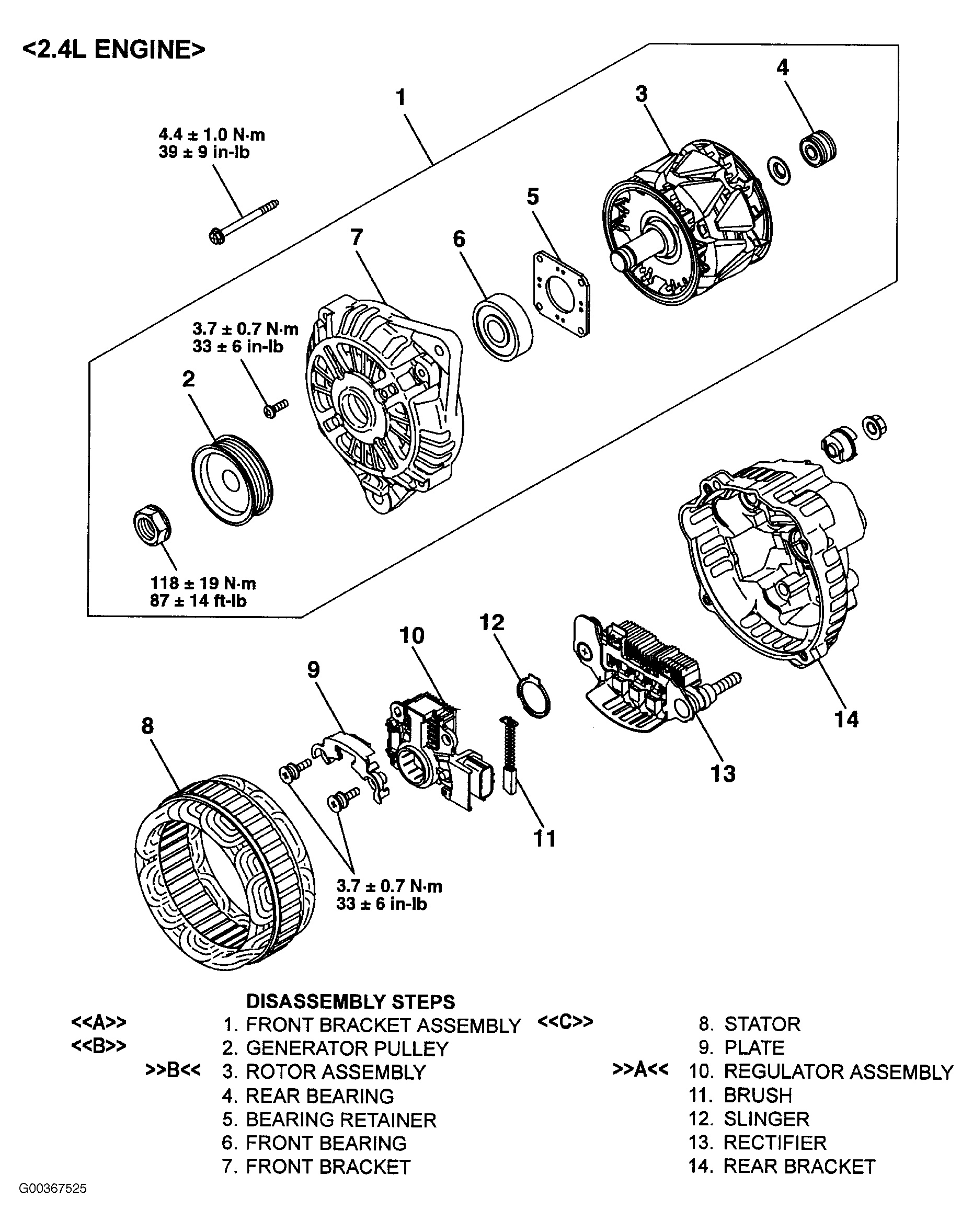

Fig 1: Exploded View Of Generator Disassembly & Assembly (2.4L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

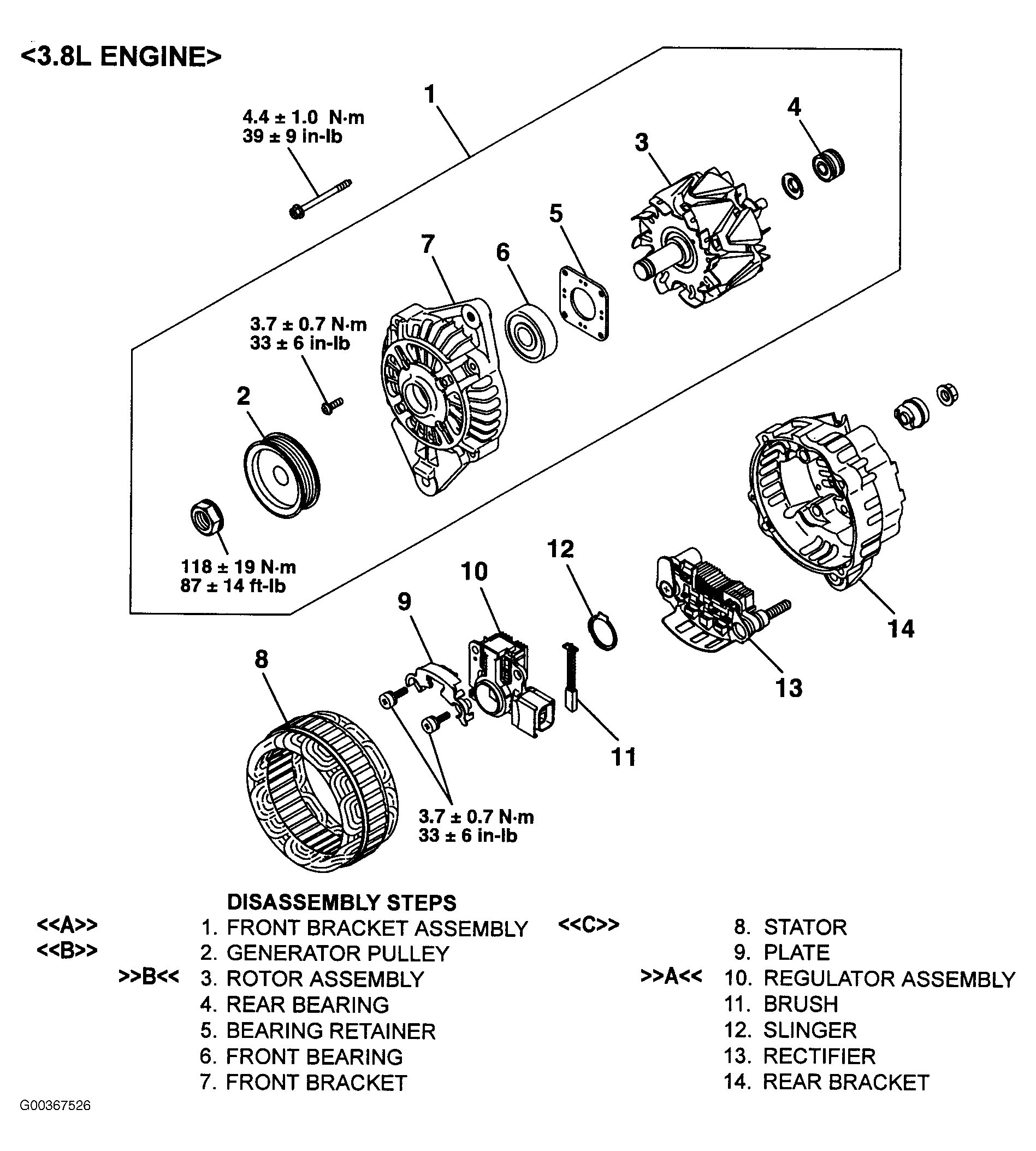

Fig 2: Exploded View Of Generator Disassembly & Assembly (3.8L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
