Windshield Wiper And Windshield Washer Switch Input Circuit

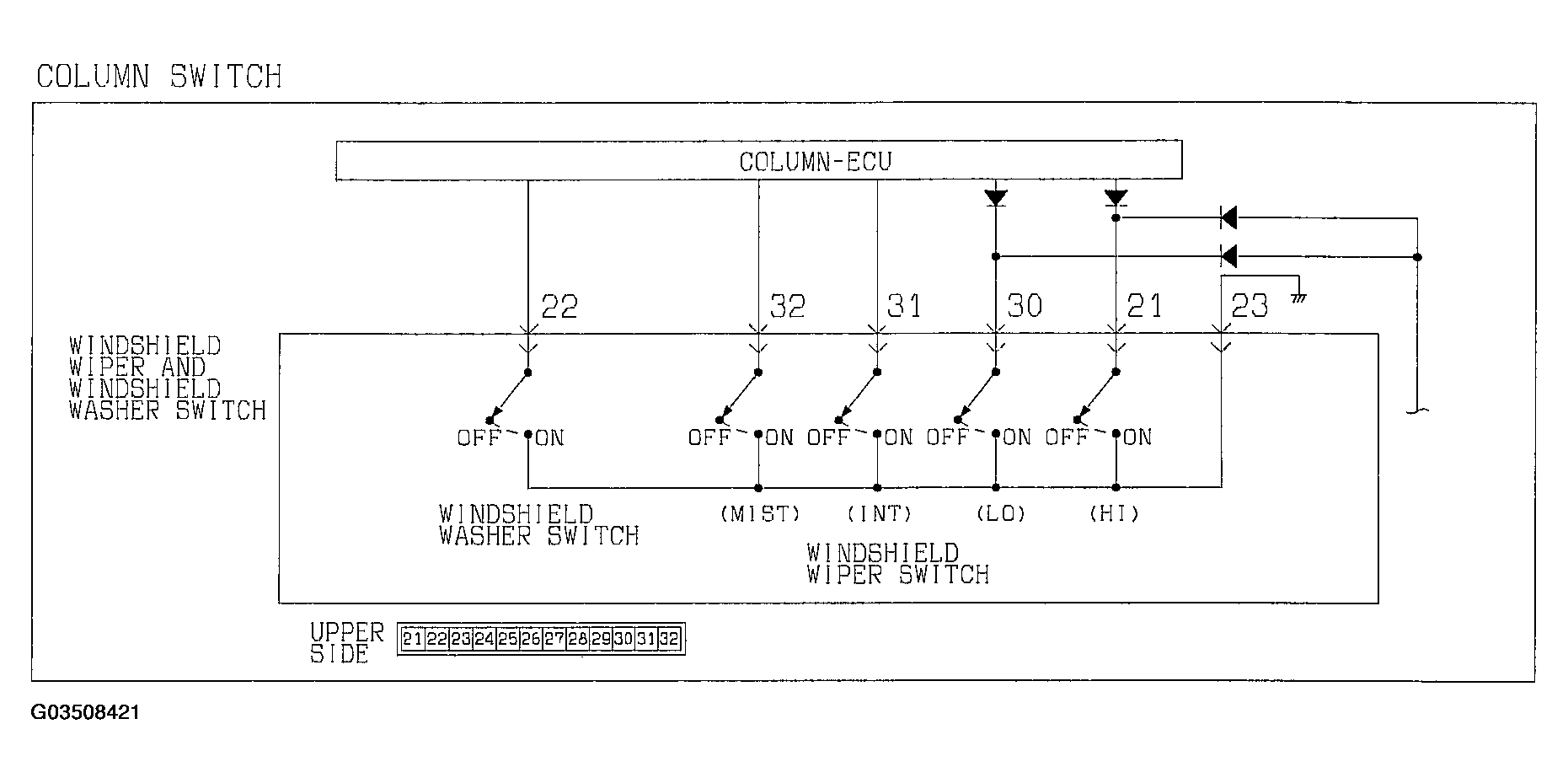

Fig 1: View Of Windshield Wiper And Windshield Washer Switch Input Circuit Diagram
G03508421Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
