Windshield Intermittent Wiper Interval Adjusting Knob Input Circuit

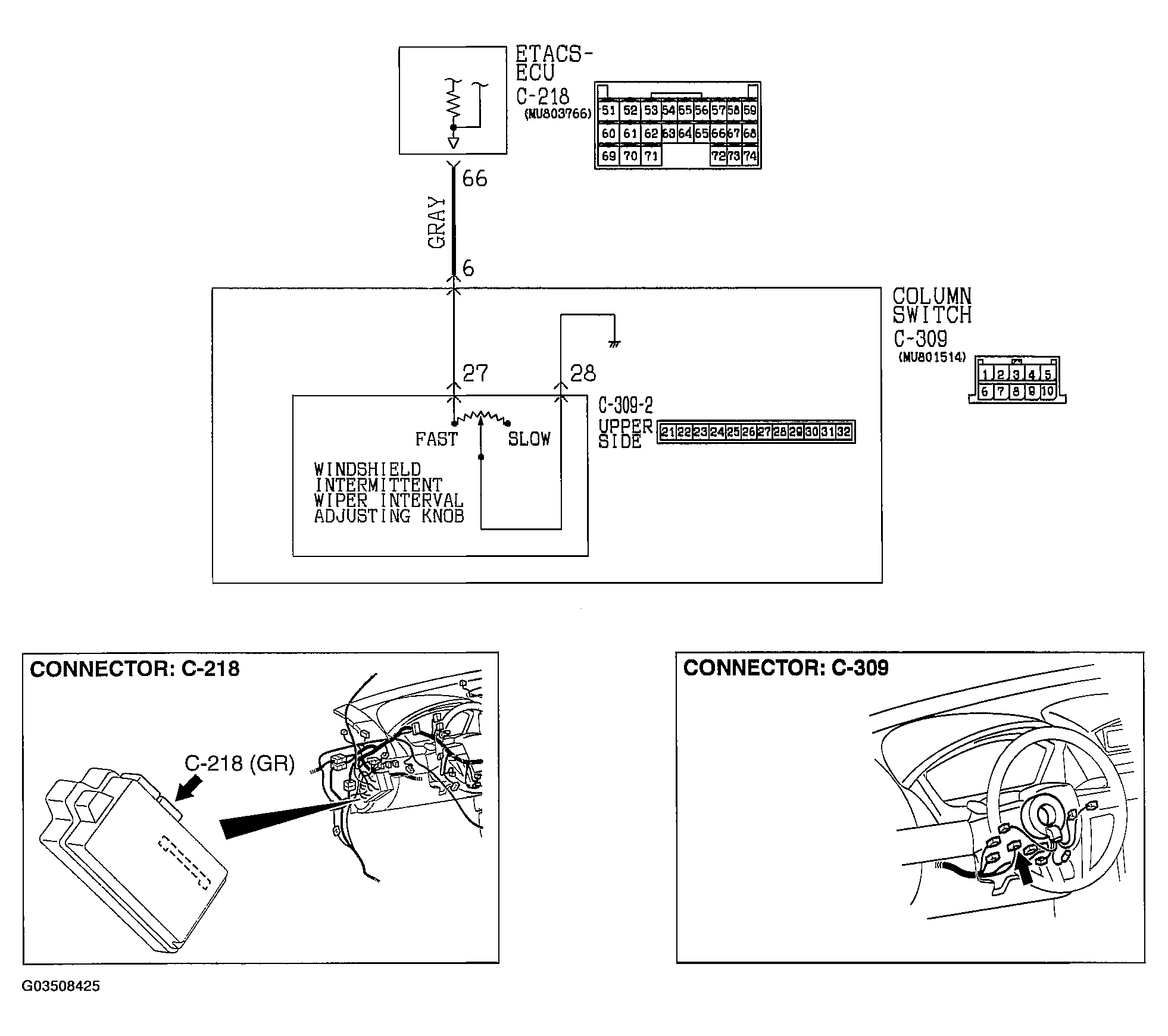

Fig 1: View Of Windshield Intermittent Wiper Interval Adjusting Knob Circuit Diagram And Connectors
G03508425Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
