Power Window Timer Function Circuit

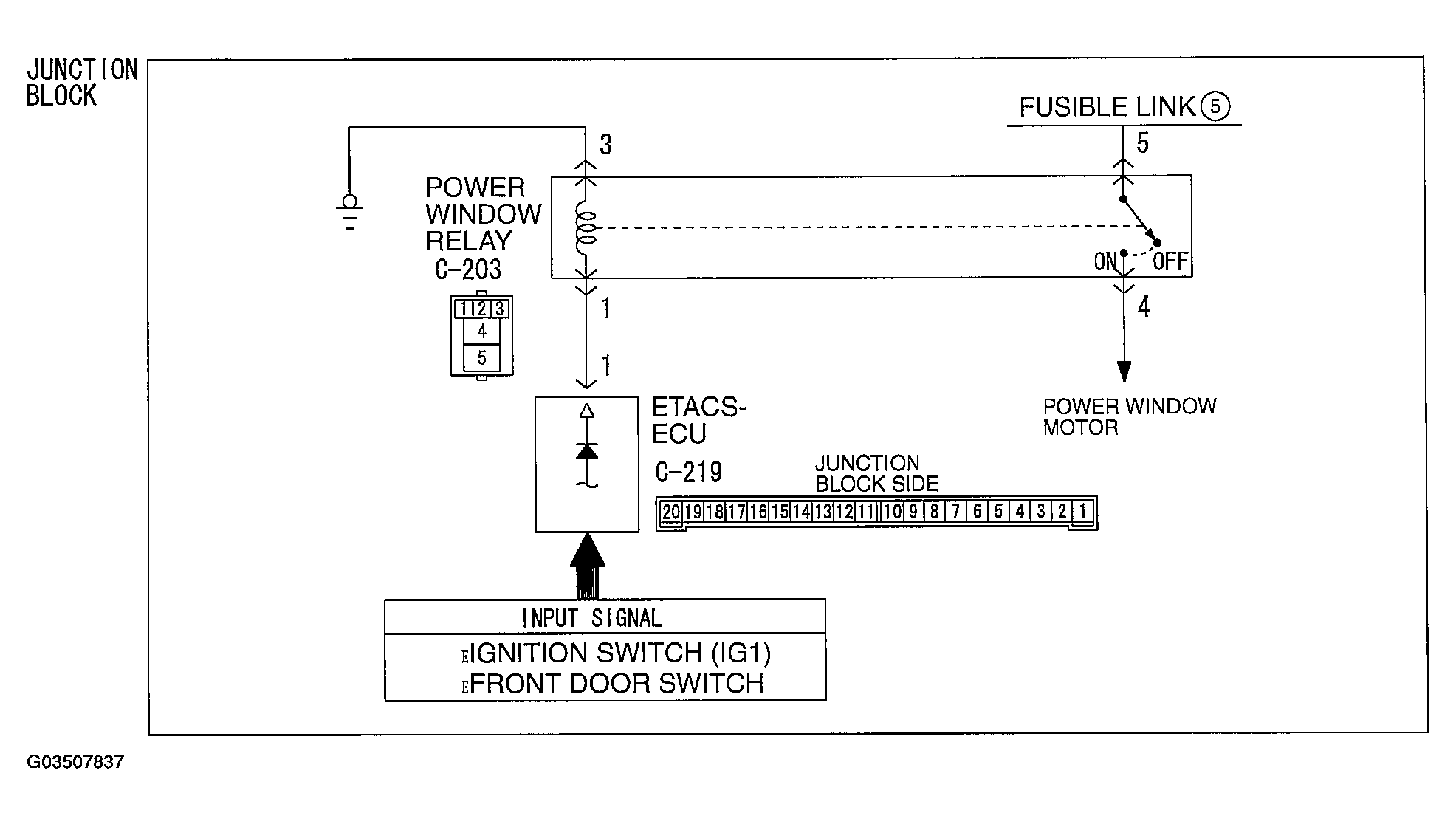

Fig 1: View Of Power Window Timer Function Circuit Diagram
G03507837Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
