<< C >> Center Bearing Installation

Use special tools MB990938 and MB990932 to press-fit the center bearing into the center bearing bracket.

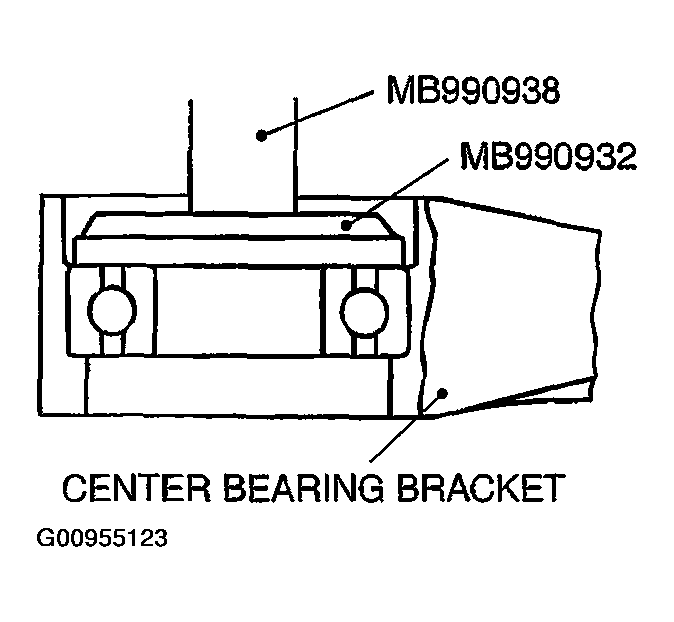

Fig 1: Pressing Center Bearing Into Center Bearing Bracket

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
