Removal And Installation: Notes

CAUTION:
  • For vehicles with ABS, do not strike the ABS rotors installed to the BJ outer race of driveshaft against other parts when removing or installing the drive shaft Otherwise the ABS rotors will be damaged.
  • For vehicles ABS, be careful not to strike the pole piece at the tip of the front ABS sensor with tools during servicing work.

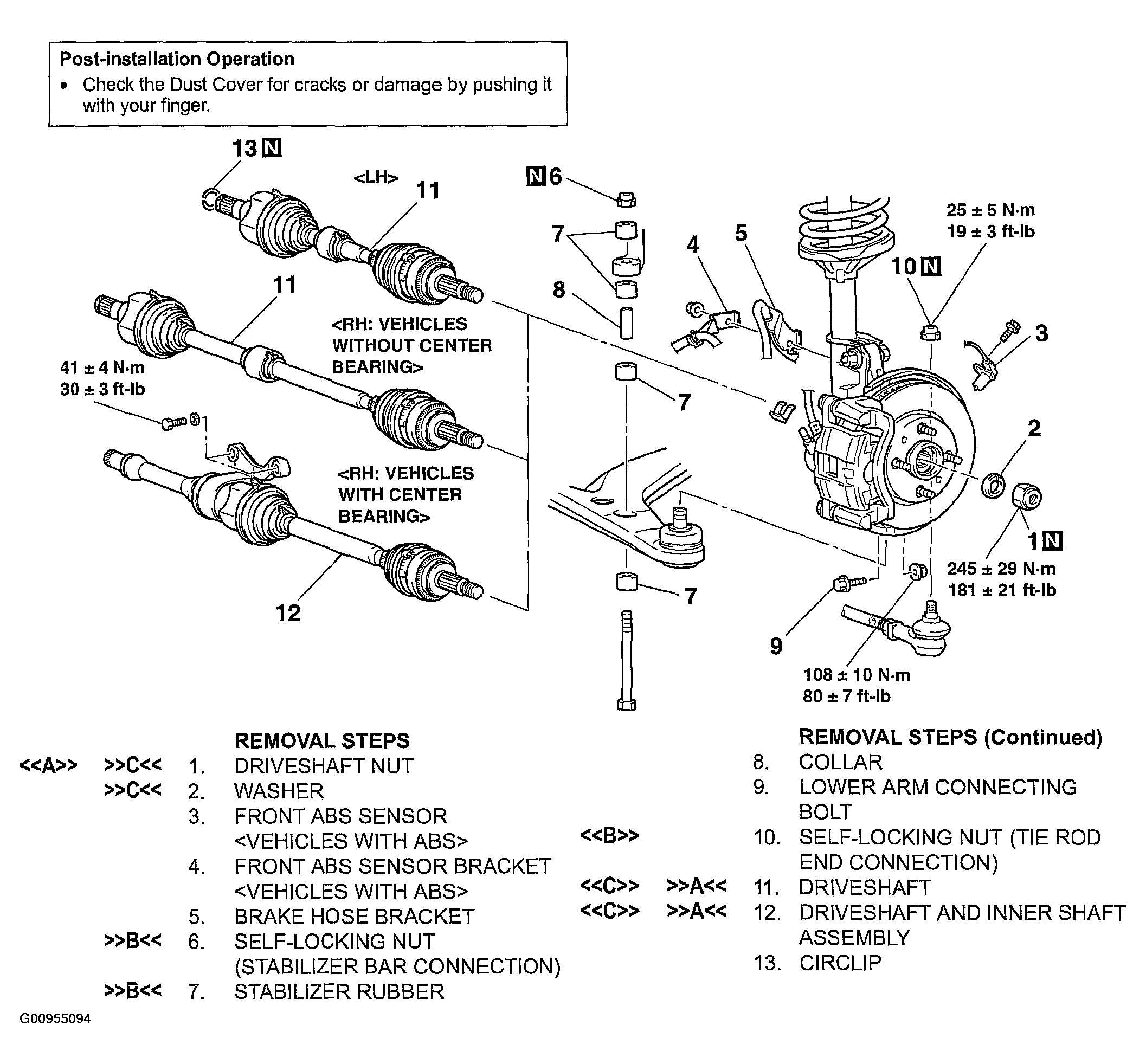

Fig 1: Removing And Installing Driveshaft Assembly Components
G00955094Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
