<< B >> Wheel Bearing Removal

Crush the oil seal in two places so that the tabs of the special tool will be caught on the wheel bearing inner race (outside).

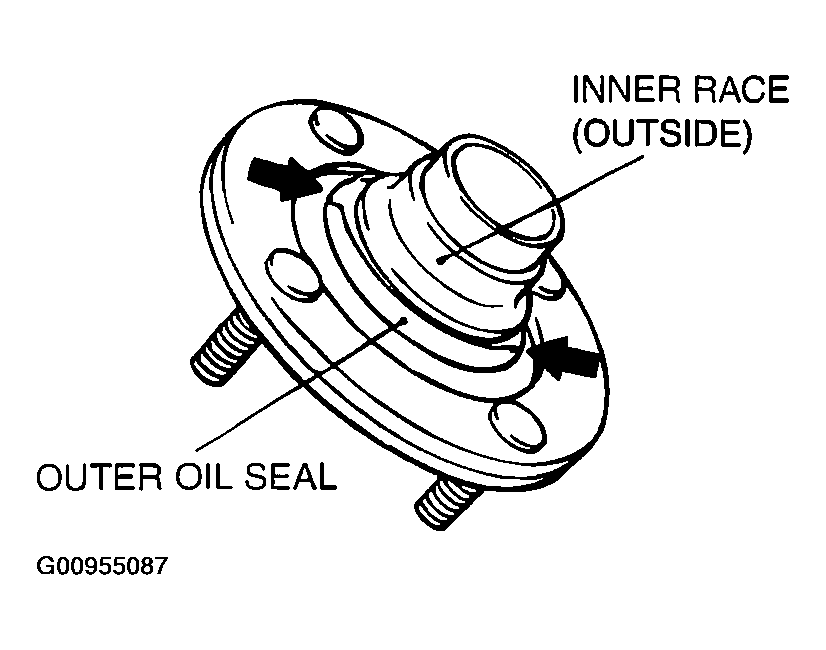

Fig 1: Locating Oil Seal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: When removing the inner race (outside) from the hub, be careful not to let the hub drop.
Remove the wheel bearing inner race (outside) from the front hub by using special tool MB990810.

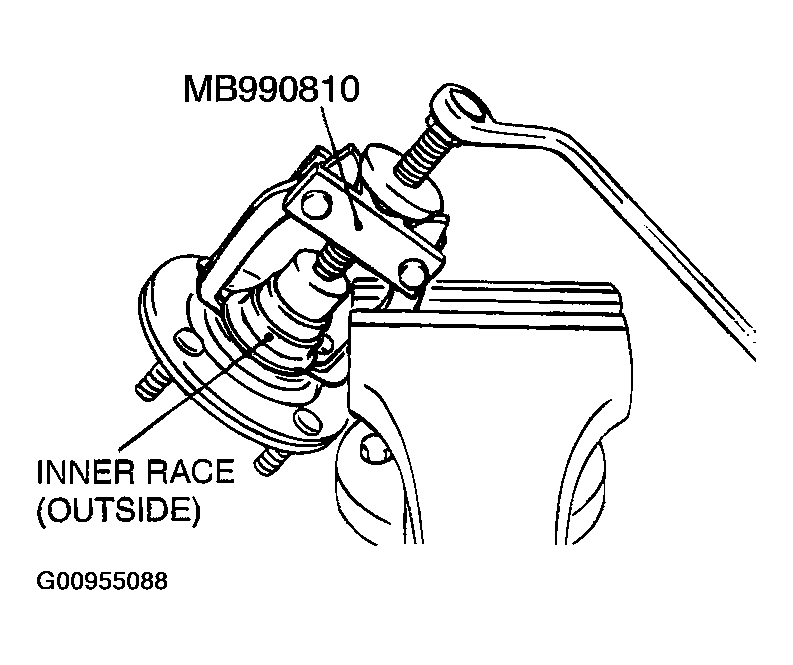

Fig 2: Removing Wheel Bearing Inner Race Using Special Tool MB990810
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the inner race (outside) that was removal from the hub to the wheel bearing, and then use special tools MB990933 < Vehicles without center bearing: LL, L>, MB990935 < Vehicles without center bearing: M, SPORT, Vehicles with center bearing<, MB990938, MB991056 or MB991355 to remove the wheel bearing.

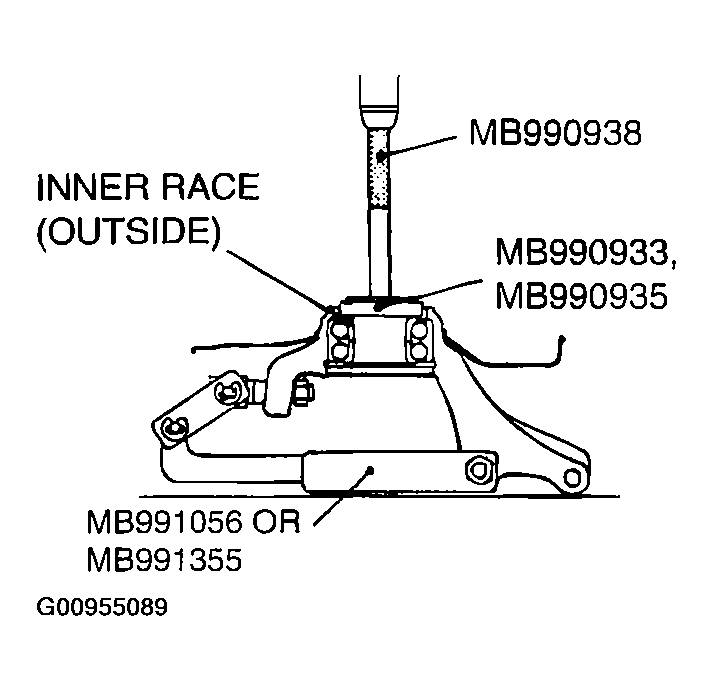

Fig 3: Installing Inner Race (Outside)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
