<< A >> Stabilizer Rubber/Self-Locking Nut (Stabilizer Bar Connection) Installation

Install the stabilizer rubber and collar as shown in the figure and tighten the self-locking nut so that the protruding length of the stabilizer bar mounting bolt protruding part meets its standard value. (A).

1. Standard value (A): 22 +/- 1.5 mm (0.87 +/- 0.06 inch)

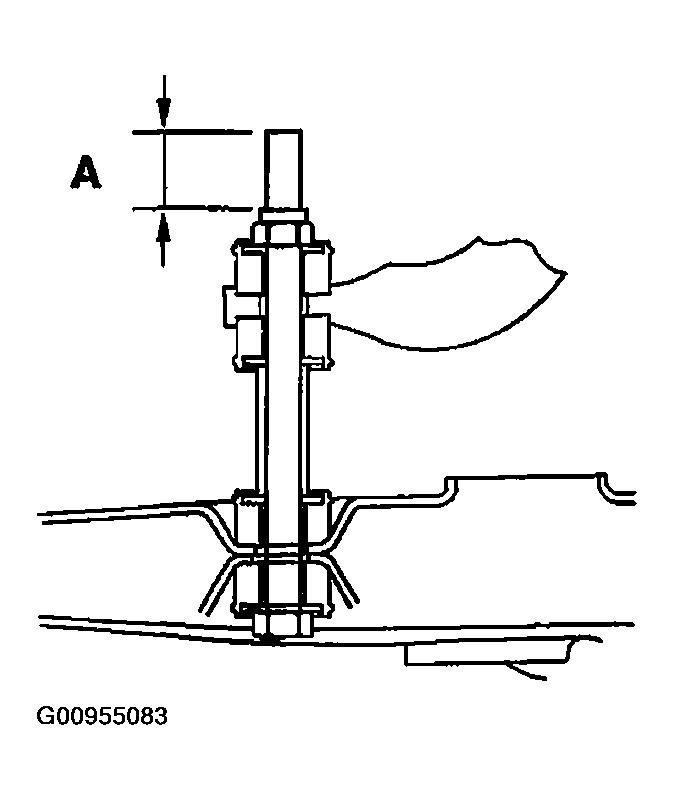

Fig 1: Installing Stabilizer Rubber And Collar

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
