<< A >> Steering Shaft Assembly Installation

< When re-using steering shaft assembly >

CAUTION: Do not release the tilt lever until the steering column shaft assembly has been installed.

Ensure that the tilt lever is in the lock position, and install the steering shaft assembly. Tighten the four bolts in the order shown by hand, and then tighten them to the specified torque in the order shown.

Fig 1: Removing Steering Shaft Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Tightening torque: 12 +/- 2 N.m (102+/-22 in-b)

< When replacing steering shaft assembly (Replacement tilt lever with fixing band >

CAUTION:

Do not release the tilt lever until the steering shaft assembly has been installed.
Remove the fixing band after the installation has been done.

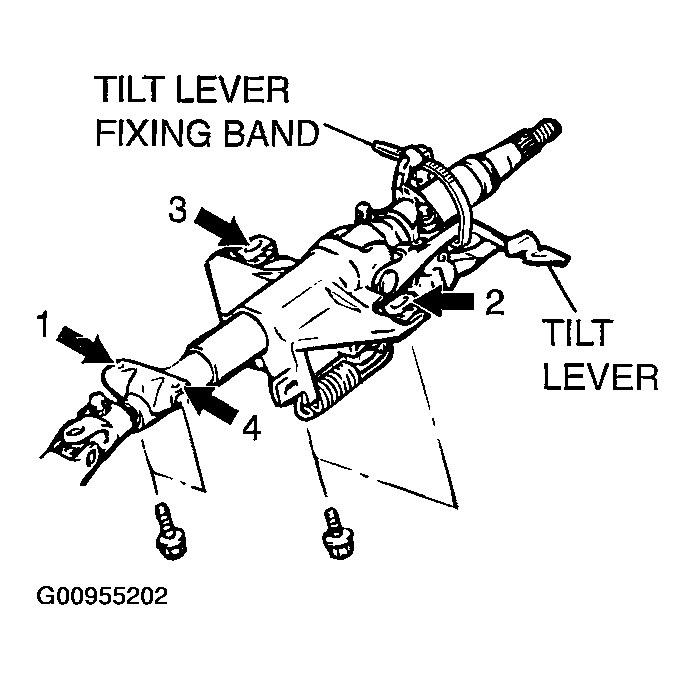

Fig 2: Tightening Steering Shaft Assembly Bolts

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Tightening torque: 12 +/- N.m (102 +/- 22 in-lb)

< When replacing steering shaft assembly (Replacement tilt lever without fixing band) >

CAUTION: Do not release the tilt lever until the steering shaft assembly has been installed.

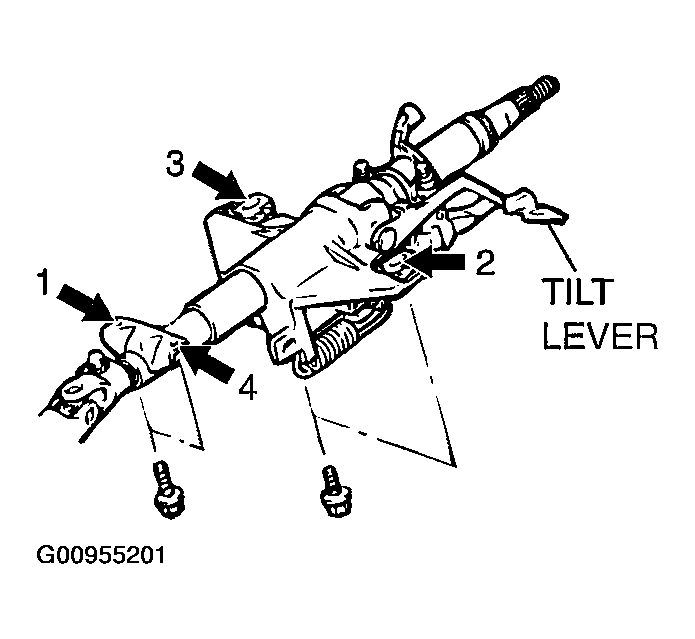

Fig 3: Tightening Steering Shaft Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Tightening torque: 12+/-2 N.m (102 +/- 22 in-lb)
