P4ARKING Brake Switch
WARNING: This page is about a different variant/trim than selected.

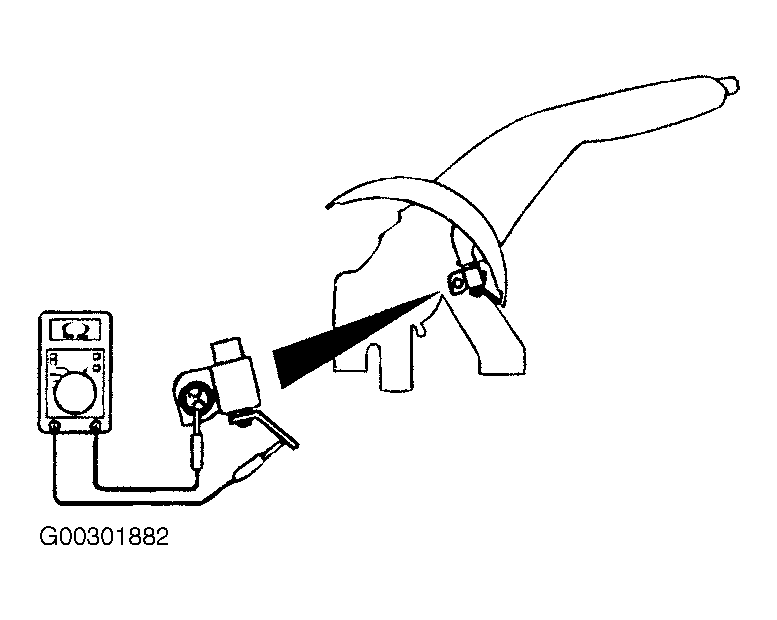

Remove floor console. Remove right front seat. Check continuity between parking brake switch terminal and switch mounting bolt. See Fig 1 . When parking brake lever is pulled, resistance should be less than 2 ohms. When parking brake lever is released, circuit should be open.
