Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in Fig 1 .

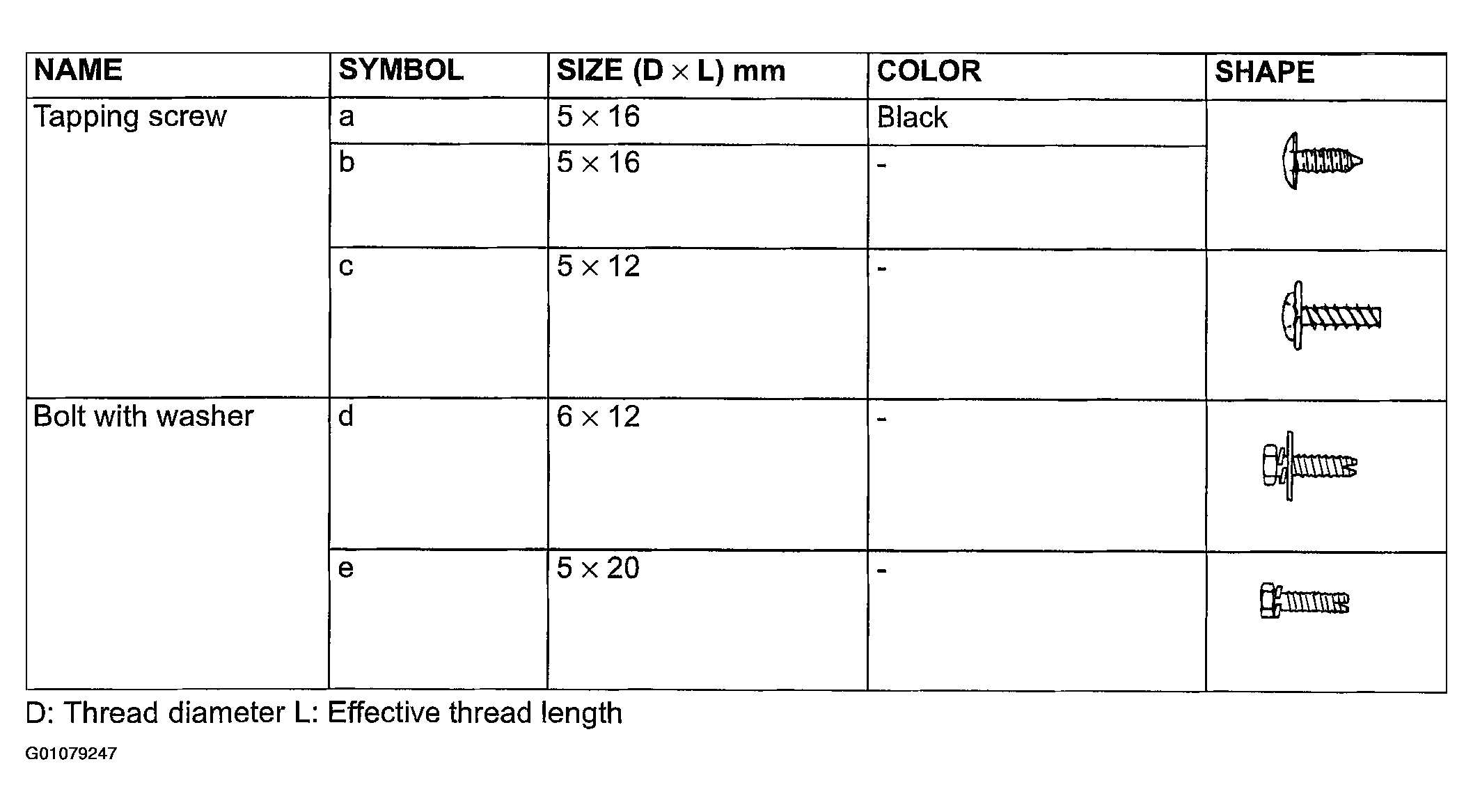

Fig 1: Identifying Instrument Panel Bolts And Screws

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

Refer to AIR BAG SAFETY PRECAUTIONS and PASSENGER-SIDE AIR BAG MODULE before removing the passenger side air bag module.
Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.

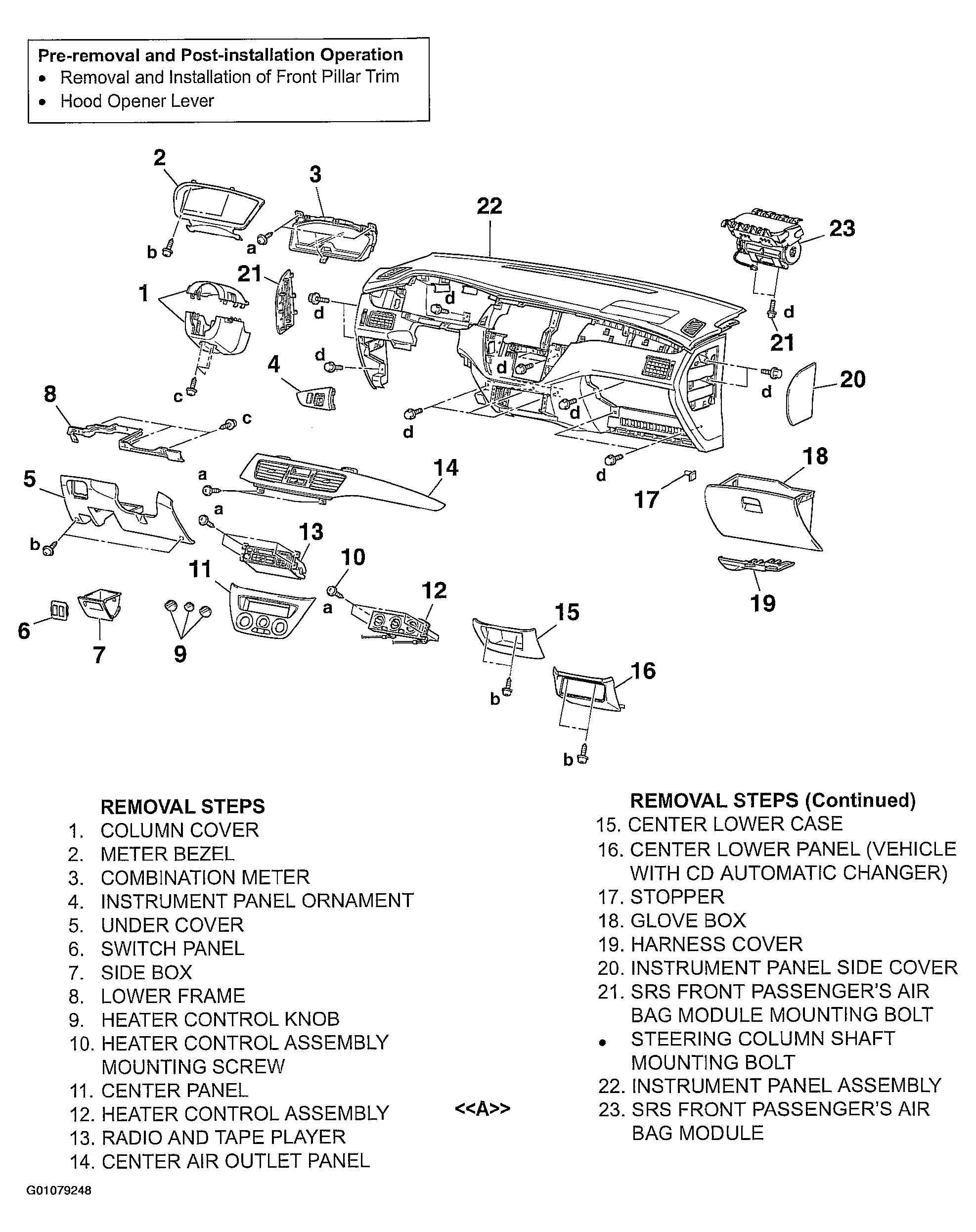

Fig 2: Removing Instrument Panel Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
