DTC 17: Throttle Position Sensor and Idle Position Signal System < M/T >: Notes

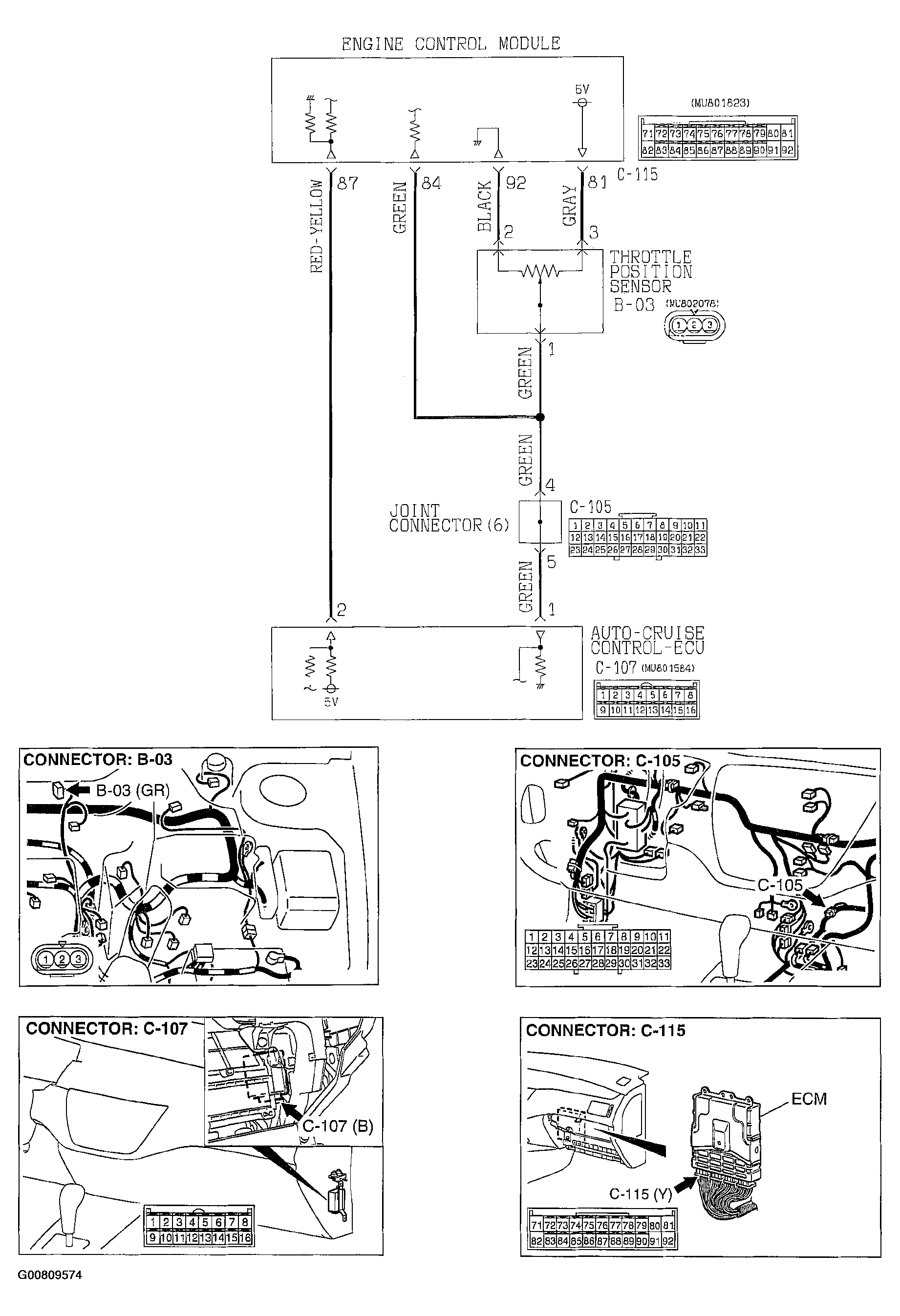

Fig 1: Positioning Sensor And Idle Position Signal System (M/T) Circuit Diagram & Connector Identification
G00809574Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
