<< E >> Inner Shaft Installation

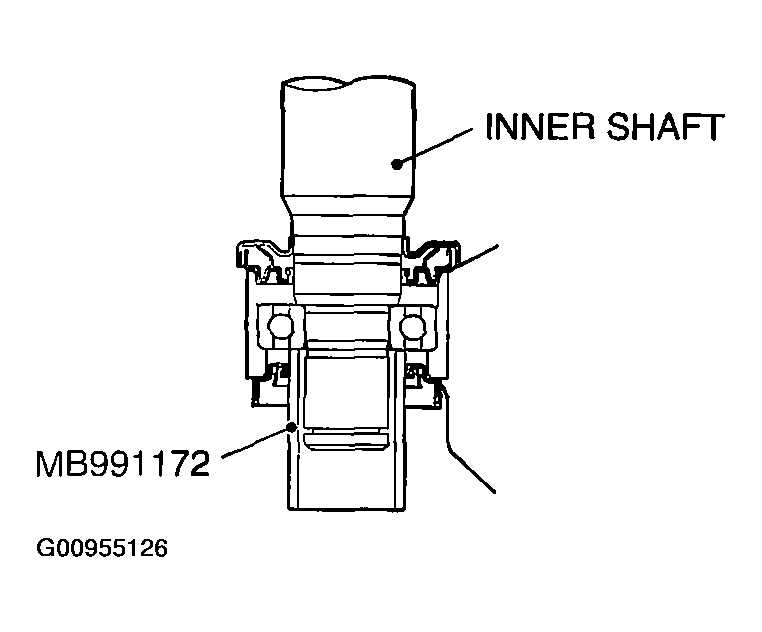

Use special tool MB991172 to hold the center bearing inner race, and then press-in the inner shaft.

Fig 1: Holding Center Bearing Inner Race With Special Tool MB991172
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

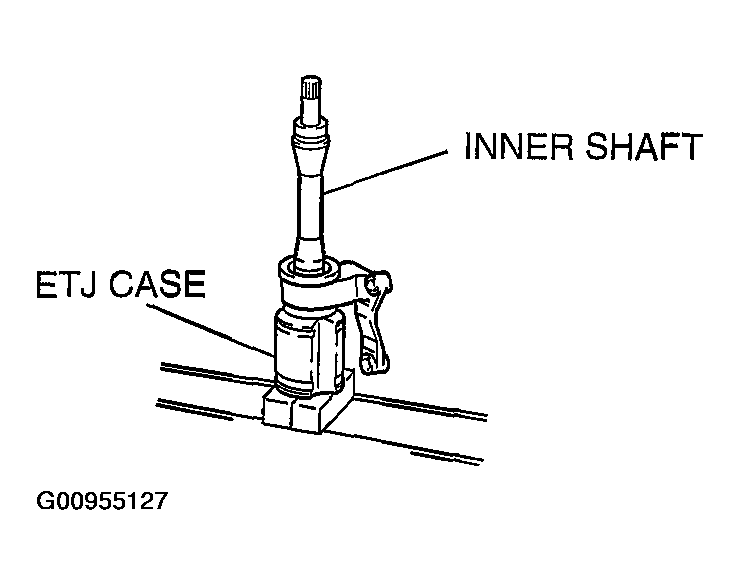

Apply repair kit grease to the inner shaft spline, then press fit it into the ETJ case.
NOTE: When press-fitting the inner shaft into the ETJ case, apply a thin coat of repair kit grease to the dust seal outer lip part and the outside edge of the ETJ axial part.

Fig 2: Installing Inner Shaft Spline
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
