Vehicles Without Center Bearing: Notes

CAUTION:
  • For vehicles with ABS, be careful not to damage the ABS rotor, which is attached to the BJ outer race during disassembly and reassembly.
  • Never disassemble the BJ assembly except when replacing the BJ boot.

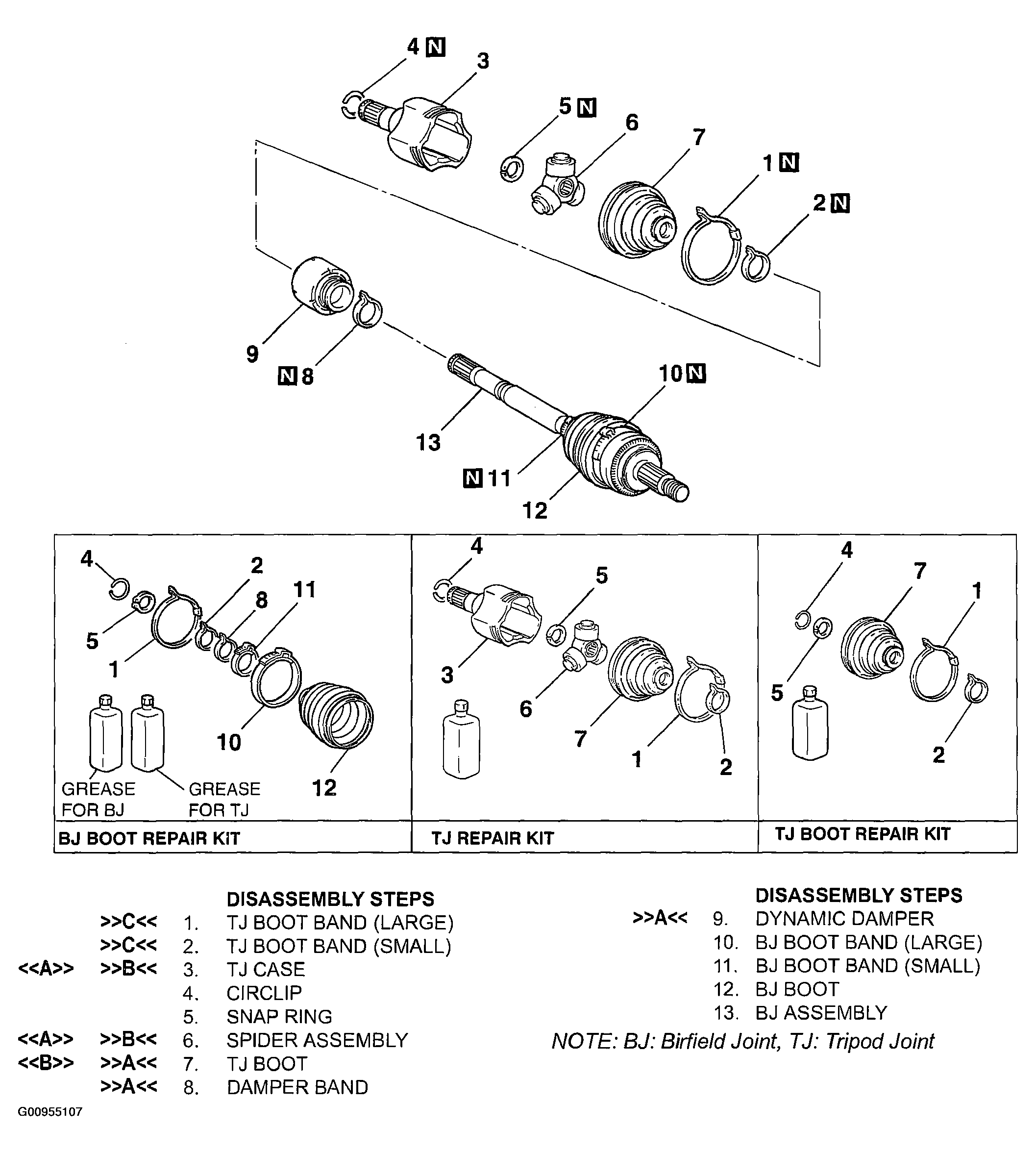

Fig 1: Exploded View Of Driveshaft Assembly (Vehicles Without Center Bearing)
G00955107Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
