<< A >> Dynamic Damper/Damper Band/TJ Boot Installation

Install the dynamic damper in the position shown in the illustration.

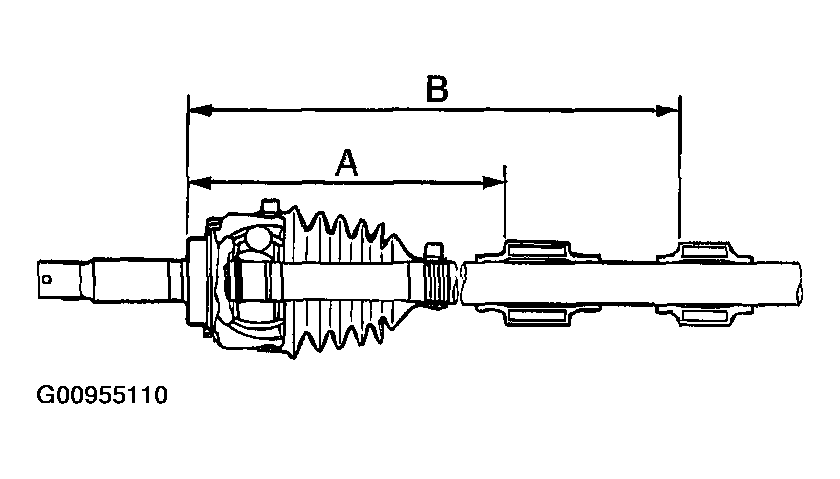

Fig 1: Installing Dynamic Damper
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

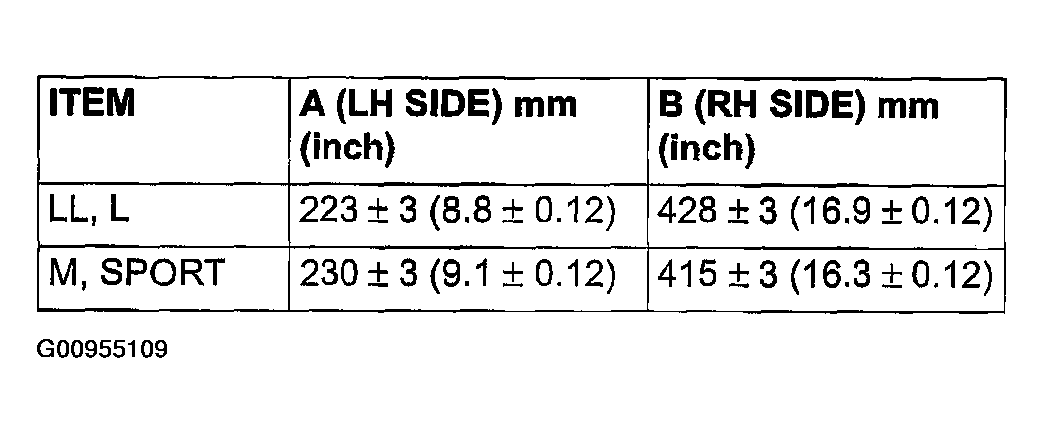

Fig 2: Dynamic Damper Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION:
- There should be no grease adhered to the rubber part of the dynamic damper.
- Be careful not to confuse the damper band with the TJ boot band (small). Locate the identification numbers stamped on the band levers.

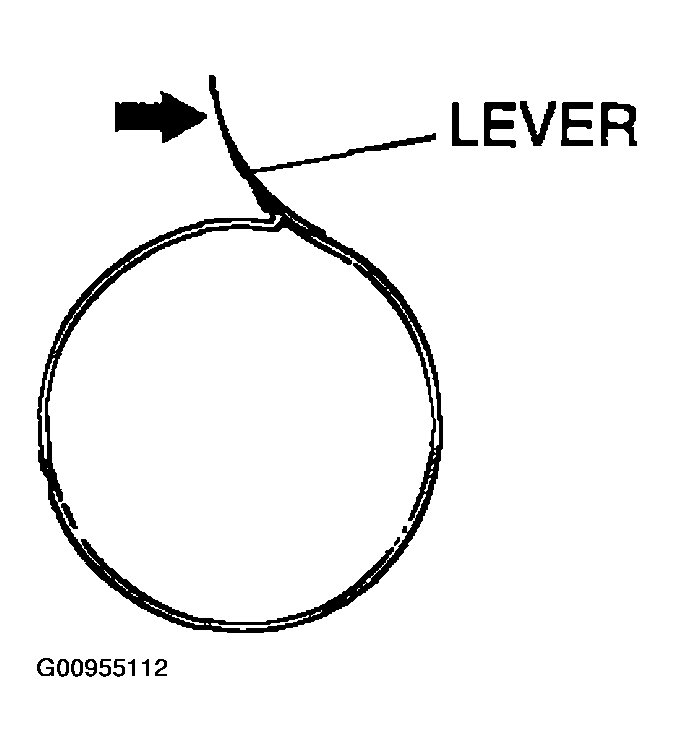

Fig 3: Identifying Band Lever
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

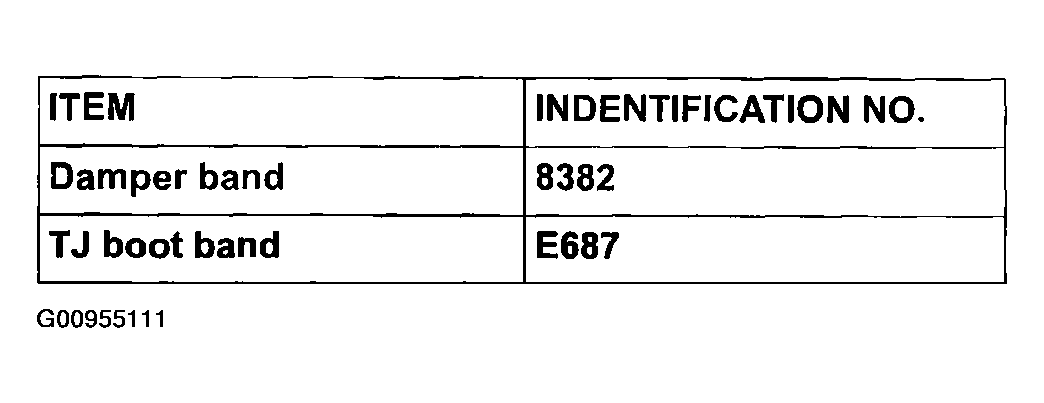

Fig 4: Band Lever Identification Numbers
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Secure the damper bands.
Wrap plastic tape around the shaft spline, and then install the TJ boot band (small) and TJ boot.
