<< B >> Washer/Driveshaft Nut Installation

CAUTION: Before securely tightening the driveshaft nuts, make sure there is no load on the wheel bearings. Otherwise wheel bearing will be damaged.
  1. Be sure to install the driveshaft washer in the specified direction.
  2. Using special tool MB990767, tighten the driveshaft nut to the specified torque
    1. Tightening torque: 245 +/- 29 N.m (181 +/- 21 ft-lb

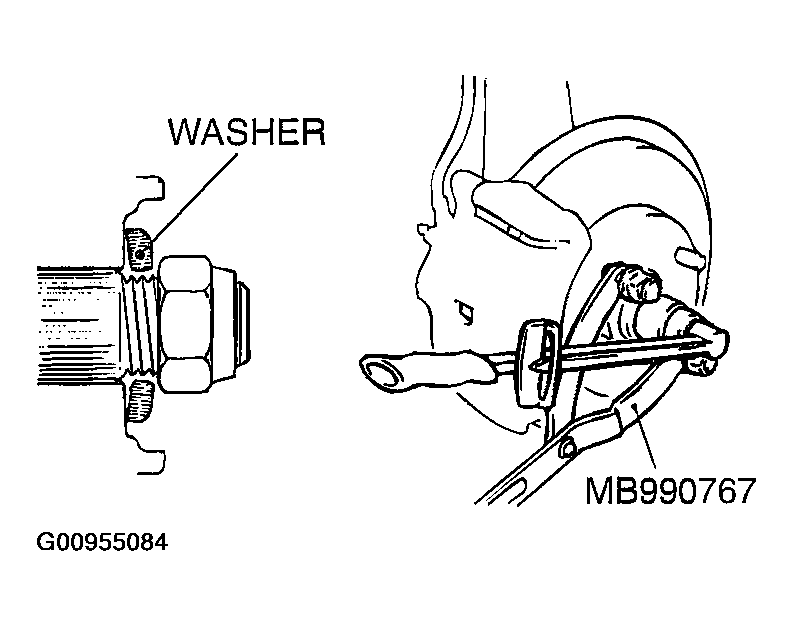

    Fig 1: Installing Special Tool MB990767
    G00955084Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
