Fuel Pump Module Disassembly And Assembly

NOTE: For removal and installation, refer to ON-VEHICLE SERVICE - FUEL PUMP (MODULE) REPLACEMENT .

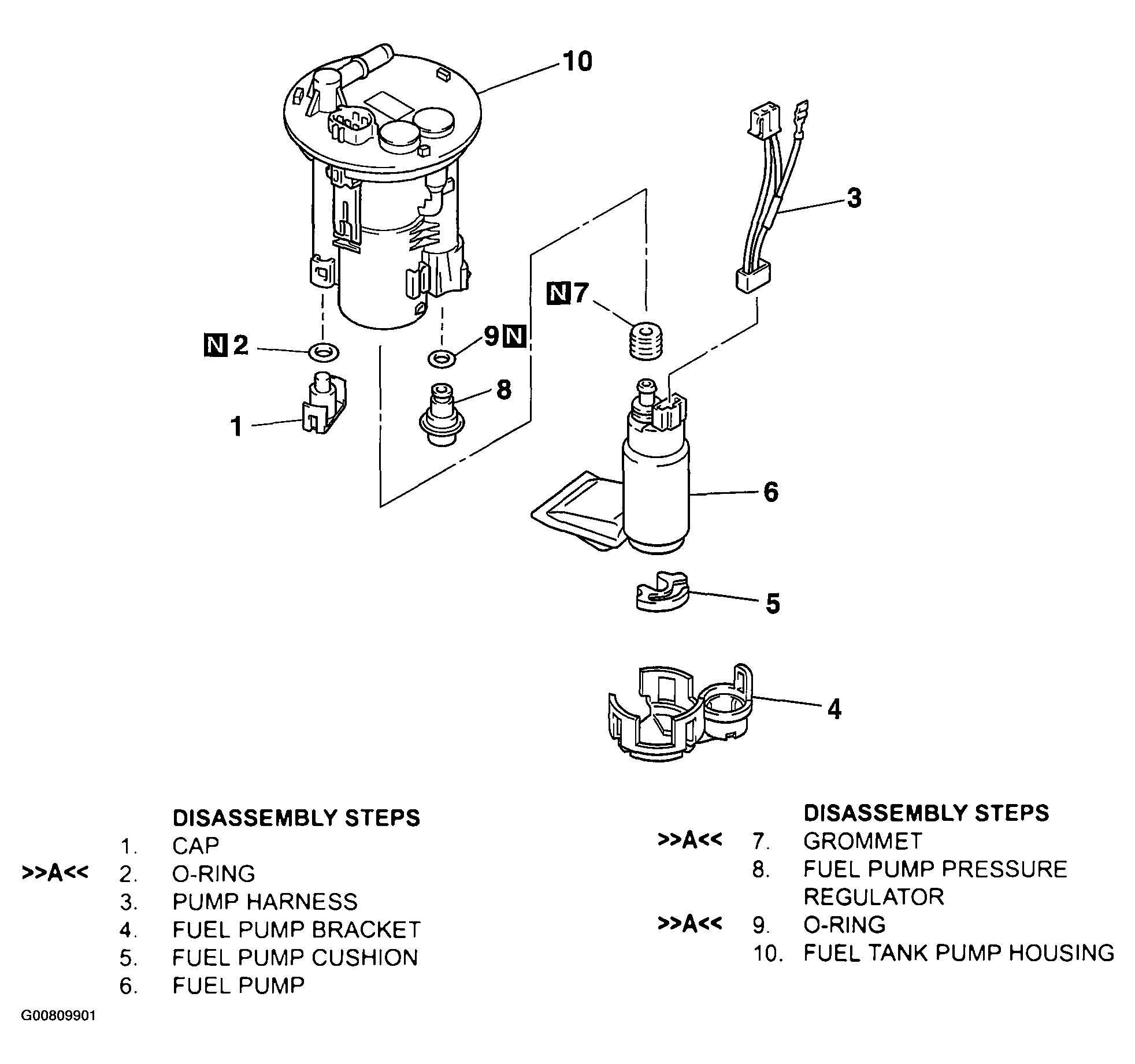

Fig 1: Disassembling And Assembling Fuel Pump Module
G00809901Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
