<< G >> Engine Assembly Supporting

< Engine hanger (special tool MB991895) is used >
1. Set special tool MB991895 (engine hanger) to the front fender assembling bolts (A and B) and radiator support upper insulator attaching bolts (C and D) as shown.

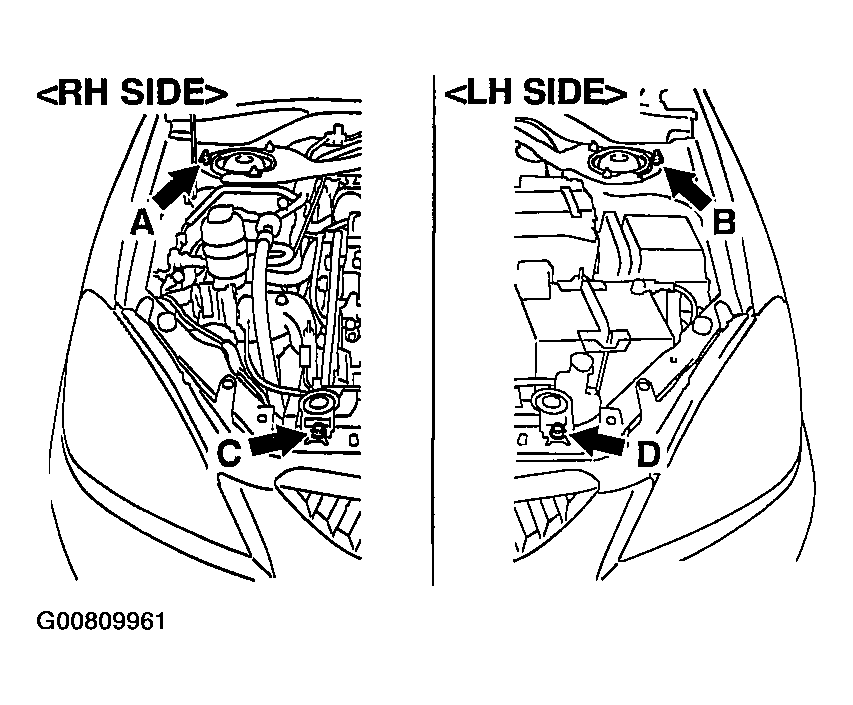

  Fig 1: Identifying Front Fender Assembling Bolts (A And B) And Radiator Support Upper Insulator Attaching Bolts (C And D)
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Set special tool MB991527 (hanger) and MB991454 (chain) to hold the engine/transaxle assembly.

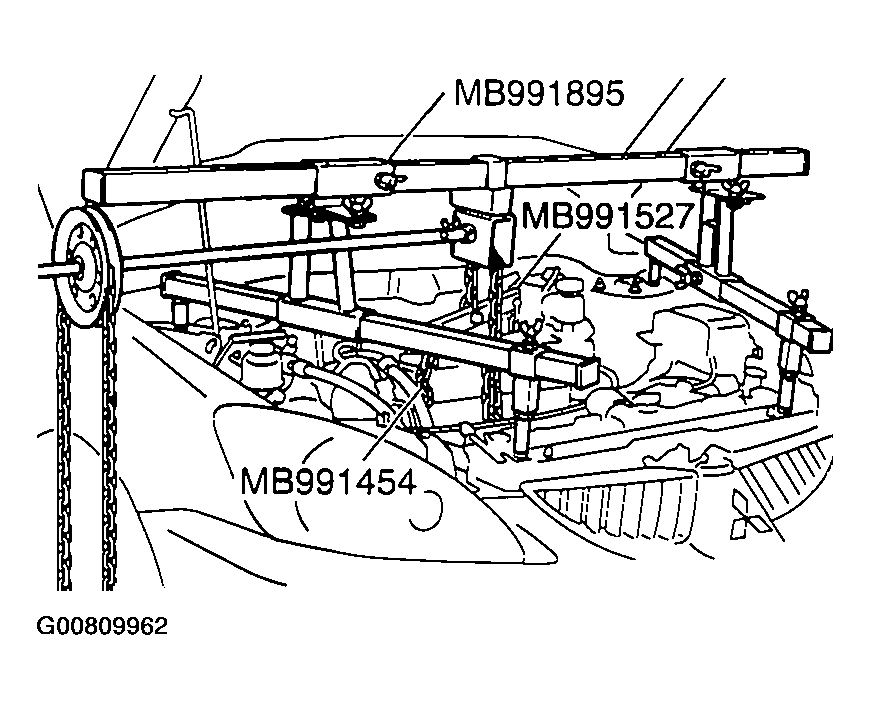

Fig 2: Setting Special Tool Mb991527 (Hanger) And Mb991454 (Chain) To Hold Engine/Transaxle Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
< Engine hanger (special tool MB991928) is used >
1. Assemble the engine hanger (special tool MB991928). Attach following parts to the base hanger.)
  - SLIDE BRACKET (HI)
  - JOINT (140) (MB991931) < FRONT SIDE >
  - FOOT (STANDARD) (MB991932) < FRONT SIDE >
  - JOINT (90) (MB991930) < REAR SIDE >
  - FOOT (SHORT) (MB991933) < REAR SIDE >

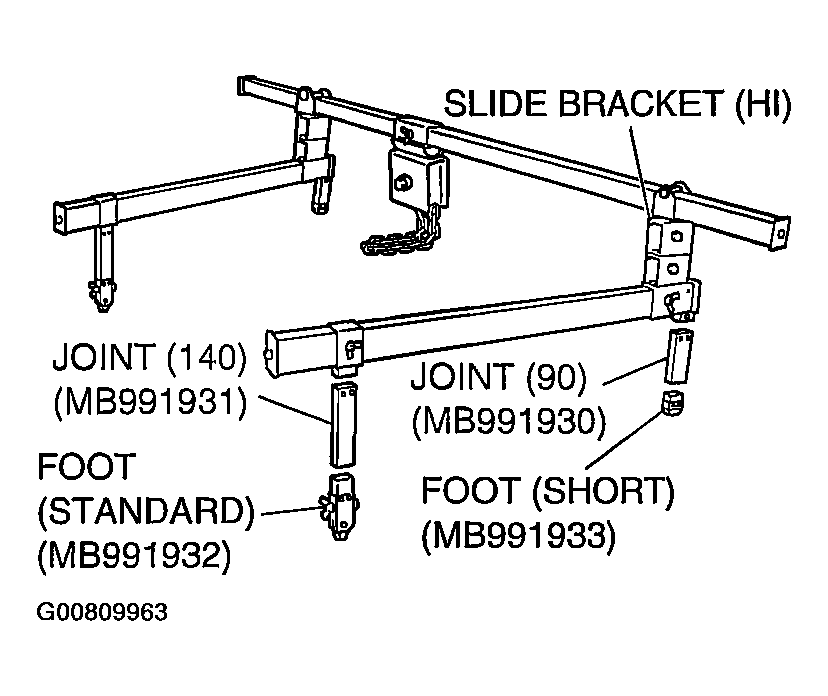

  Fig 3: Assembling Engine Hanger (Special Tool Mb991928)
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Set special tool MB991928 (engine hanger) to the front fender assembling bolts (A and B) and radiator support upper insulator attaching bolts (C and D) as shown.

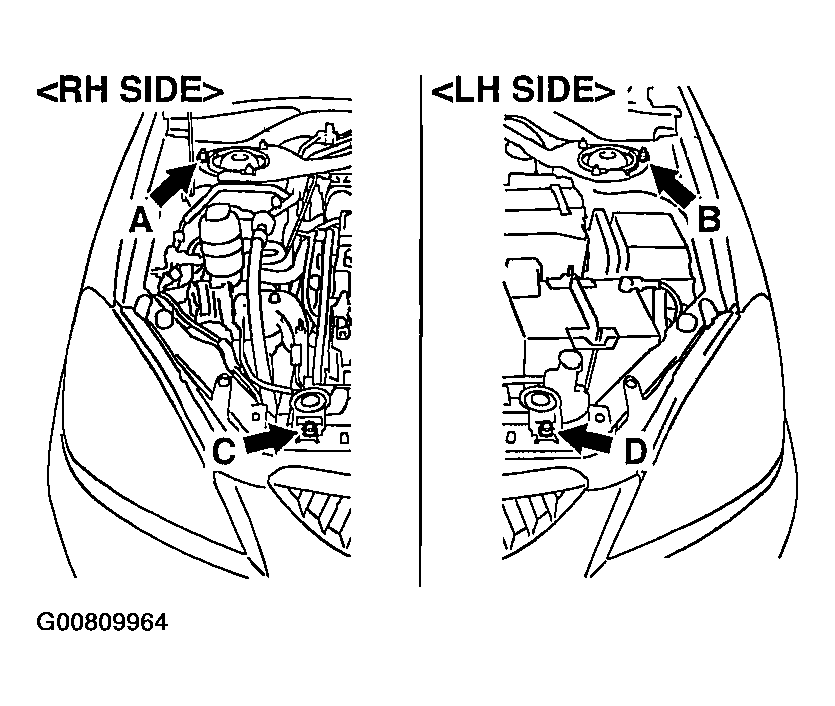

  Fig 4: Identifying Front Fender Assembling Bolts (A And B) And Radiator Support Upper Insulator Attaching Bolts (C And D)
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Position special tool MB991527 (hanger) and MB991454 (chain) to hold the engine/transaxle assembly.
  NOTE: Adjust the engine hanger balance by sliding the slide bracket (HI).

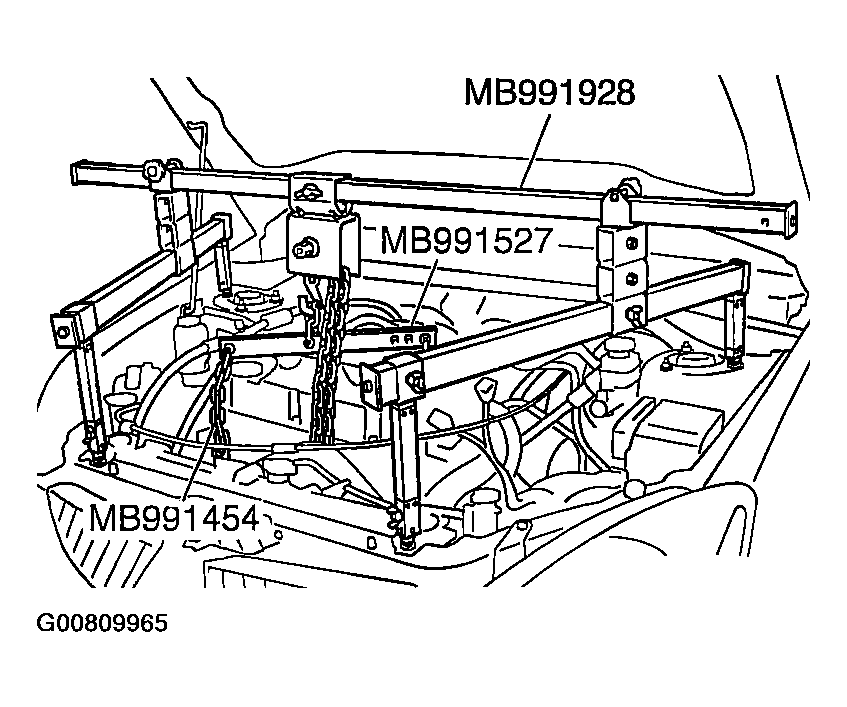

Fig 5: Positioning Special Tool MB991527 (Hanger) And MB991454 (Chain) To Hold Engine/Transaxle Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
