>>E<< Lock Pin Installation

Drive the lock pin in from the direction shown in the figure.

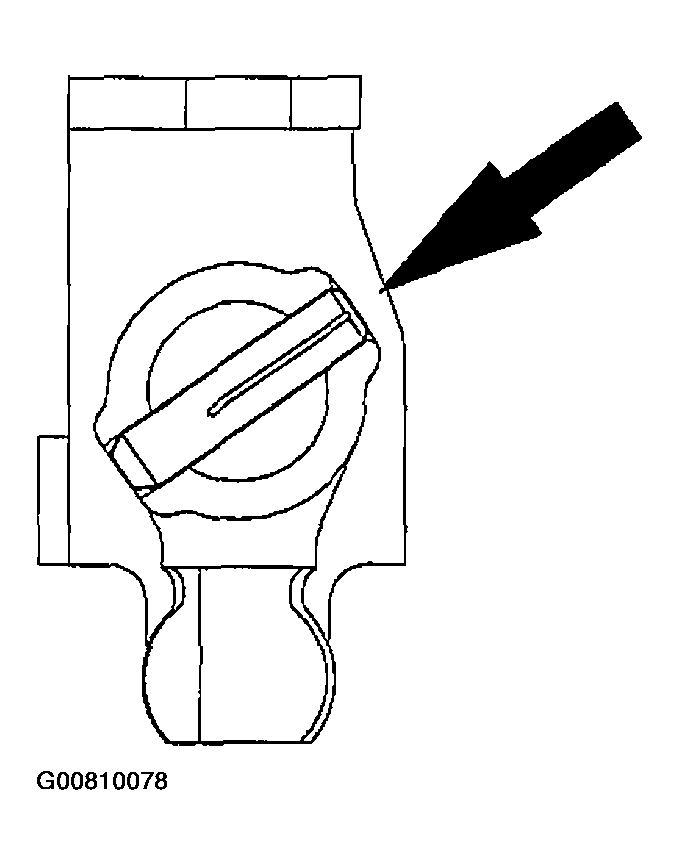

Fig 1: Driving Lock Pin
G00810078Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
